YXD-100 150 photoelectric electric contact pressure gauge

YXD-100 150 photoelectric electric contact pressure gauge

If you have any questions, please contact us!
Contact Us

◎Applications

It is Applicable to special places of all kinds of working conditions, through the control circuit, the high sensitive relay output, the meter is with high sensitivity, rapid response, high control precision, without delay and jumping phenomenon.

◎Specifications

Model

YXD-100F/150F

Dial Diameter

100mm 150mm

Measuring Range

Between -0.1~0~60MPa

Pressure Unit

Mpa psi bar kg/cm2 etc. (single or double scale both available)

Accuracy Class

±1.5%

Case Material

SUS304

Movement

Stainless Steel

Bourdon Tube

316L

Connector

304 or 316L can choose

Mounting Type

Bottom

Pointer

Aluminum black

Over-pressure

30%

Thread

M20*1.5 G1/2 ZG1/2 NPT1/2 G3/8 ZG3/8 NPT3/8 etc.
(We can accept all kinds of thread from customers)

Ingress Protection

IP65

Using Temp

-40~70°C≤85%

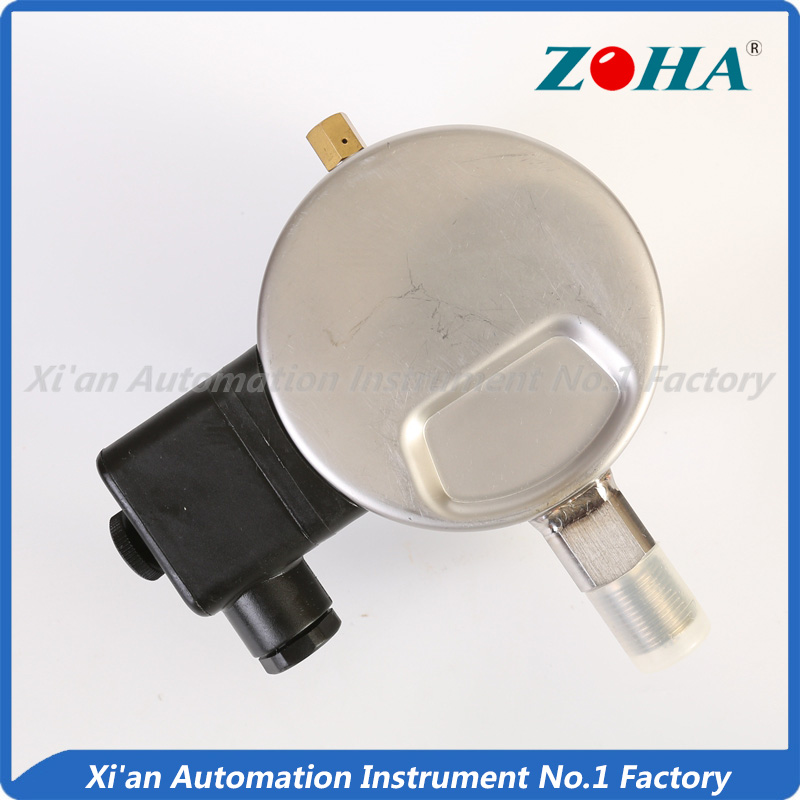

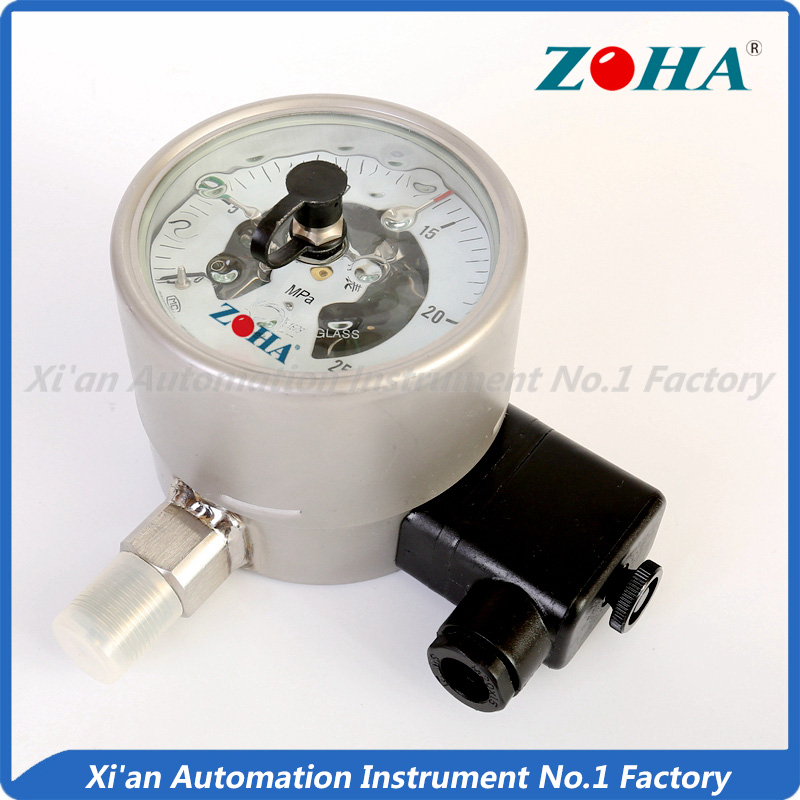

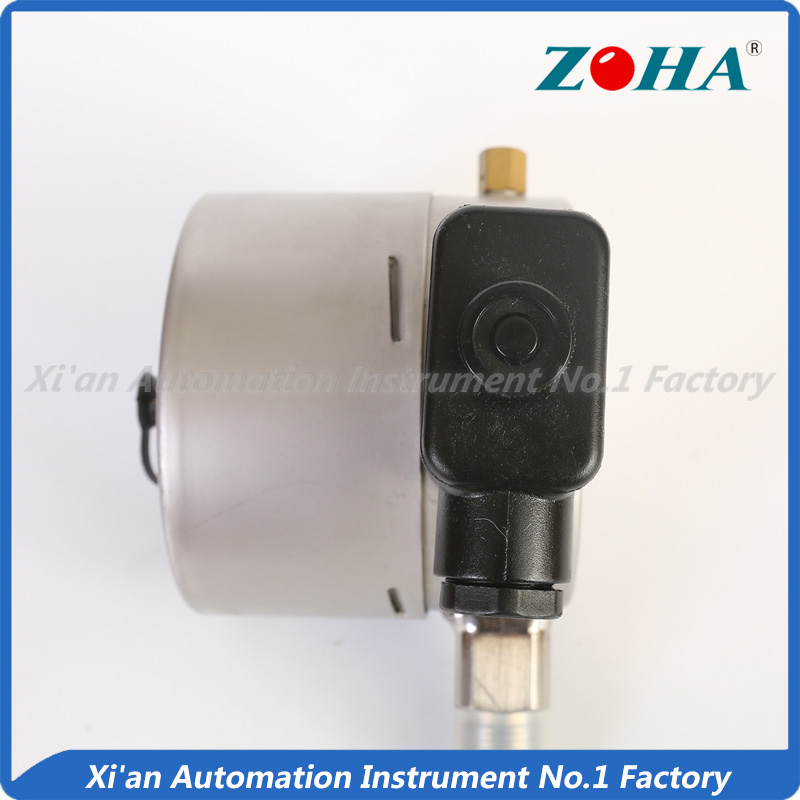

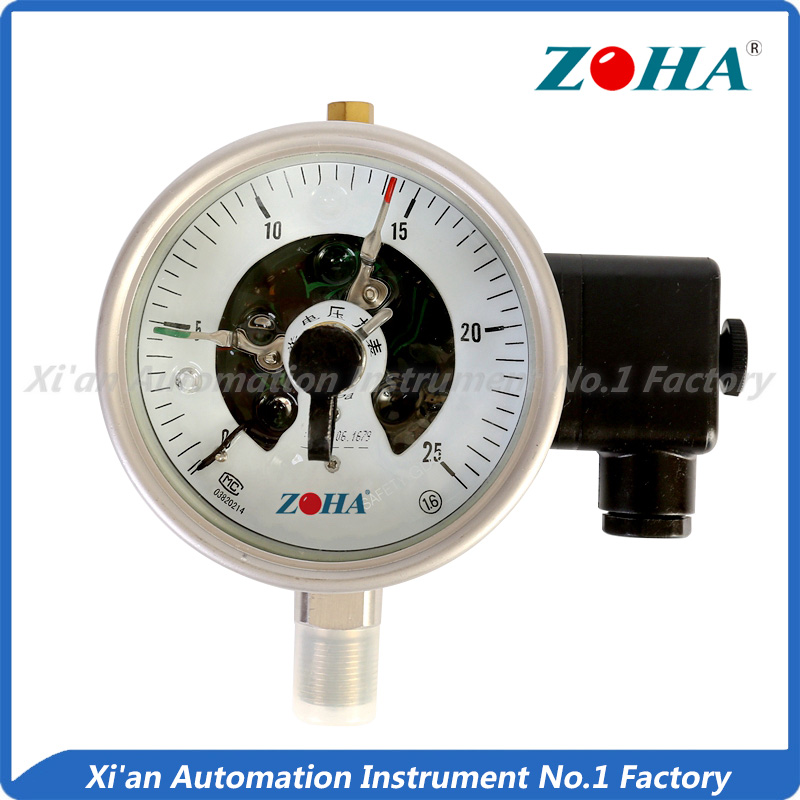

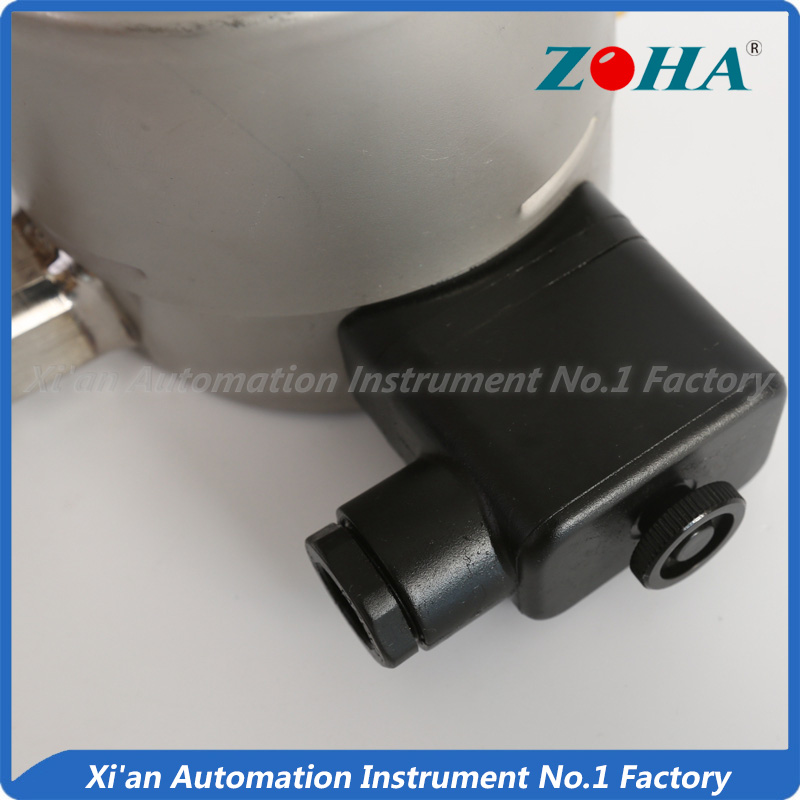

  • Product pictures
