YEJ rectangle capsule pressure

YEJ rectangle capsule pressure

If you have any questions, please contact us!
Contact Us

◎Applications

YEJ-101 rectangle capsule pressure gauge is suited for measuring the pressure of the gases which will neither explode nor corrode the copper alloys.
YEJ-121 rectangle capsule pressure gauge with electric contact is suited for measuring the pressure of the gases which will neither explode nor corrode the copper alloys. And have the function of two location adjusting, which can adjust and send out alarm if the pressure reach or exceed the limit.

◎Specifications

Type&Code

Rectangle capsule pressure gauge (YEJ-101)
Rectangle capsule pressure gauge with electric contact (YEJ-121)

Measuring Range(KPa)

0~250 -250~0 -120~120
0~400 -400~0 -200~200
0~600 -600~0 -300~300
0~1000 -1000~0 -500~500
0~1600 -1600~0 -800~800
0~2500 -2500~0 -1200~1200
0~4000 -4000~0 -2000~2000
0~6000 -6000~0 -3000~3000
0~10000 -10000~0 -5000~5000
0~16000 -16000~0 -8000~8000
0~25000 -25000~0 -12000~12000
0~40000 -40000~0 -20000~20000
0~60

Accuracy Class

cl.2.5


Type&Code

2kg (YEJ-101), 2.5kg (YEJ-121)

Pressure port

Φ8 (match inner Φ6 tube)

YEJ-121
electric data

Setting error: <2.5% of full range

Output capacity: alternative loading 3A 220V

Working power: AC 220V
Consuming power: <5W

ENV Temp and
Relative Humidity

YEJ-121:0~50°C, ≤85% YEJ-101:-20~60°C, ≤85%

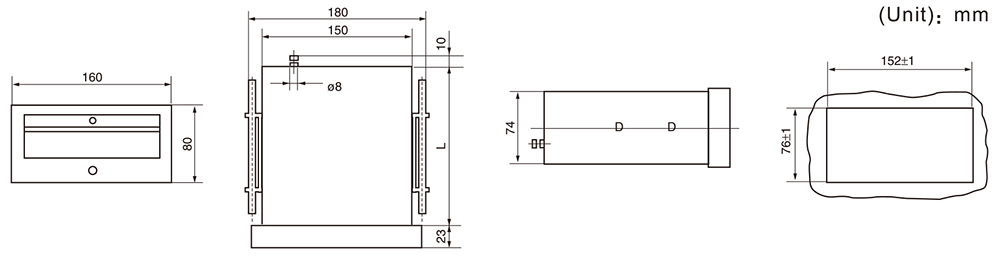

◎Overall Dimensions


101 Type
121 Type
L
160
250

◎Connection Chart

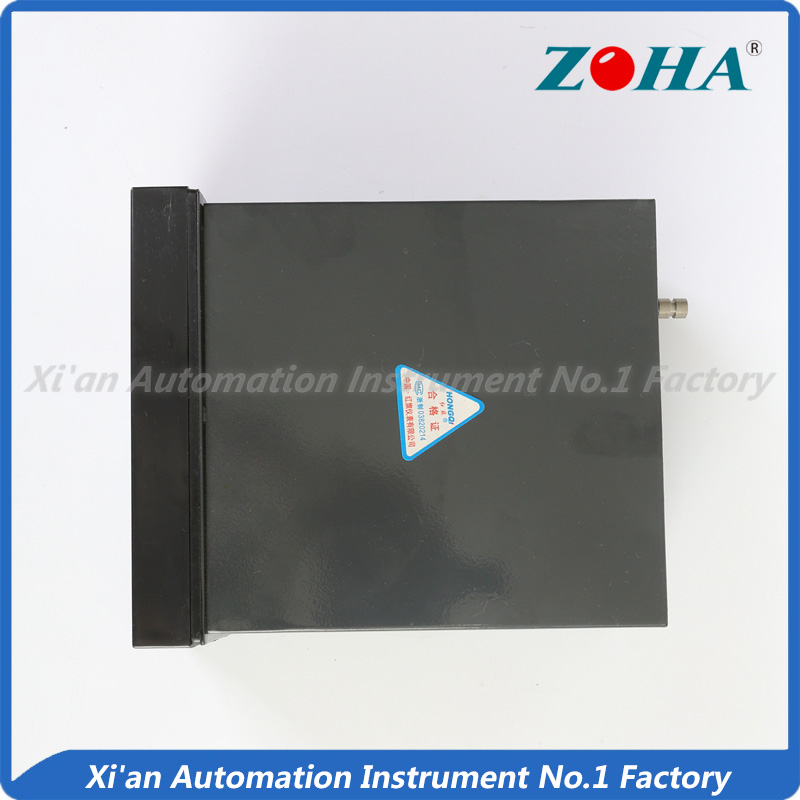

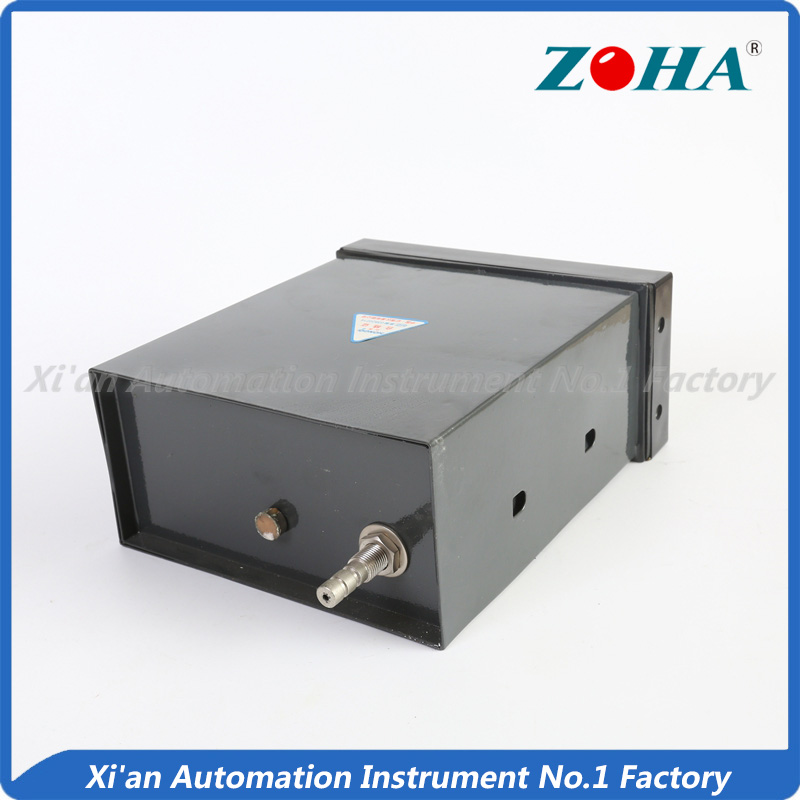

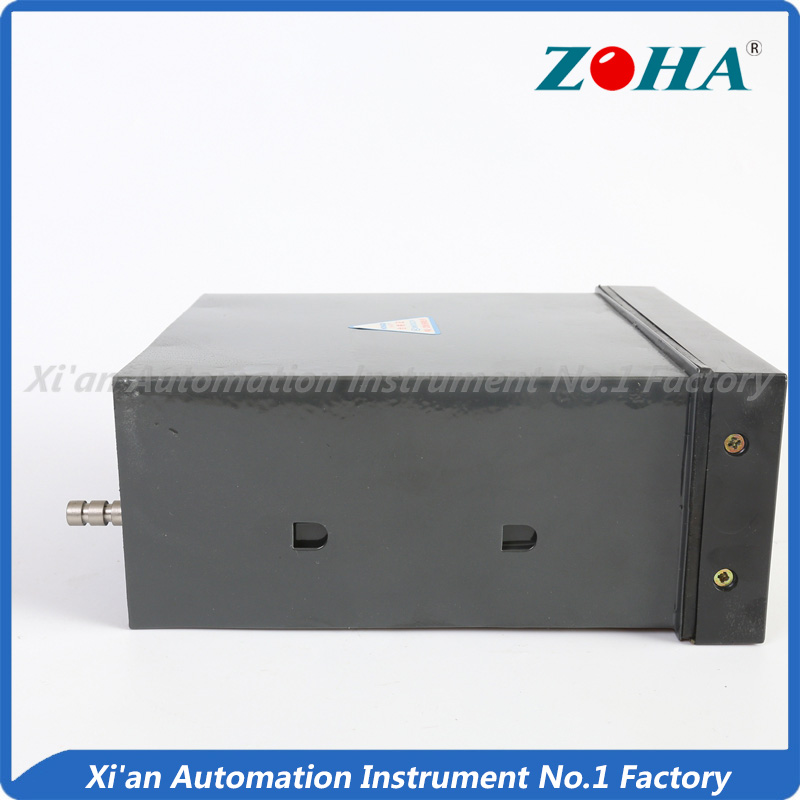

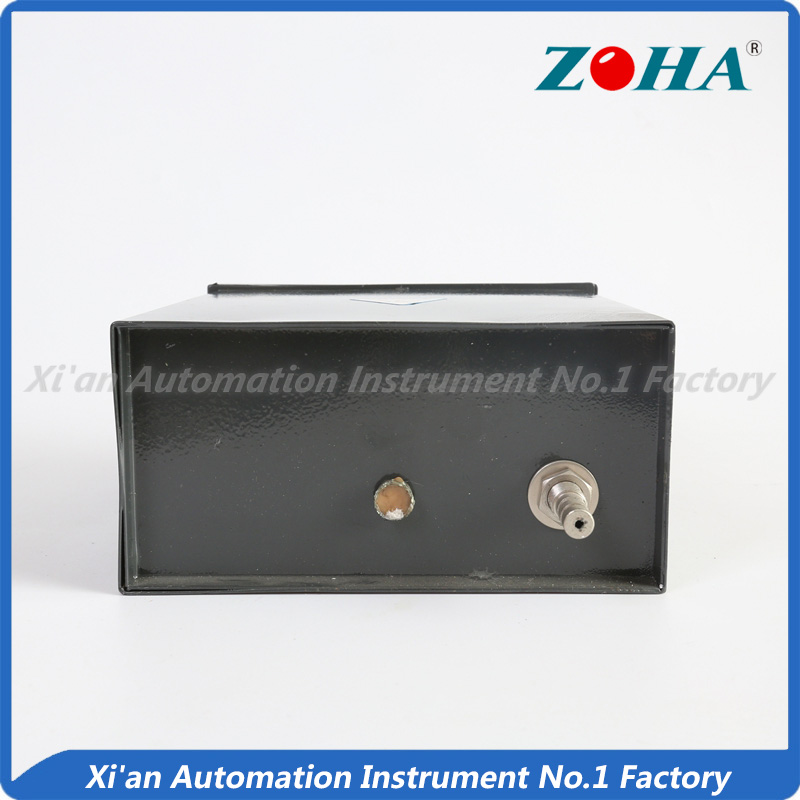

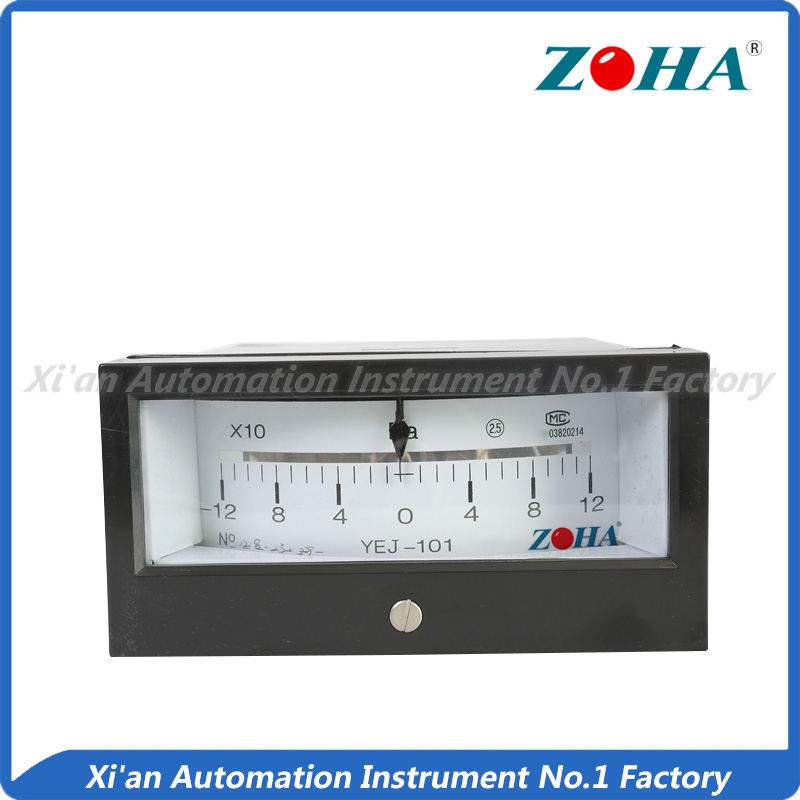

  • Product pictures
