◎Application

Bi-metal thermometer is a measuring gauge which used bi-metal piece as sensor part. Widely used in machinery, chemical textile, medicine, foodstuffs, vessel for measuring and controlling the temperature.

◎Specifications

Product name

Back mounting Bi-metal thermometer

Measuring range

- 60~600°C (Between this range, as customers requirements.)

Diameter

63mm 80mm 100mm 150mm
(we also can make other size, when customers have requirements.)

Stem length

46mm 50mm 64mm 100mm 150mm 200mm 250mm 300mm 350mm or longer
(we also can make other length, when customers have requirements)

Stem diameter(mm)

Φ6Φ8Φ10

Case Material

Stainless steel or Chrome steel or Aluminum

Ring

Stainless steel or Chrome steel or Aluminum

Stem Material

Brass or Stainless steel

Thermowell

Brass or Stainless steel or no thermowell

Thermowell thread

G1/2 (other thread is also allowed)

Stem thread

G1/2 G1/4 (other thread or no thread is also allowed)

Mounting type

Back

Lens

Glass

Dial

Aluminum-white

Pointer

Aluminum-black

Zero adjustment

With adjustment/ no adjustment

Accuracy

1.5% 2.5%

Special requirements from customers are acceptable

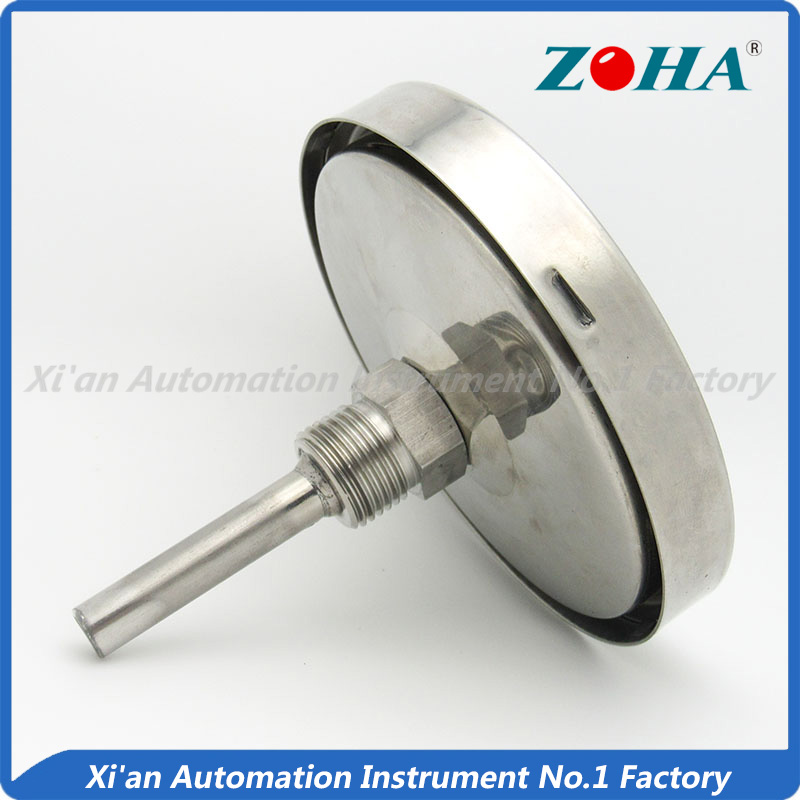

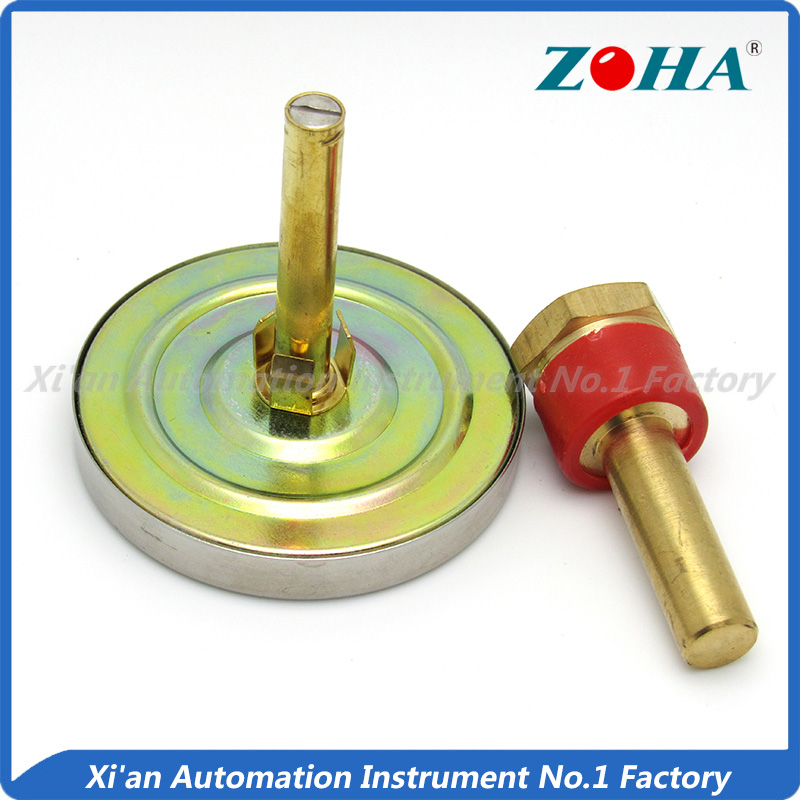

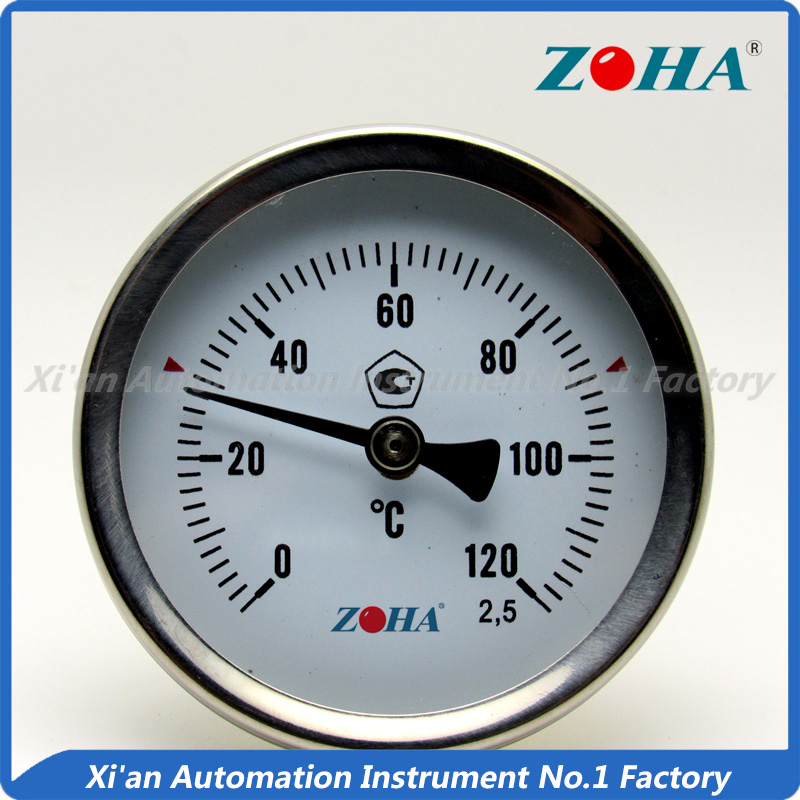

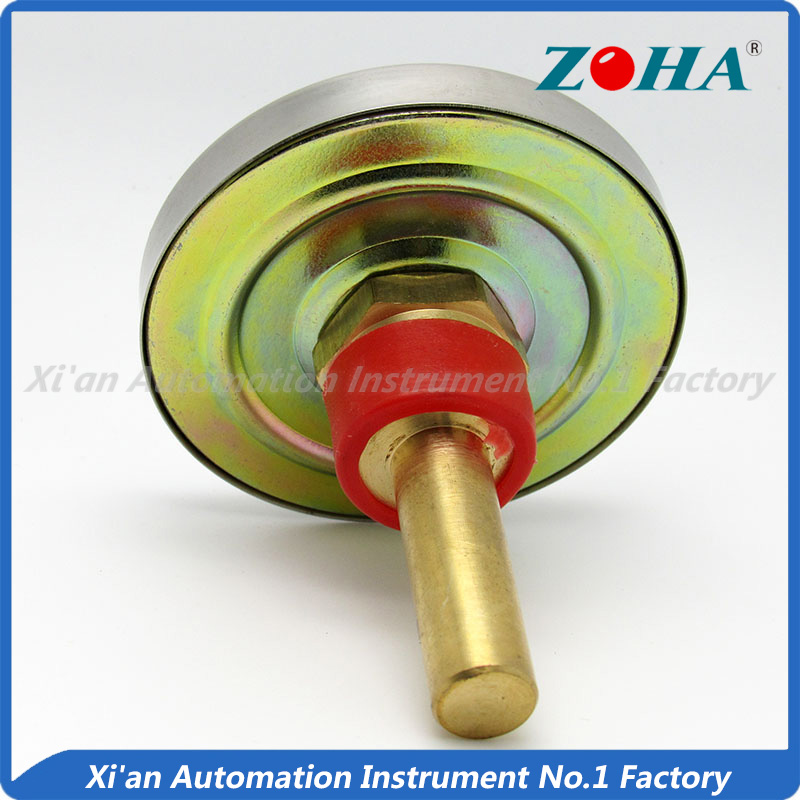

  • Product pictures
