YTP series hygeian diaphragm pressure gauge

Product Center

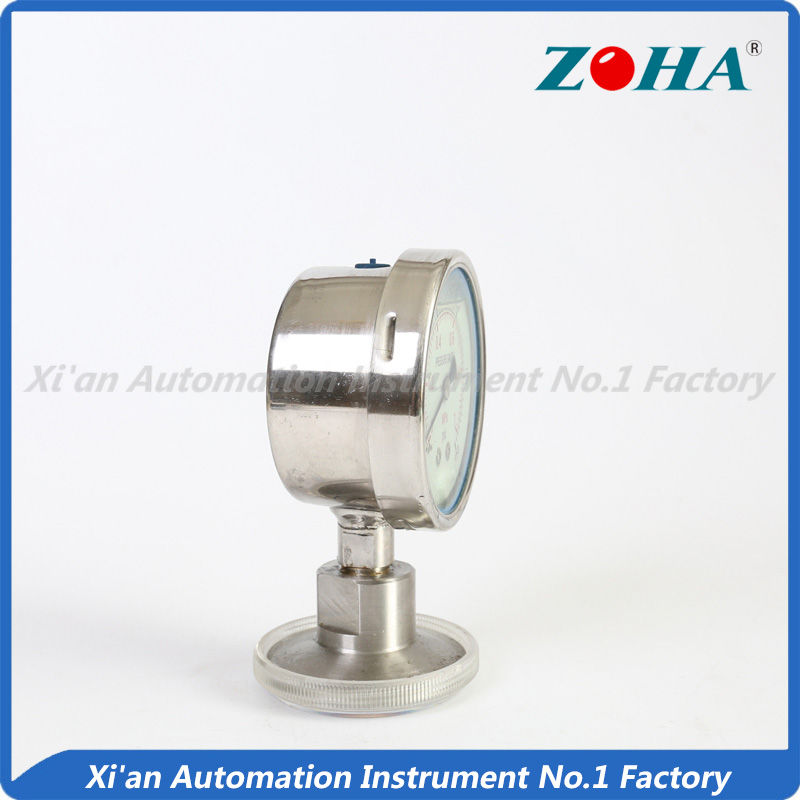

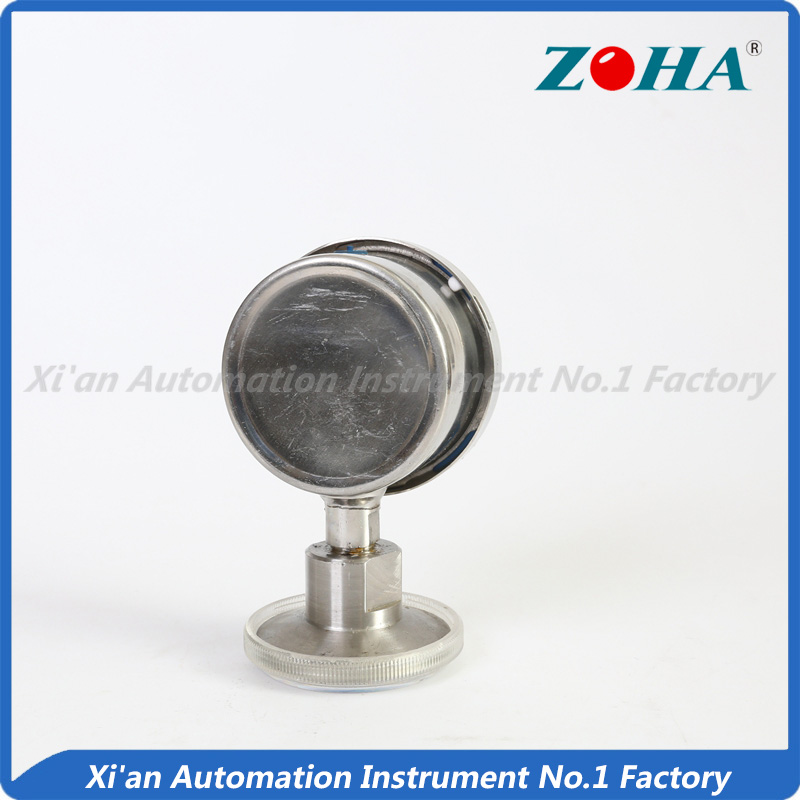

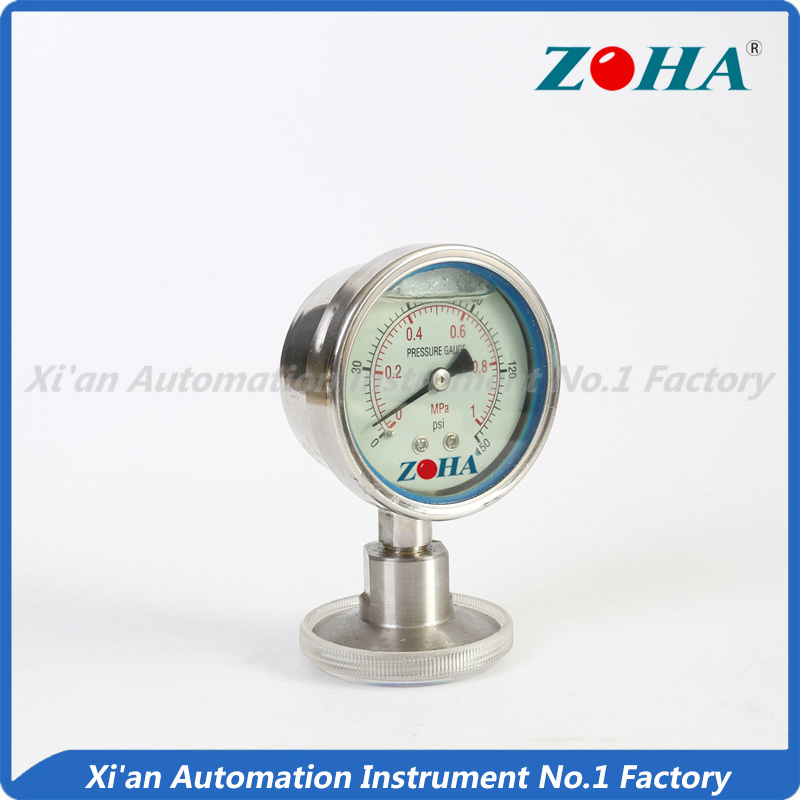

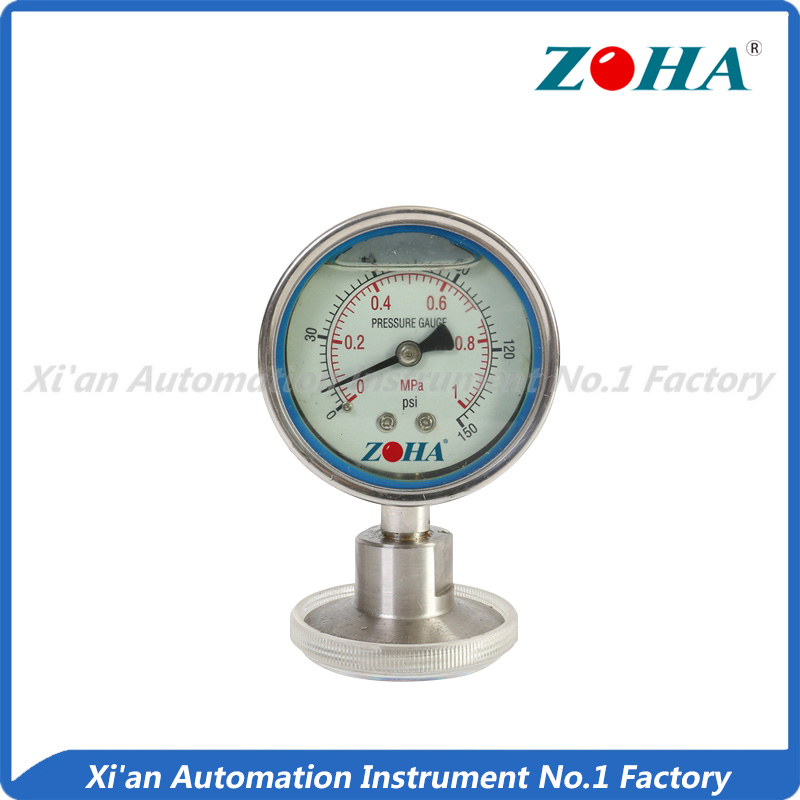

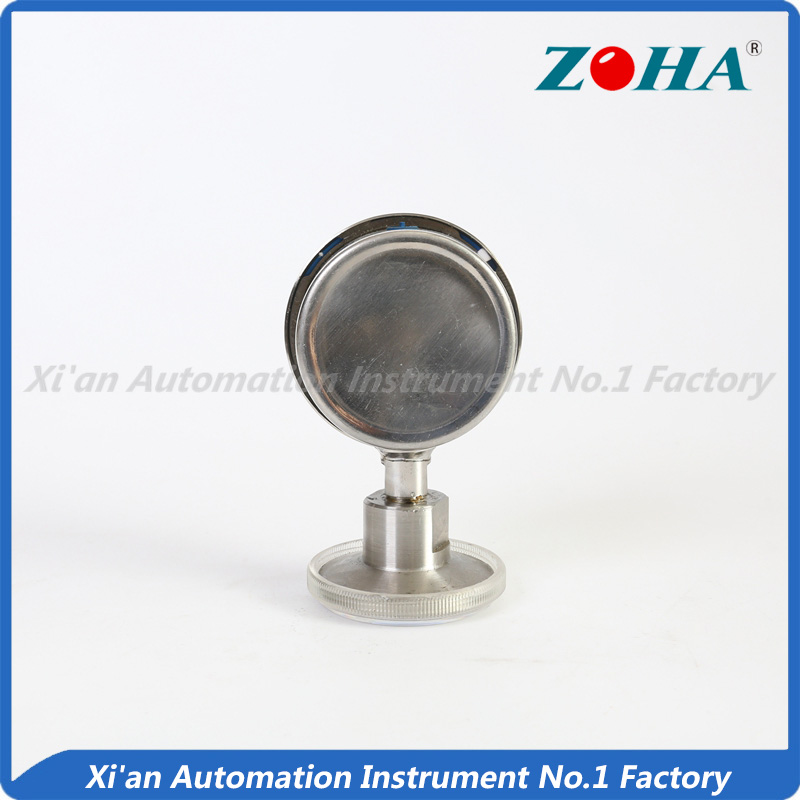

YTP series hygeian diaphragm pressure gauge

YTP series hygeian diaphragm pressure gauge

If you have any questions, please contact us!
Contact Us

◎Application Description

This gauge is the systemic diaphragm pressure gauge, which is made up of the universal pressure gauge and the isolator. Convenient to install and dismantle on the spot , it's easier to clear up, unpolluted and safe, and also it can meet the requirement of the GMP in the pharmaceutical manufacture. It's widely used in the medicine industry, which have the requirement to hygiene in the technical processing.

◎Main Technology Data

Type Type The upper limit(MPa)
With glycerin filled pressure gauge Match with St.st pressure gauge
YTN-60/MC Y-60B/Z/MC MC Clip hoop type 0.6~2.5 (flange1 ½")
YTN-100/MC Y-100B/Z/MC 0.4~2.5 (flange 2")
YTN-100/MN Y-100B/Z/MN MN Nut type 0.4~2.5
YTN-100/MH Y-100B/Z/MH MH Rectangle flange type 10~60

Attention:

1、consumer can select other type universal pressure gauge, please consult with us when order it.
2、The connection type of the pressure gauge and the diaphragm setting also can be selected. Please consult with us when order it.

The corrosive-proof characteristic of diaphragm pressure gauge
It is guaranteed by diaphragm, flange and gasket which are suitable chosen.
Diaphragm material: 316, 316L
Flange material: 316, 316L
Gasket material: silicon rubber, PVC.
Sealed liquid:
For safety and reliability, we should choose suitable sealed liquid according to different use.

◎The flange size of diaphragm setting

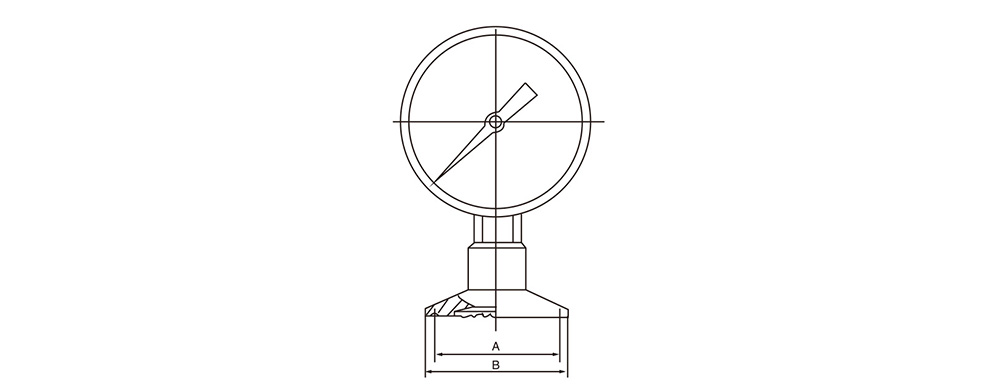

1、Clip hoop type diaphragm isolator [code MC] (Unit):mm

Flang size A B
1 1/2″
43.5 50.5
2″ 56.5 64.0

Option (accond with standard ISO-2852)

① Clip hoop1 1/2、2″

② Pipe connector 1 1/2、2″

③ Sealing gasket (material: silicon rubber PTFE)

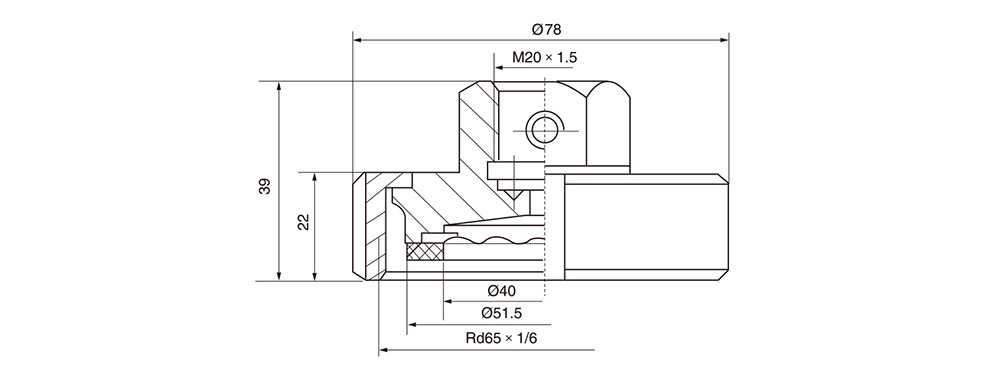

2、Nut type [code MN]

The material of the diaphragm and its seat:0Cr17Ni12Mo2 [316]

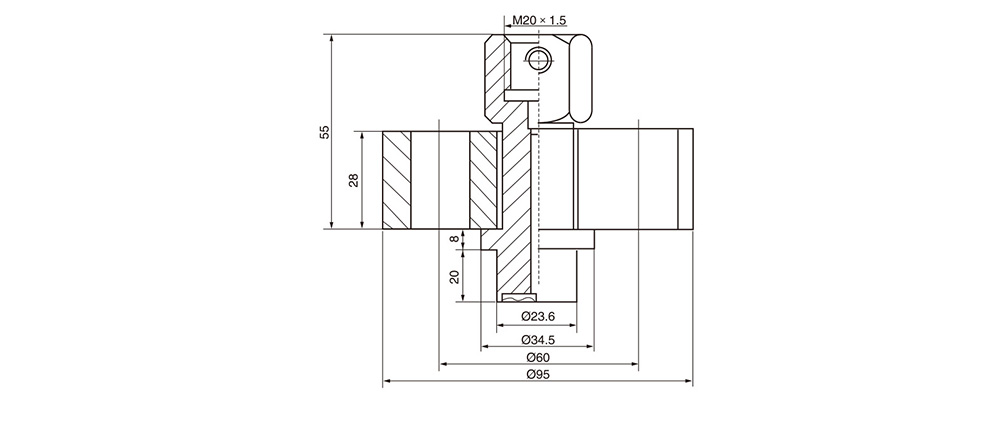

3、Rectangle flange type diaphragm isolator[code MH]

The material of the diaphragm and its seat:0Cr17Ni12Mo2 [316]
