◎Applications

It is applied to the occasions which must choose the Safety Pressure Gauge with laminated safety glass.

◎Specifications

Product

Safety pressure gauges

Model

YTQ-100BF/150BF

Diameter

100mm 150mm

Accuracy

1.0% or 1.6%

Measuring range

0~0.1......100MPa,

other unit is allowed

Connection thread

M20*1.5 G1/2 ZG1/2 NPT1/2 G3/8 ZG3/8 NPT3/8

Case material

SUS304

Movement

SS

Bourdon Tube

316L

Connector

304

Ingress Protection

IP65

Mounting type

Bottom direct mounting

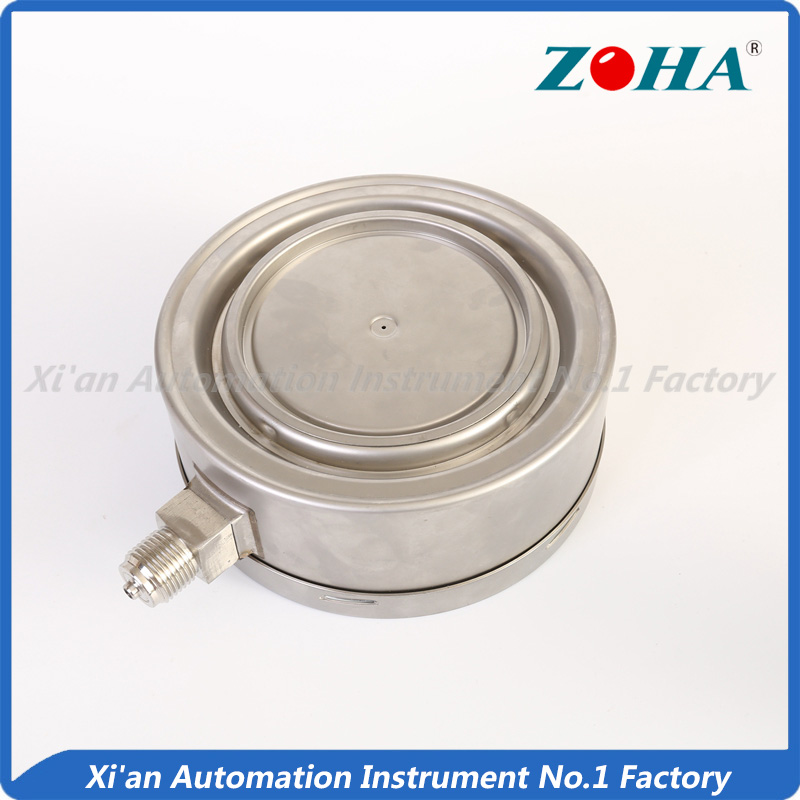

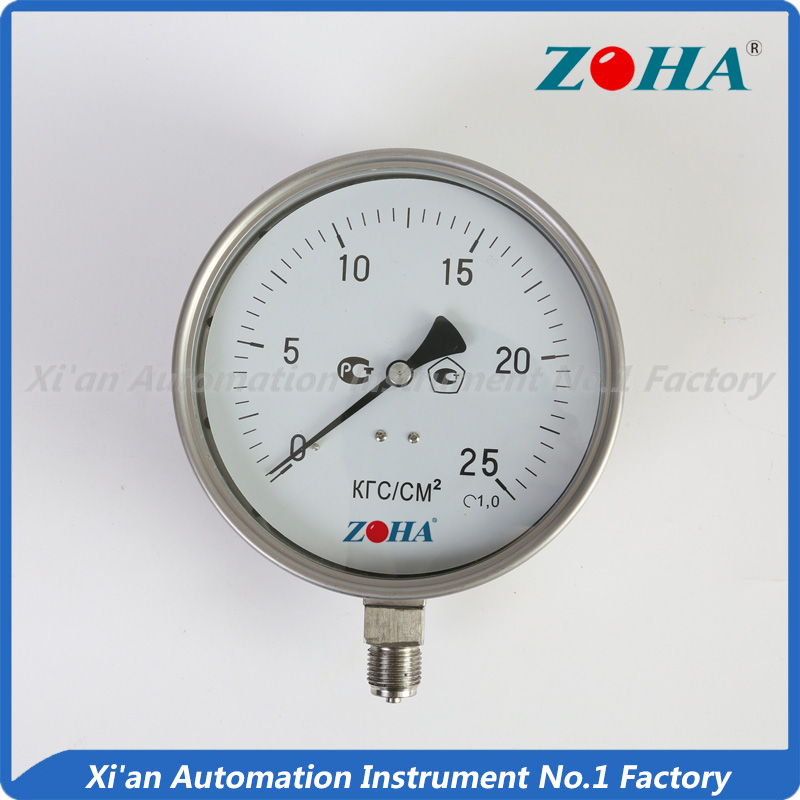

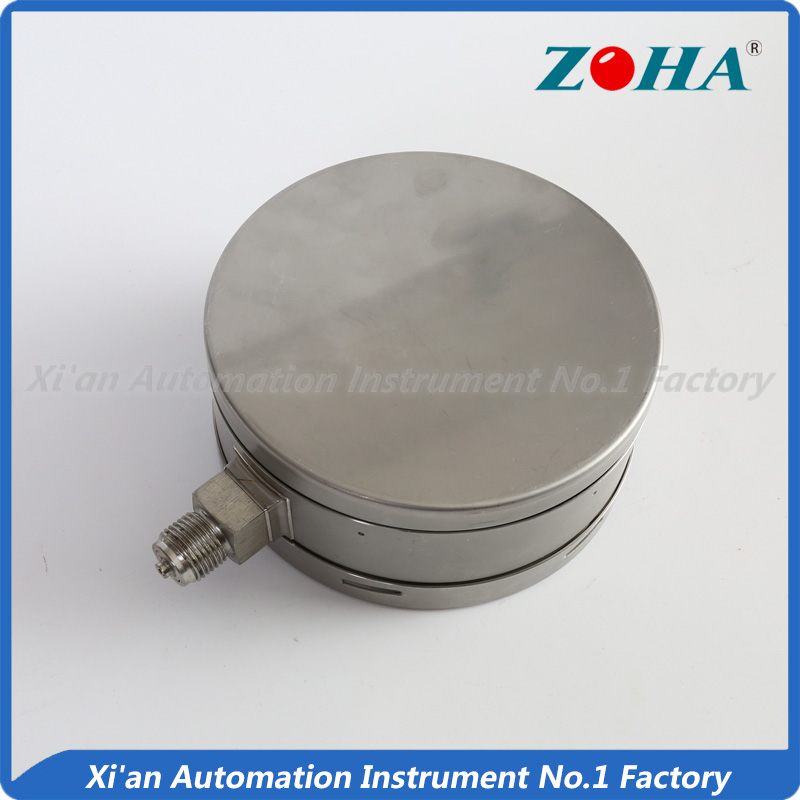

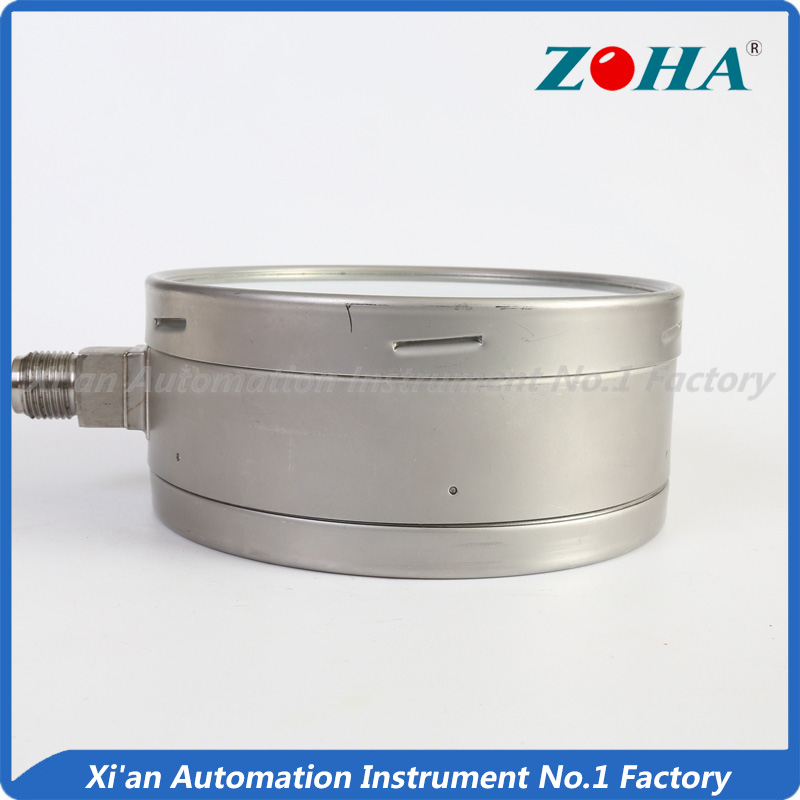

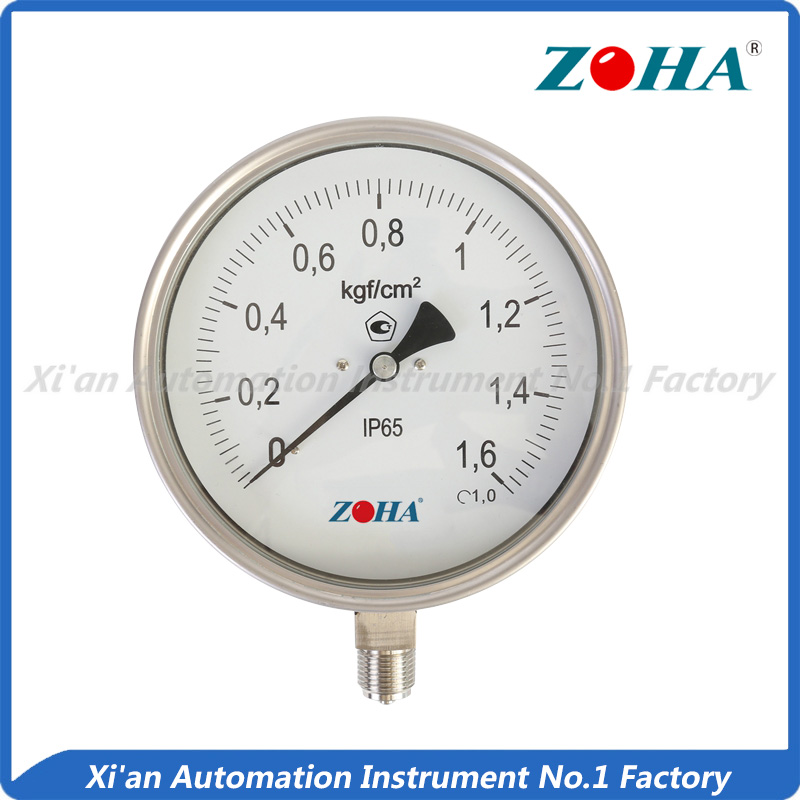

  • Product pictures
