◎Application description

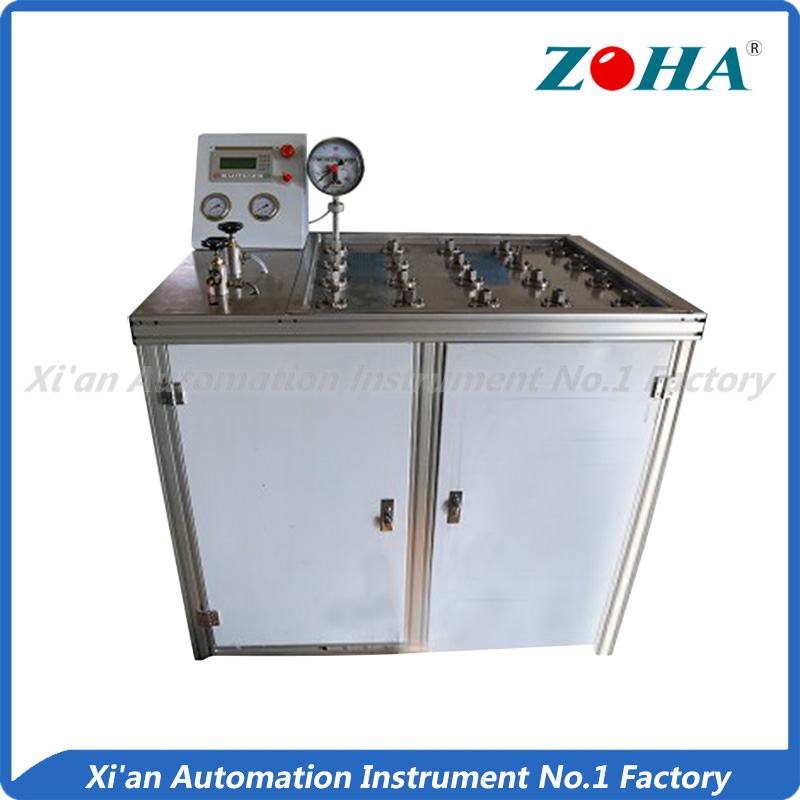

PLJ-01 is the latest intelligent semi-automatic Pressure Alternating Fatigue Machine. It uses  the Micro-computerized Controller, which is easy operation, stability, low noise. It has the function of working pressure automatic compensation, fatigue specification and fatigue time store automatically, diagnostic testing automatically, overpressure protection, halt alarm, ect. It is the ideal product for pressure instruments produce enterprises, measurement institutions and pressure instruments using institutions.

◎Main technology data

Working medium: No.46 hydraulic oil AW

Pressure range:(0-100)MPa

Impulse frequency: 30-60 times

Timekeeping range: 0-10000H

Pressure connectors: 20 or as requirements

Working power: 220V50Hz  380V50Hz

Dimension: 1150*950*750(mm)

◎Specification

Type

upper limit ±5%

lower limit ±5%

Frequency

10MPa

12 MPa

4 MPa

45times/Min

25 MPa

19 MPa

6 MPa

45times/Min

40 MPa

30 MPa

10 MPa

40times/Min

60 MPa

45 MPa

15 MPa

30times/Min

100 MPa

80 MPa

20 MPa

30times/Min
