◎ Applications

Stainless steel pressure gauge is widely used in oil industry, chemical industry, chemical fiber industry, metallurgical industry, power station and so on. It can measure the pressure of all kinds of liquid medium in technological process which has higher requirement of corrosion-proof and anti-vibration.
We have wika bayonet type, common bayonet type and roll-off type for your choice.It can directly bottom mounting.

◎Specifications

Dial Diameter

40mm 50mm 63mm 100mm 150mm 200mm 250mm

Measuring Range

Between -0.1~0~100MPa

Pressure Unit

Mpa psi bar kg/cm2 etc. (single or double scale both available)

Accuracy Class

±2.5% ±1.5%±1.0%

Case Material

SUS304

Movement

Stainless Steel

Bourdon Tube

316L

Connector

304 or 316L can choose

Mounting Type

Bottom

(Back, Bottom with flange or Back with flange are available)

Pointer

Aluminum black

Over-pressure

30%

Thread

M20*1.5 G1/2 NPT1/2 G1/4 NPT1/4 G1/8 NPT1/8 etc.
(We can accept all kinds of thread from customers)

Ingress Protection

IP65

Oil Filled

Dry or oil filled (glycerin oil/silicone oil)

Using Temp

-40℃~200℃

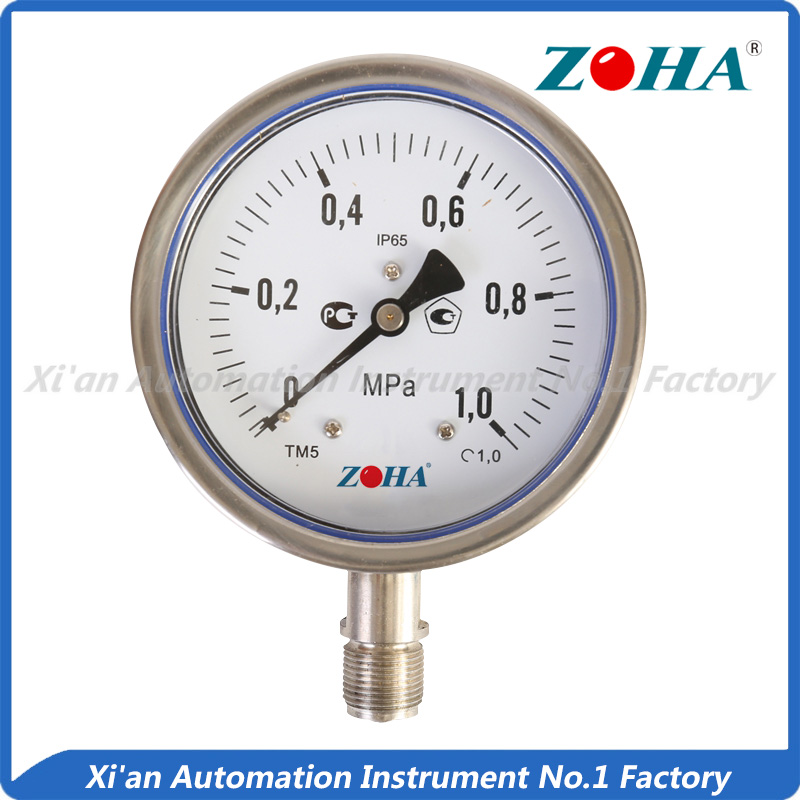

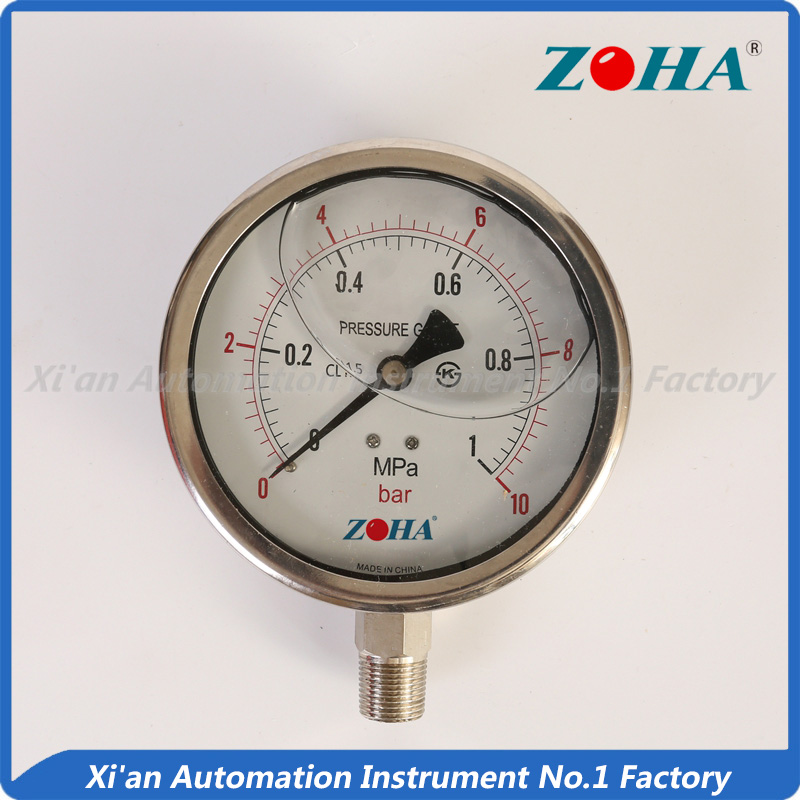

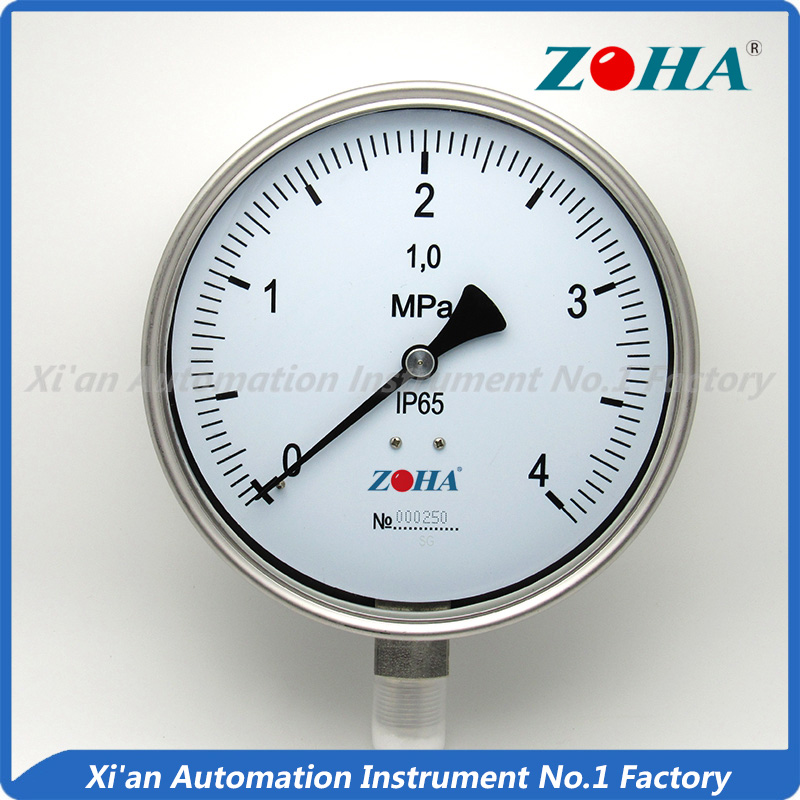

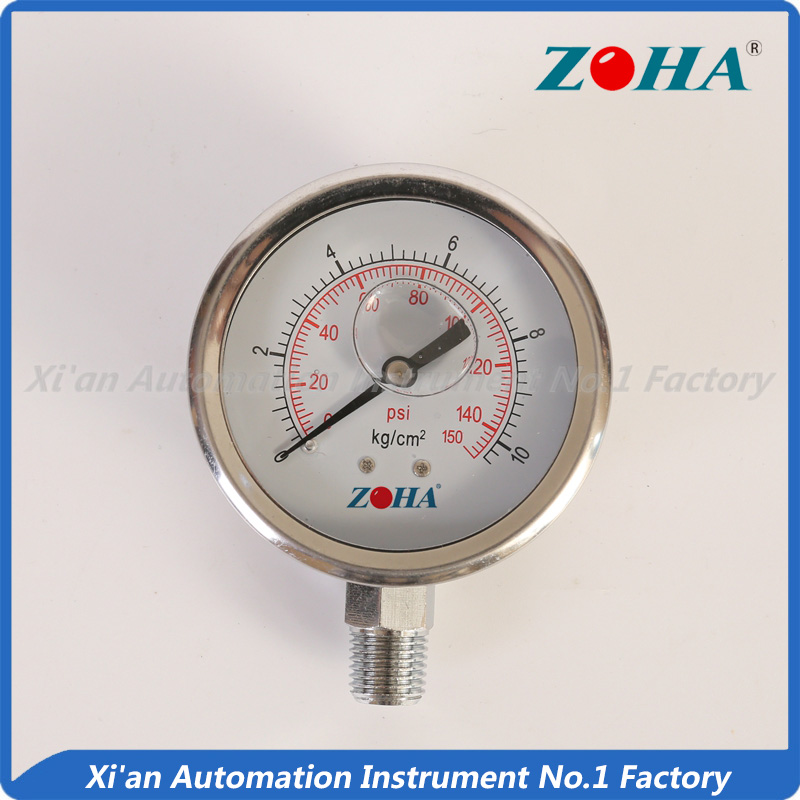

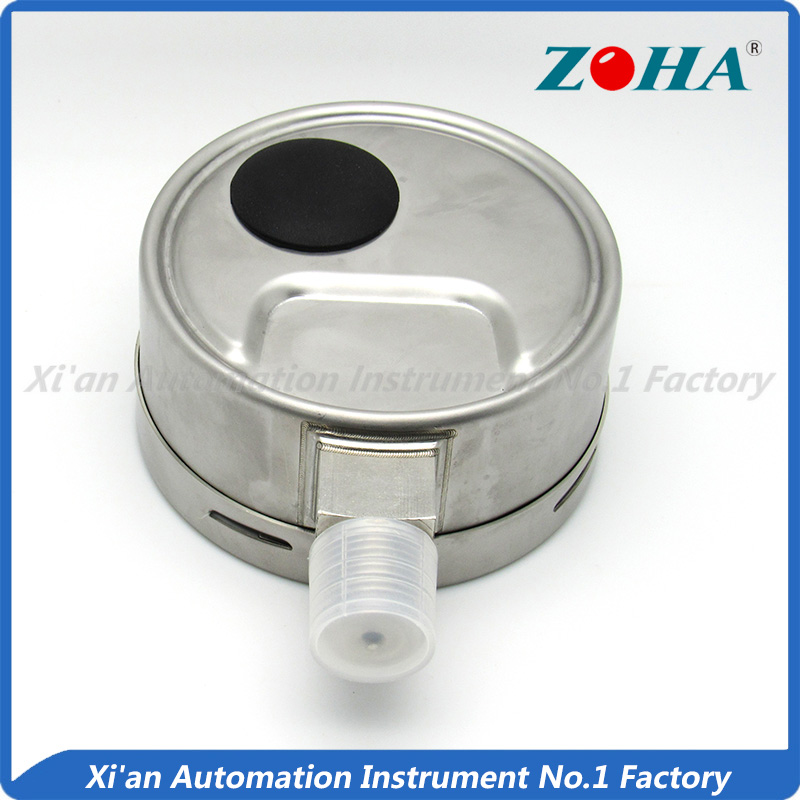

  • Product pictures
