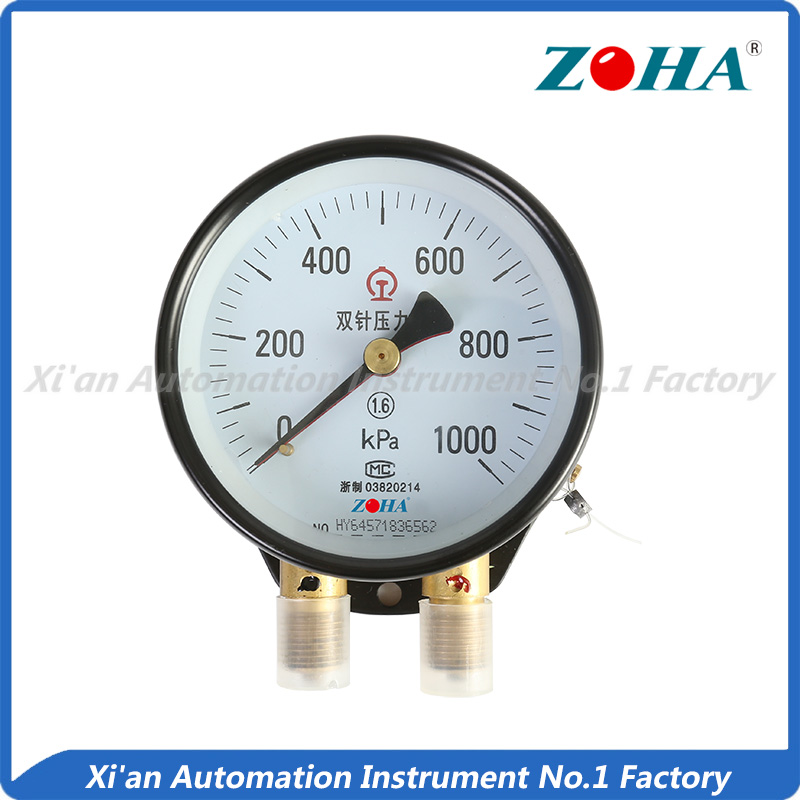

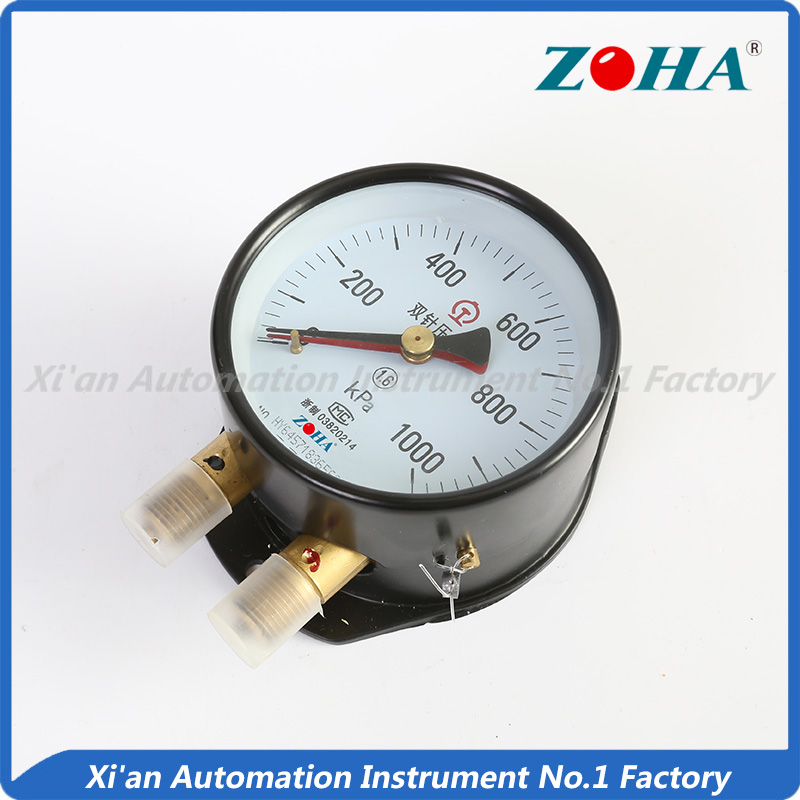

◎Application Description
This gauge mainly used in measuring the pressure of the liquid pressure system or the gas jar on the engine, also can measure two same pressure or two different pressure of the service medium at the same time which have none-corrosion, non-crystallized, non-solidified for copper alloys, lead-tin alloys welding materials.
◎Structure
This gauge is made up of two autocephalous measuring and pointing system. The gauges work base on flexibility parts (bourdon tube) change. It means that the media's pressure make the tube moving, with the stick and gear help, sending and making it bigger, then the pointer point it out on the dial.
◎Main Technology Data
◇ Accuracy:1.6.
◇ Scale range:0-1000;1200;1600;2500KPa.
◇ Environment condition:5℃~60℃, relative humidity is no more than 80%.
◇ Temperature influence: when the environment temperature deviate from 20±5℃ , the additional
error is no more than 0.4%/10℃.
◇ Weight:0.7kg.

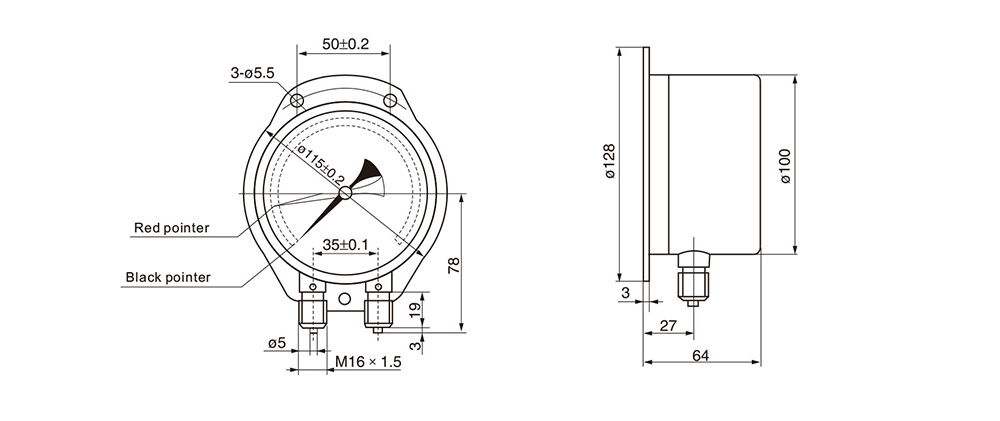

◎Overall Dimensions(Unit:mm)
