◎Applications

The connector square=14 economy pressure gauge is well suited for measuring gases or liquids which will neither explode, nor crystallize, nor corrode copper or copper alloys. It is most economical for 100mm diameter gauges.

◎Specifications

Dial Diameter

100mm

Measuring Range

Between 0.4~0~2.5MPa

Pressure Unit

Mpa psi bar kg/cm2 etc. (single or double scale both available)

Accuracy Class

±1.5%

Case Material

Steel

Movement

Brass with steel

Bourdon Tube

Phosphor bronze

Connector

Brass

Mounting Type

Bottom

Pointer

Aluminum black

Over-pressure

30%

Thread

M20*1.5 G1/2 NPT1/2 etc.
(We can accept all kinds of thread from customers)

Environment Temp
and Humidity

-40~70°C≤85%

Using Area

Plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors,OEM

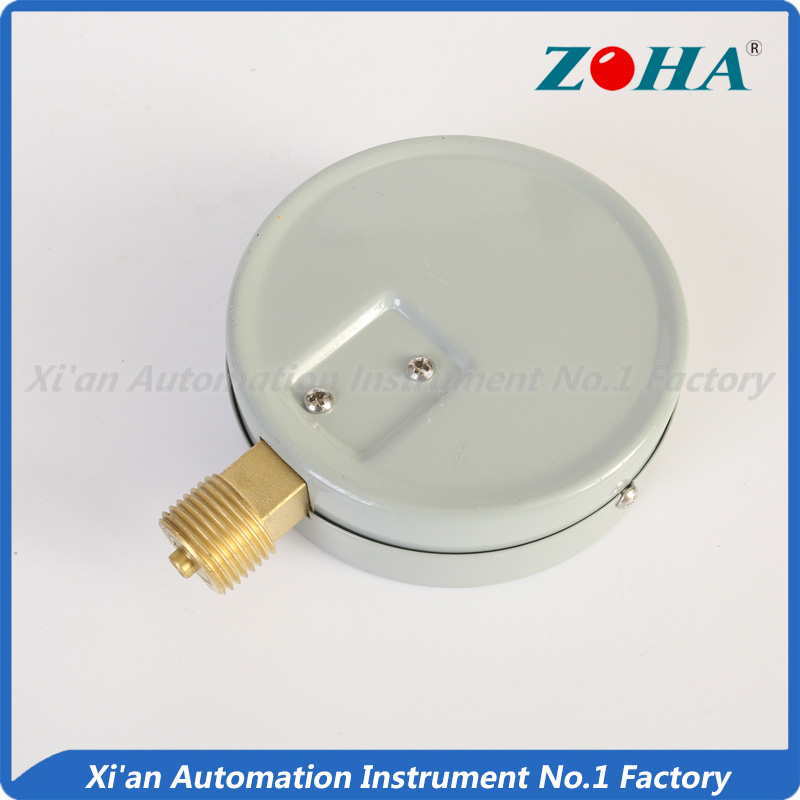

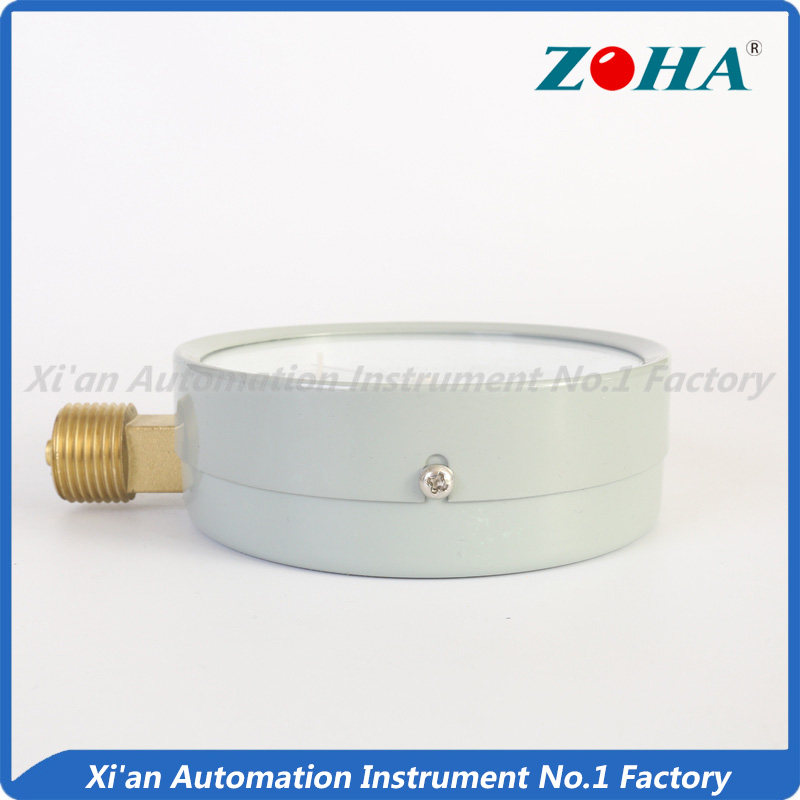

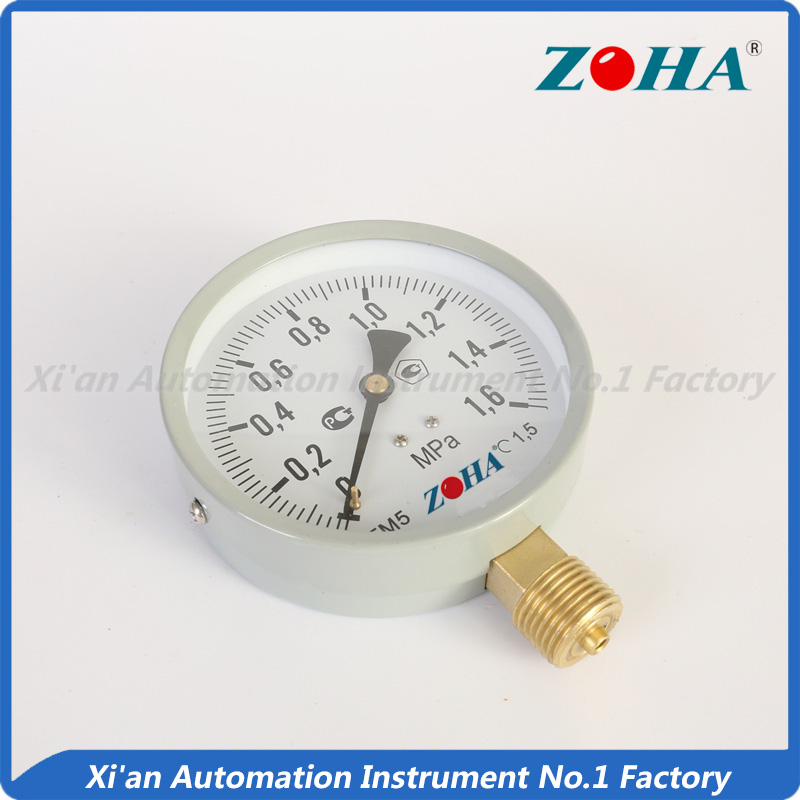

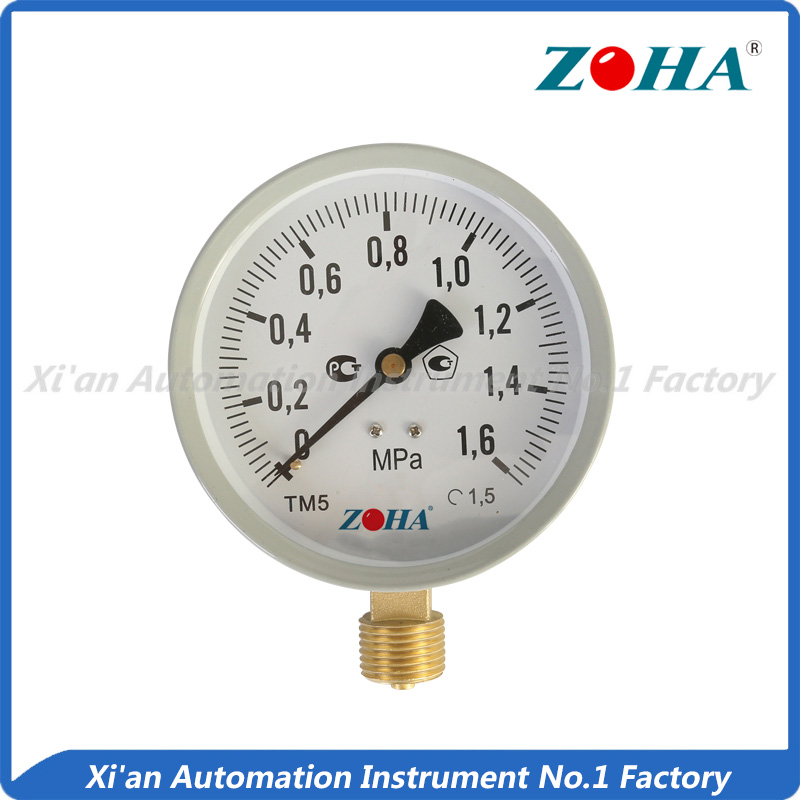

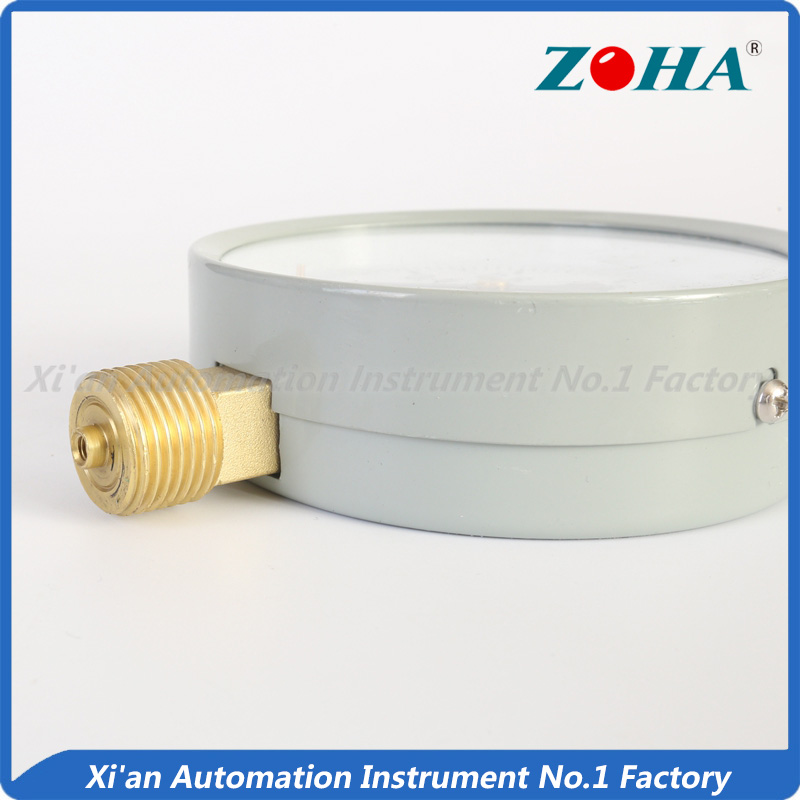

  • Product pictures
