◎Applications

YX-100SF6 sulfur hexafluorideGas Pressure(Density)Meter is mainly used in supervising and controlling gas density which using SF6 gas as insulation medium in high voltage electrical equipment of power grid transmission system. when SF6 gas occur divulges in the closed system, the meter will alarm and block signal output to ensure the safe and reliable operation of power grid transmission system.

◎Specifications

Model

YX-100SF6

Accuracy class

1.0%(Temp is 20℃)  1.6%(Temp between -3℃~60℃)  2.5%(Temp is -40℃)

Measuring Range

-0.1~0.5MPa、-0.1~0.9MPa

Connection Thread

M20*1.5  G1/2  ZG1/2  NPT1/2  G3/8  ZG3/8  NPT3/8 etc.

Case

SUS304

Movement

Stainless Steel

Bourdon tube

316L

Connector

304

Ingress Protection

IP65

Impact Resistance

300m/S2

Shock Resistance

20m/S2

Sensitive Element Tightness

Leakage rate≤1×10-15MPa.m3/S



Maximum Working Voltage

380V

Contact power

30VA

Mounting Type

Bottom mounting

Using TEMP

-30℃~60℃

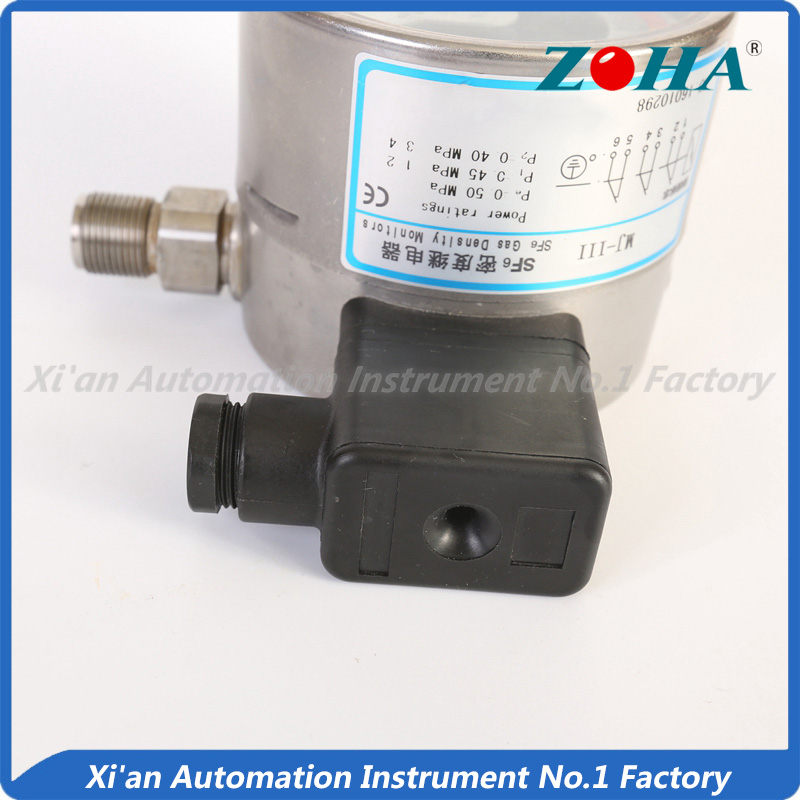

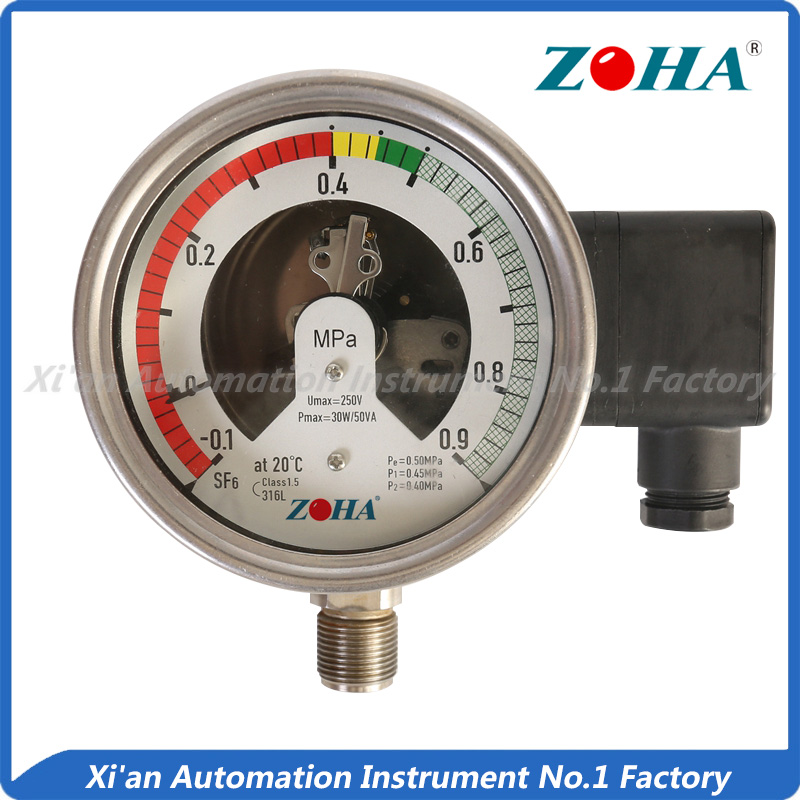

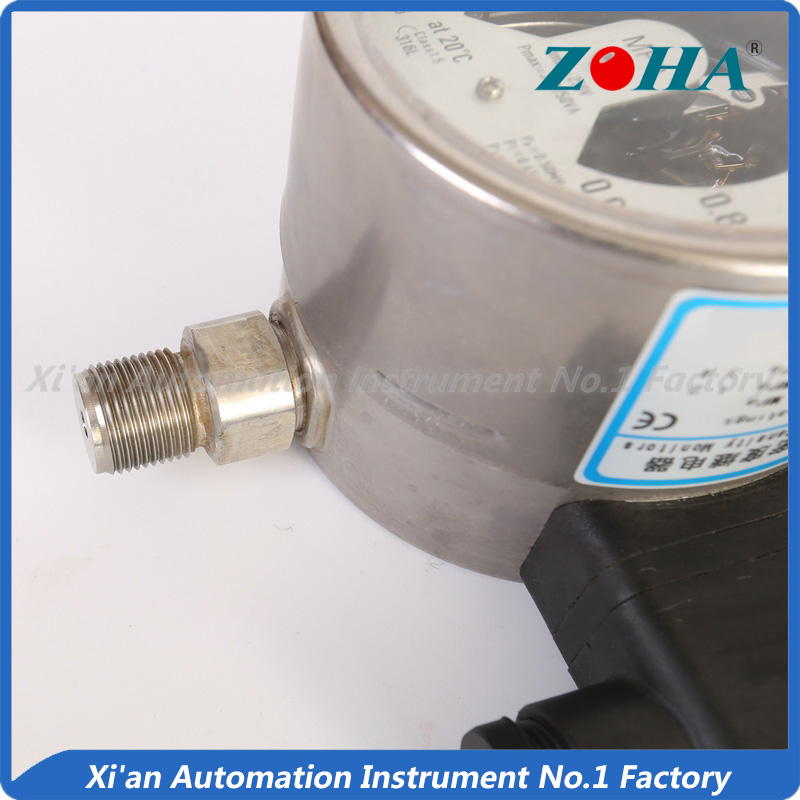

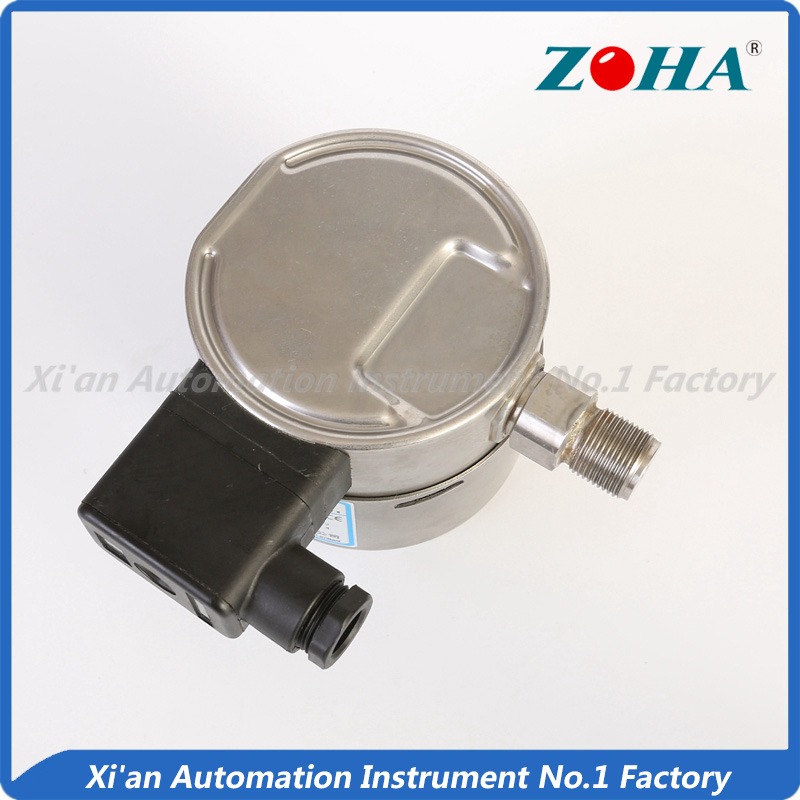

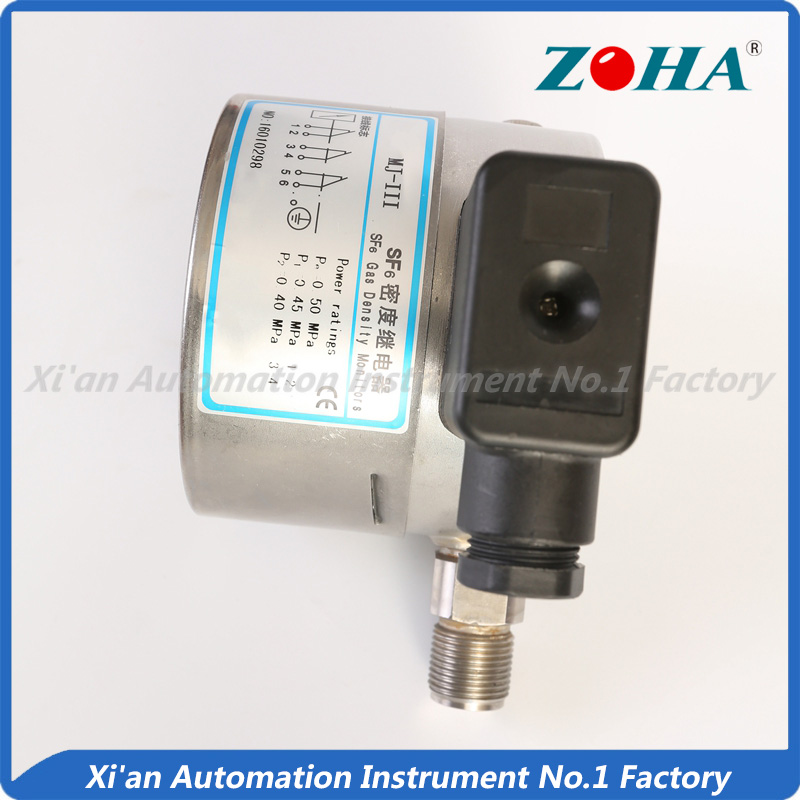

  • Product pictures
