◎Applications

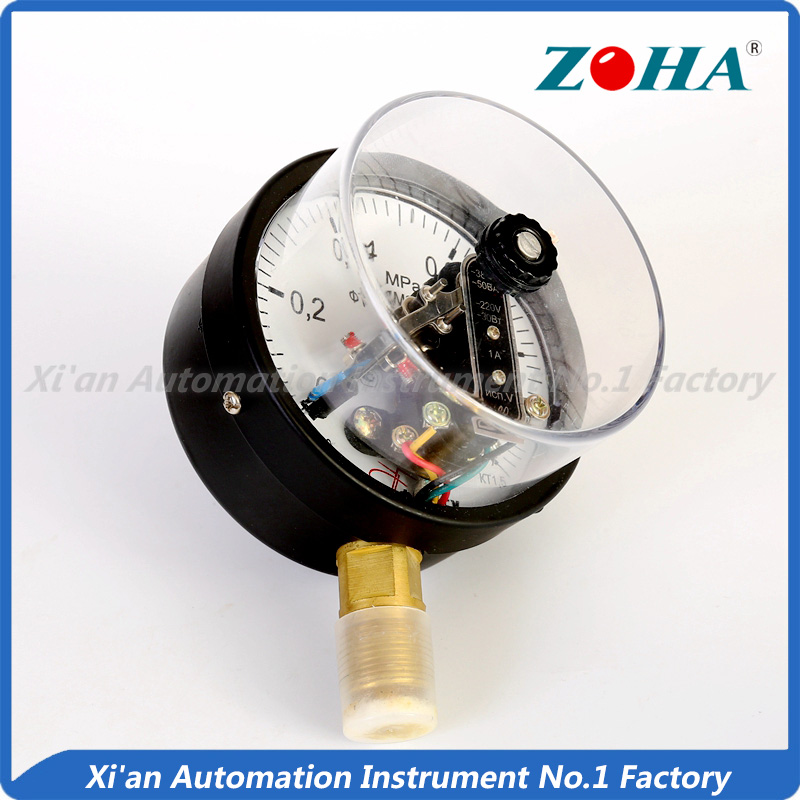

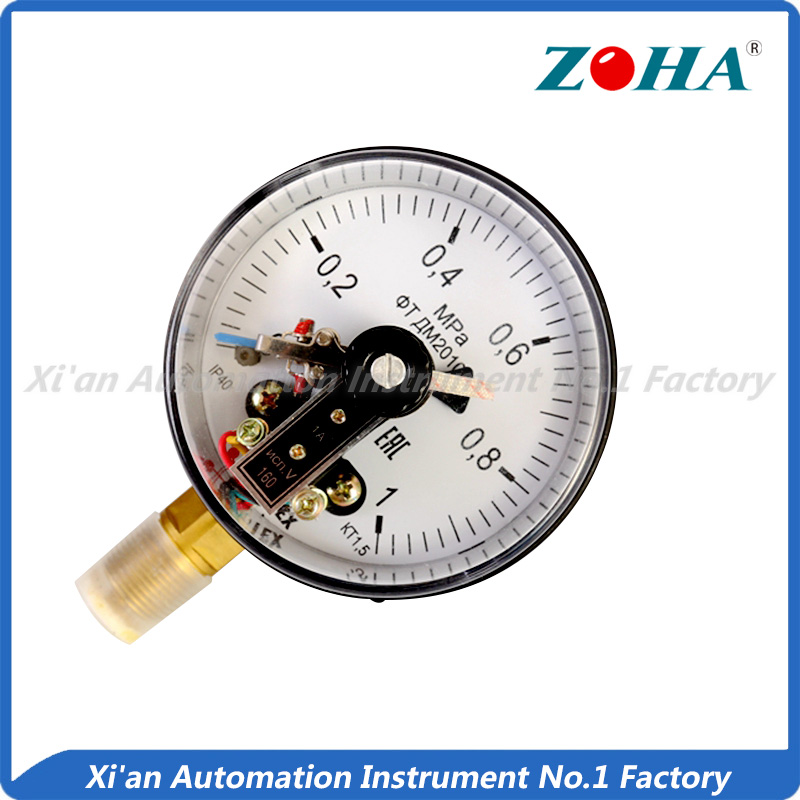

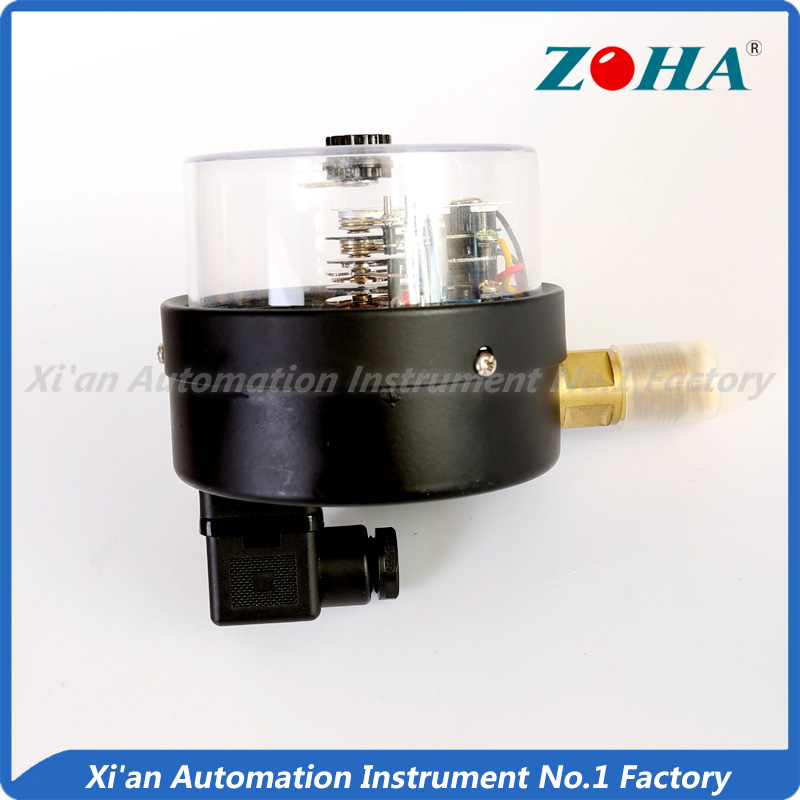

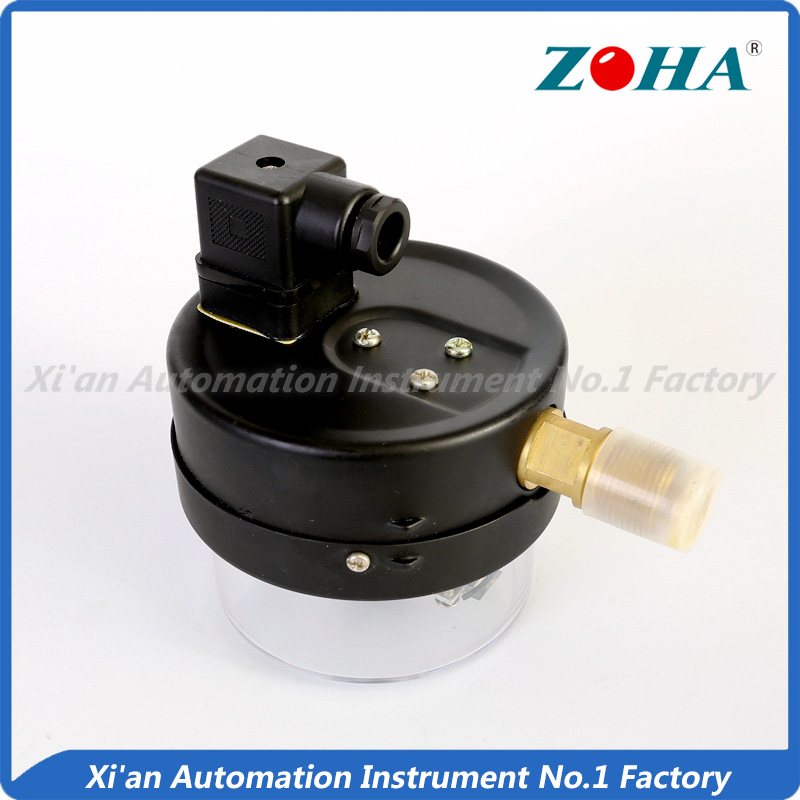

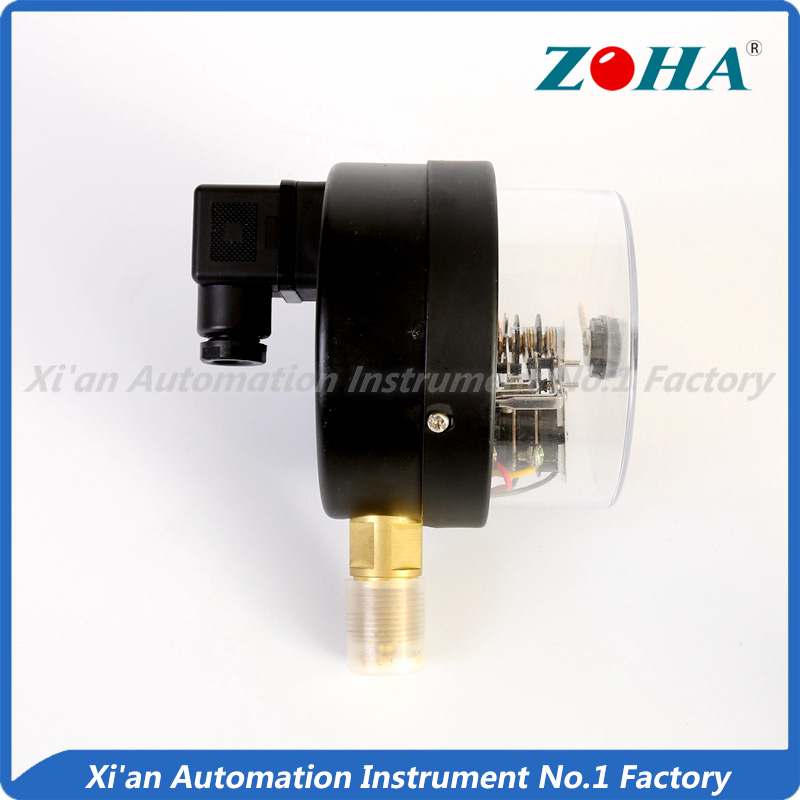

This gauge is suited for measuring the pressure of those gases or liquids which neither corrode copper alloys nor explode, nor crystallize. If the gauge is linked with the corresponding electric equipment, it will realize double controlling to the maximal pressure measurement and minimal
pressure measurement.
This gauge have the function of measuring and controlling, which can set the up limit and down limit of pressure value and the measurement was reliable. This gauge is well suited for the oil industry, chemical industry and power station and usually is link with the electric equipment.
◎Specifications
|
Type&code |
Magnetic type (YXC), Non-magnetic type (YX) |
|
Measuring Range |
-0.1-0~-0.1-2.4MPa, -0.1~0~60MPa (As customers requirements) |
|
Pressure Unit |
Mpa psi bar kg/cm2 ect. |
|
Accuracy Class |
±2.5%±1.5% |
|
Thread |
M20*1.5 G1/2 NPT1/2 (We can accept all kinds of thread from customers) |
|
Diameter |
63mm 100mm 150mm |
|
Mounting type |
Bottom, back, with flange |
|
Controlling type |
Lower limit and higher limit, double higher limit, double lower limit |
|
Maximal current |
1A (Attention: when the current is 1A, the voltage is no more than 40V) |
|
Contact power |
30VA or 10VA |
|
Maximal voltage |
380V A.C or220V D.C |
