Economy Pressure Gauge--Bottom Panel Mounting

  • Product Details

◎Applications

The economy pressure gauge is well suited for measuring gases or liquids which will neither
explode, nor crystallize, nor corrode copper or copper alloys. It is bottom with flange, panel mounting.

◎Specifications

Dial Diameter

63mm75mm100mm 150mm

Measuring Range

Between -0.1~0~60MPa

Pressure Unit

Mpa psi bar kg/cm2 etc. (single or double scale both available)

Accuracy Class

±2.5%±1.5%

Case Material

Steel

Movement

Brass with steel

Bourdon Tube

Phosphor bronze

Connector

Brass

Mounting Type

Bottom with flange, panel mounting

Pointer

Aluminum black

Over-pressure

30%

Thread

M20*1.5 G1/2 NPT1/2 G1/4 NPT1/4 G1/8 NPT1/8 etc.
(We can accept all kinds of thread from customers)

Environment Temp
and Humidity

-40~70°C≤85%

Using Area

Plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors,OEM

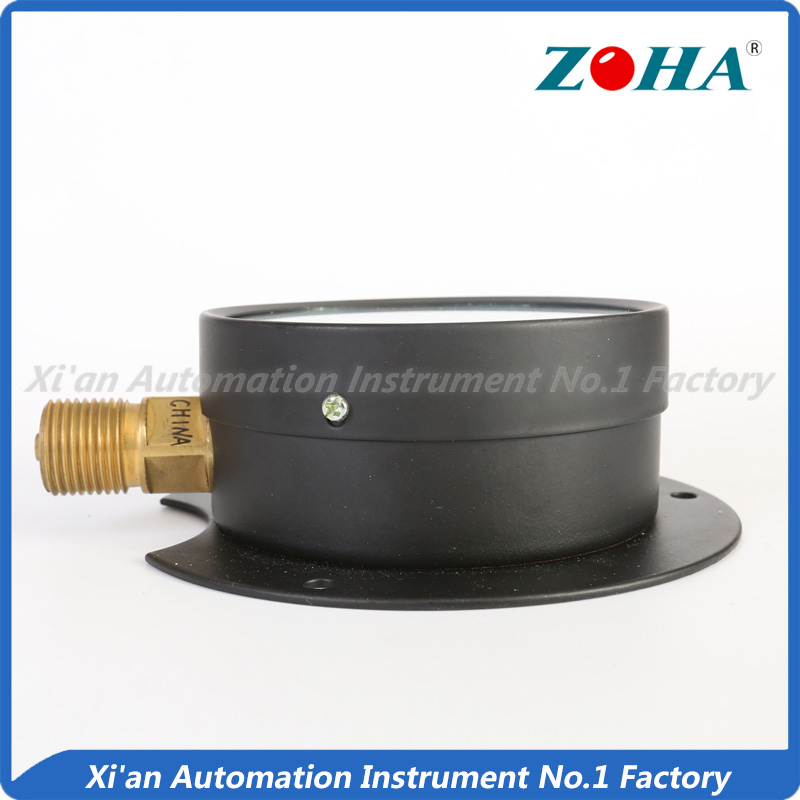

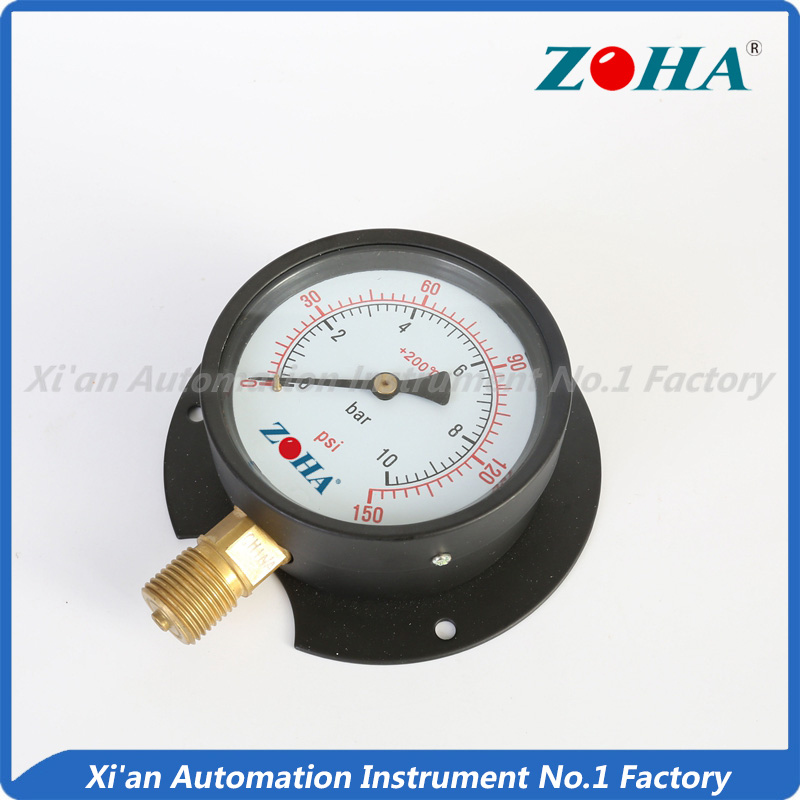

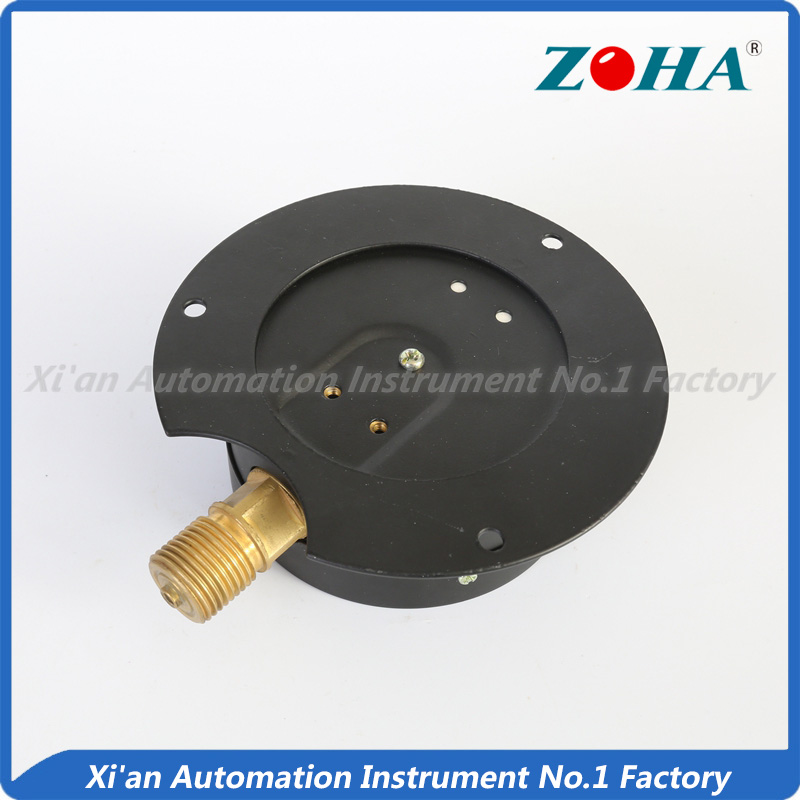

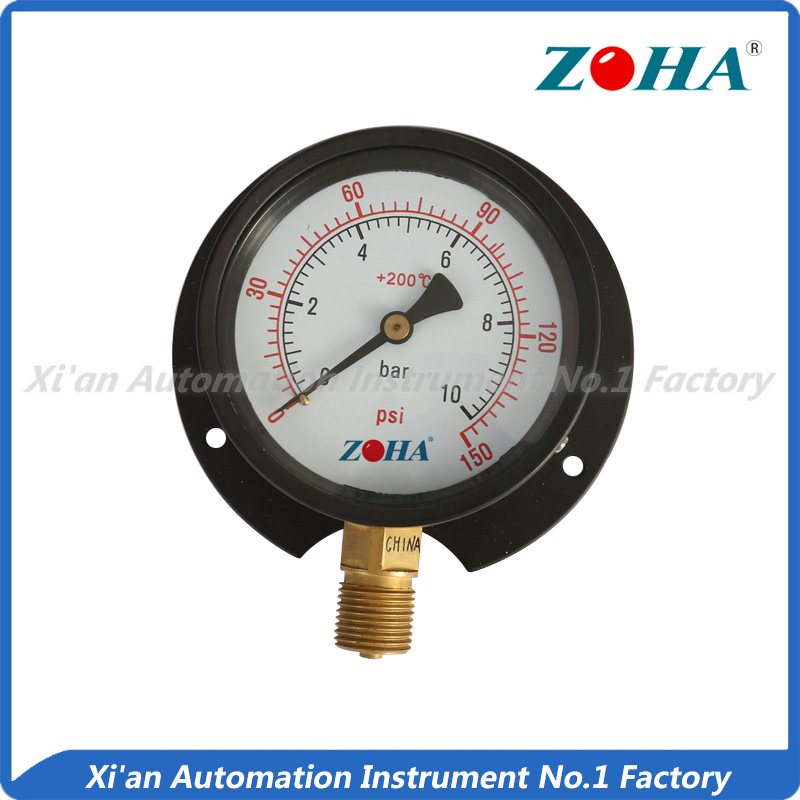

  • Product pictures
