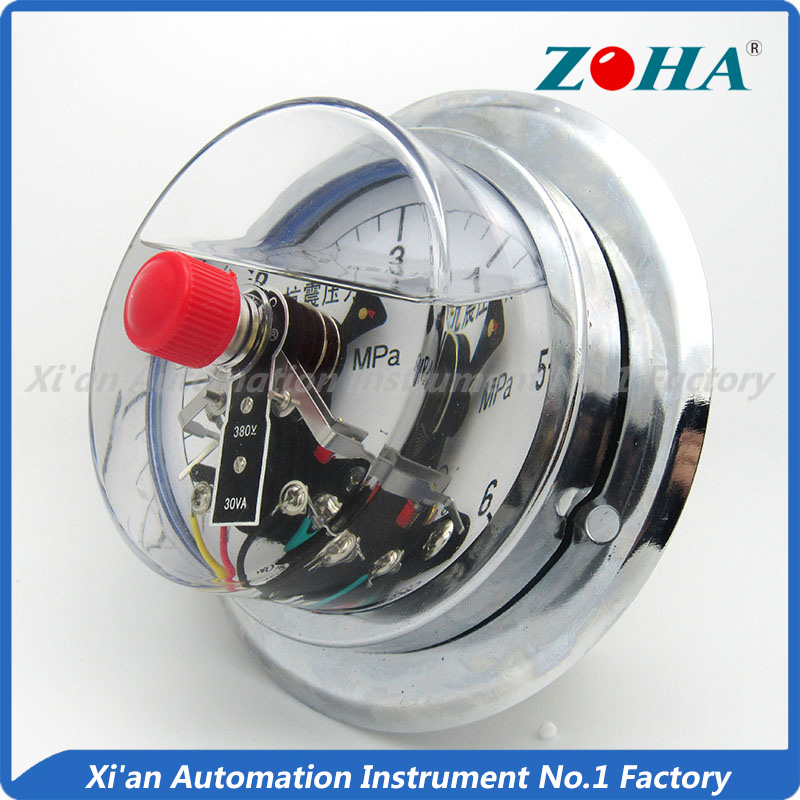

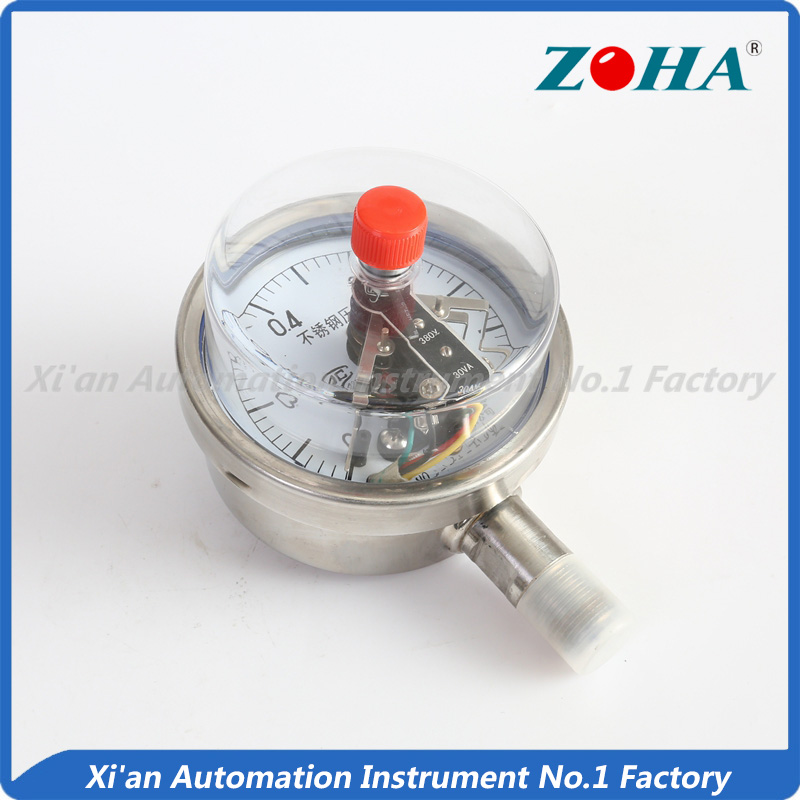

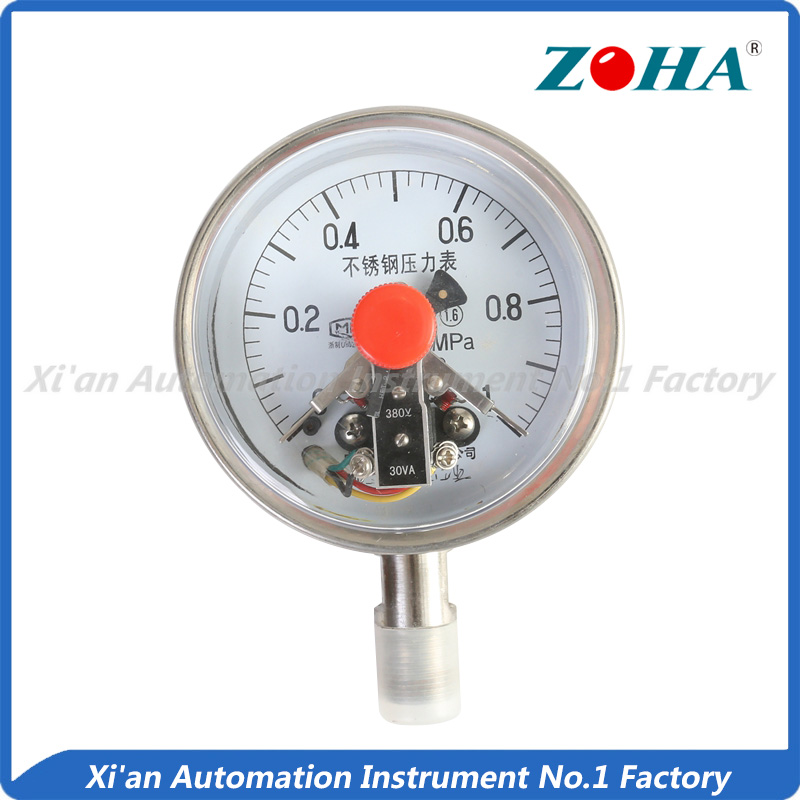

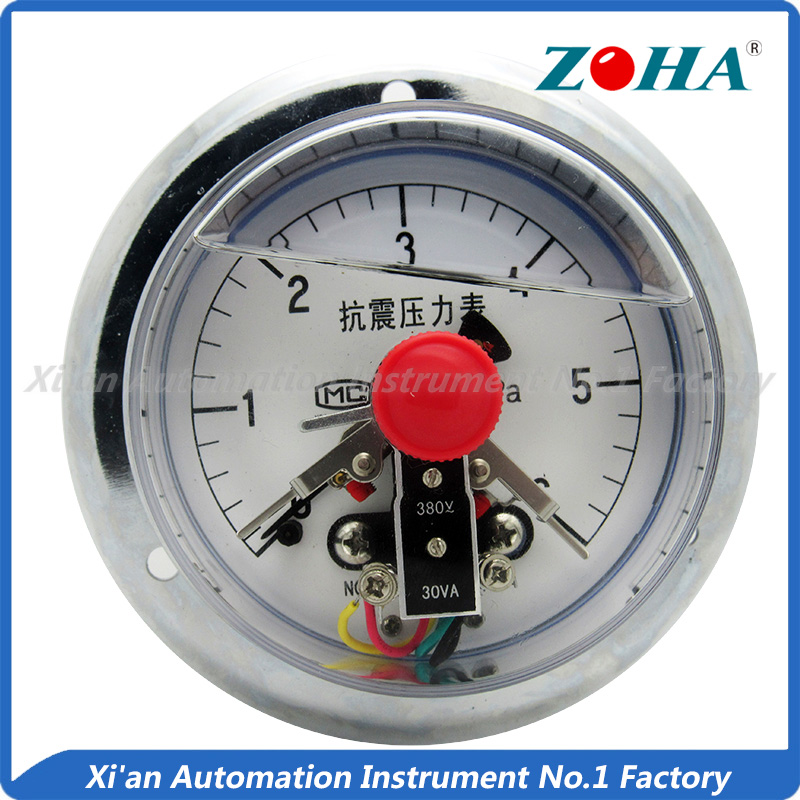

◎Applications

This gauge is designed to have the function of shock resistance, corrosion resistance, ammonia measuring and attached the diaphragm. it is well suited for the oil industry, chemical industry, power station and metallurgical industry, this gauge can measure the pressure of all kinds of media which has no explosion when the environment is bad and corrosive. If this gauge is link with the corresponding electric equipment, it will realize auto-controlling to the media pressure system and send out alarm.

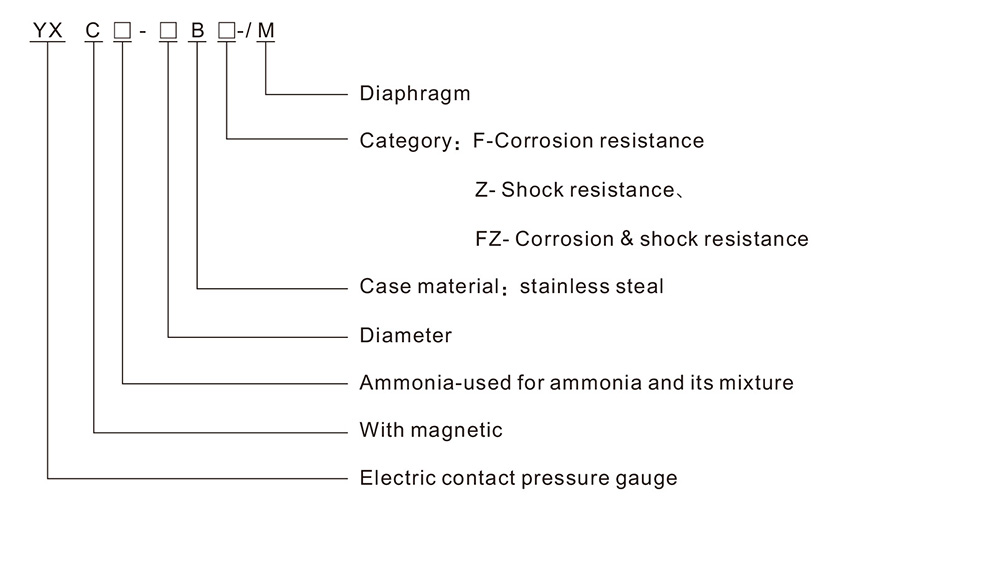

◎Model Medns

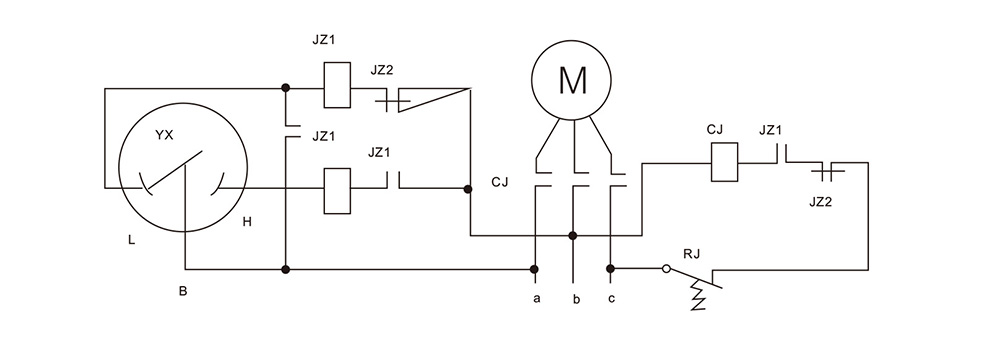

◎Circuit Connection Chart

◎Main Technology Data And The Function

◇Scale range, accuracy, and connection dimension

Category Type
Type
Name
Scale range
MPa
Accuracy



Connection
dimension
Setting
value
Indicate
Opening Closing
Special
YAXC
Ammonia pressure
gauge with magnetic
electric contact
~0.16 ~ 60 -0.1~0.06 ~ 2.4
2.5
2.5
4


M20×1.5

shock resistance
YXC-Z
shock resistance
pressure gauge with
magnetic electric contact
0~0.6 ~ 60 -0.1~0.5 ~ 2.4
1.6
1.6
5
Corrosion
resistance
YXC-B-F
Corrosion resistance
pressure gauge with
magnetic electric contact
0~0.16 ~ 60 -0.1~0.06 ~ 2.4
1.6
1.6
4
shock corrosion
resistance
YXC-B-FZ
Shock corrosion
resistance pressure gauge
With magnetic electric contact
0~0.6 ~ 60 -0.1~0.5 ~ 2.4
1.6
1.6
5
Diaphragm
common
YXC-/M


Diaphragm pressure
gauge with magnetic
resistance electric contact

0~0.16 ~ 60 -0.1~0.06 ~ 2.4

1.6

1.6

4





All kinds of
diaphragm
Diaphragm
& corrosion
resistance
YXC-B-F/M
Diaphragm
& shock
resistance
YXC-Z/M
0~0.6 ~ 60 -0.1~0.5 ~ 2.4

1.6

1.6

5

Diaphragm
shock and
&
corrosion
resistance
YXC-B-FZ/M

◇ Environment condition

Category Type Temperature Range Relative Humidity
Performance against
the vibration
Service Medium Ambient Environment
Special -40~70℃ Not over 85% V.H. Level 3 class
Corrosion resistance -40~70℃ Not over 90% V.H. Level 3 class
Shock resistance shock
& corosion resistance
-25~55℃ V.H. Level 4 class
Diaphragm common 150℃ below -40~70℃ V.H. Level 3 class
Diaphragm corrosion
resistance
-40~70℃
Diaphragm & shock
resistance、shock &
corosion resistance
150℃ below -25~55℃ V.H. Level 4 class

◇ Temperature influence: the showing value is no more than 0.4%/10℃ , setting point is no more than 0.6%/10℃. the environment temperature deviate from 20±5℃.

◇ The electric data of the connection equipment and the controlling type is as the same as the YXC pressure gauge with magnetic electric contact.
