◎Brief Introduction

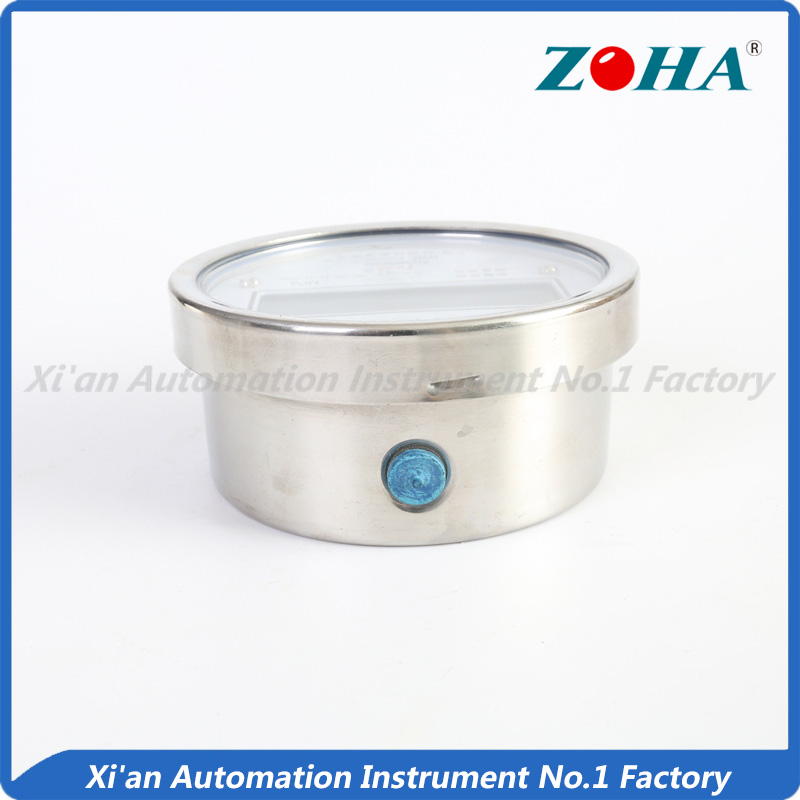

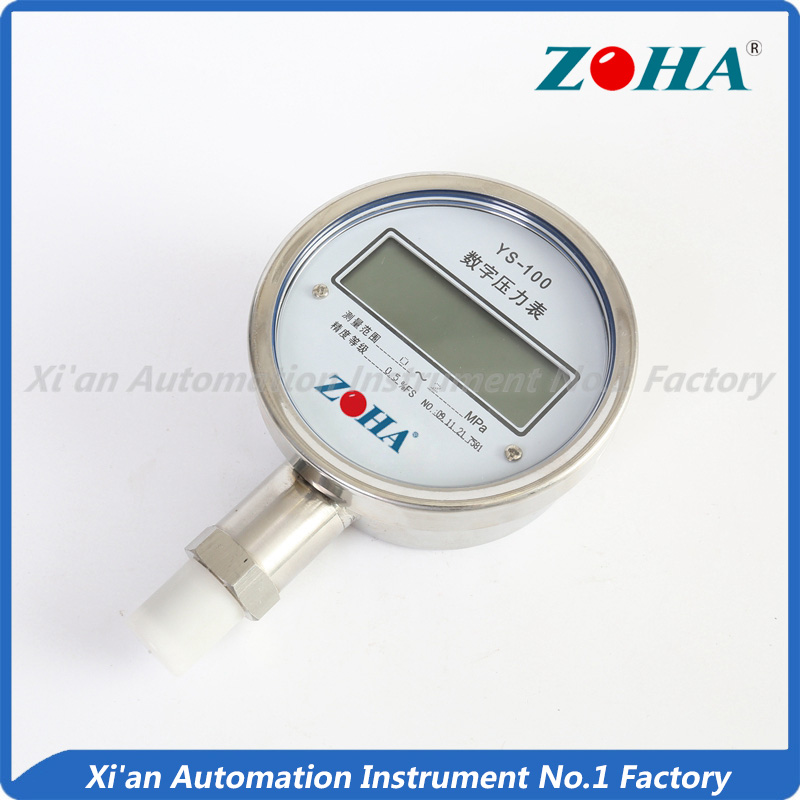

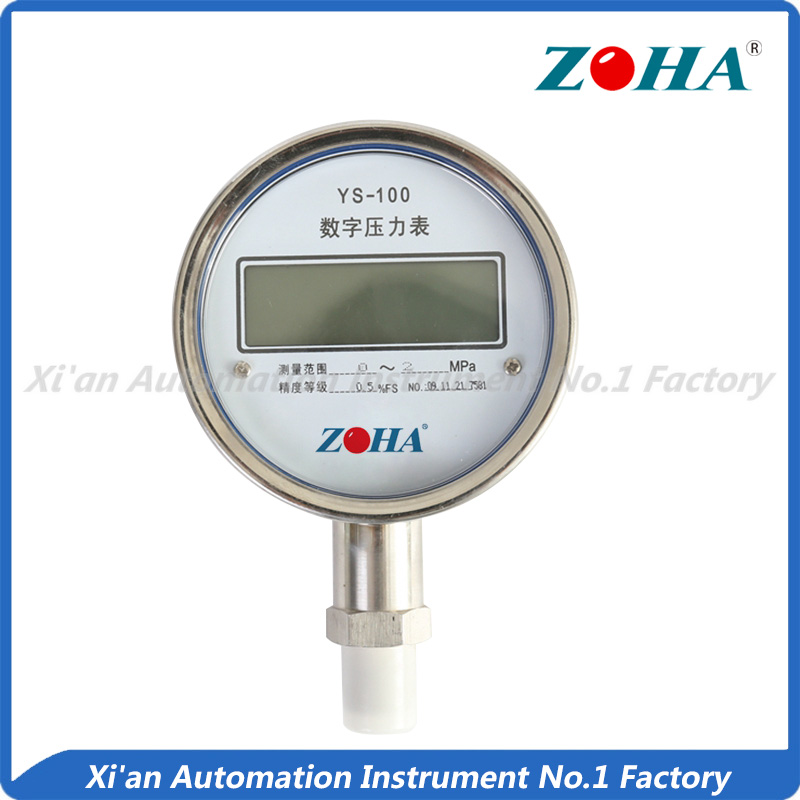

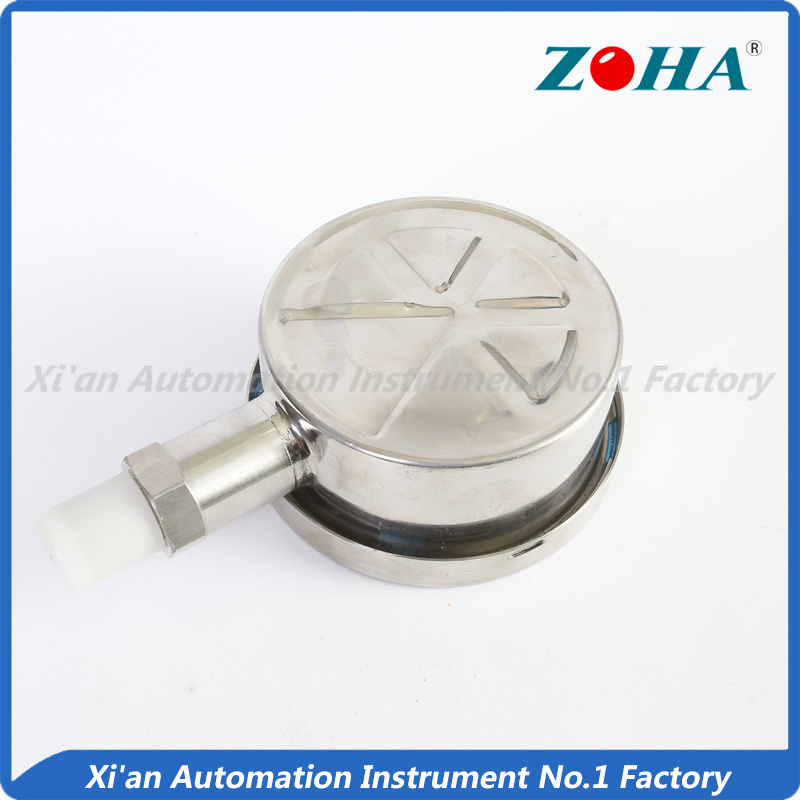

Digital pressure gauge is the patented product newly independently developed by Xi'an Automation Instrument No.1 Factory Wholly electronically structured, the digital PG adopts American 16-digit CPU processor, with the ability of super anti-interference and highly rapid sampling. Programming adopts arithmetic technique of floating point, digital filtering technique,watchdog technique, etc. The sensor adopts American silicon piezoresistive chip.
The Digital PG is an intelligent PG, which is highly accurate, simple in operation, reliable,durable and self-protective.
◎Purpose in use
Digital PG is an item functionally integrated with pressure measurement, point control and transmitting output. Directly installed on spot or testing control board, it can measure or control the pressure of all kinds of liquid and gas which is not corrosive to stainless steel.
◎Specifications
|
Type |
YS-100 |
|
Diameter |
100mm |
|
Measuring Range |
-0.1~0~100MPa(As customers requirements, decimal is allowed) |
|
Pressure Unit |
Mpa psi bar kg/cm2 etc. |
|
Accuracy Class |
cl.0.5 cl.0.2 cl.0.1 |
|
Gauge Material |
Stainless steel |
|
Display |
5 digits LCD |
|
Protective Function |
Upper limit and lower limitcan choose(set freely as customers needs) |
|
Power Supply |
1. A.C 220V 2. D.C. 24V 3. 3.6V battery |
|
Environment Temp |
-20~60°C≤85% |
|
Mounting Type |
Bottom connection/radial(back connection type also can produce) |
|
Thread |
M20*1.5 G1/2 NPT1/2 (As customers requirements) |
