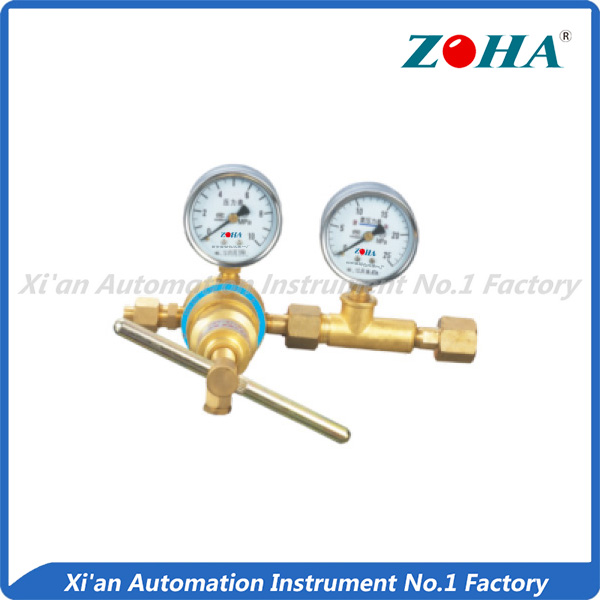

◎370 series pressure reducer(Unit：mm)
|
|
|
Product mode
|
YQY-370
|
YQQ-370
|
YQD-370
|
|
Applicable media
|
Oxygen
|
Hydrogen
|
Nitrogen
|
|
Input pressure
|
15MPa
|
15MPa
|
15MPa
|
|
Adjusting range
|
0.4-4MPa
|
0.4-4MPa
|
0.4-4MPa
|
|
Nominal flow rate
|
16m3/h
|
60m3/h
|
16m3/h
|
|
Specification
|
(0-6,0-25)MPa
|
(0-6,0-25)MPa
|
(0-6,0-25)MPa
|
|
Weight
|
1kg
|
1kg
|
1kg
|
|
Outline size
|
200×160×145
|
200×160×145
|
200×160×145
|
|
Input port thread
|
G5/8"
|
φ21.8×14/inch-left
|
G5/8"
|
|
Output port thread
|
M16×1.5
|
M16×1.5-left
|
M16×1.5
|
|
|
|

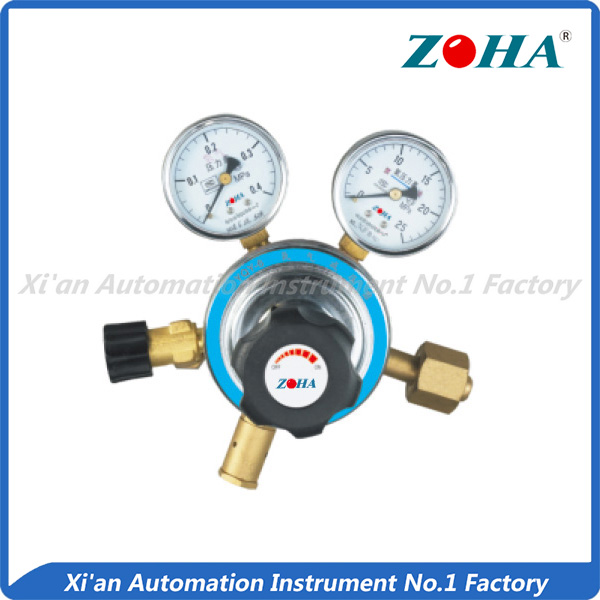

YQY-6 oxygen pressure reducer(Unit：mm)
|
|
|
Applicable media
|
Oxygen
|
|
Input pressure
|
15MPa
|
|
Adjusting range
|
0.02-0.25MPa
|
|
Nominal flow rate
|
10m3/h
|
|
Specification
|
(0-0.4,0-25)MPa
|
|
Weight
|
1.9kg
|
|
Outline size
|
175×190×175
|
|
Input port thread
|
G5/8"
|
|
Output port thread
|
M16×1.5
|
|
|
|

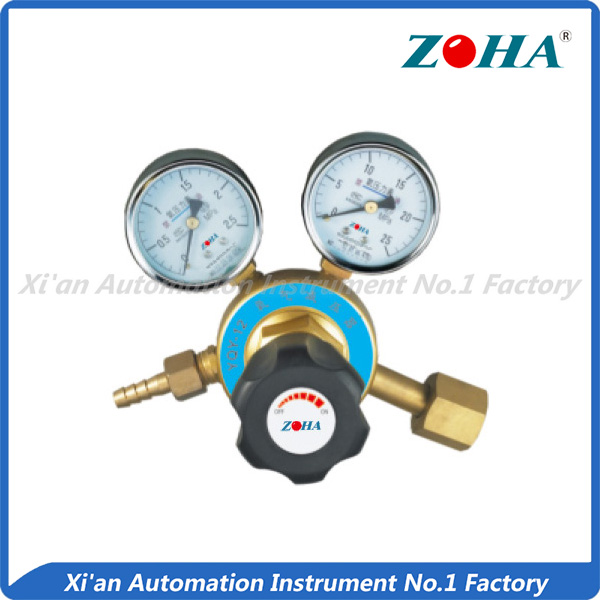

YQY-12 oxygen pressure reducer(Unit：mm)
|
|
|
Applicable media
|
Oxygen
|
|
Input pressure
|
15MPa
|
|
Adjusting range
|
0-1.25MPa
|
|
Nominal flow rate
|
40m3/h
|
|
Specification
|
(0-2.5,0-25)MPa
|
|
Weight
|
1.2kg
|
|
Outline size
|
155×165×165
|
|
Input port thread
|
G5/8"
|
|
Output port thread
|
M16×1.5
|
|
|
|

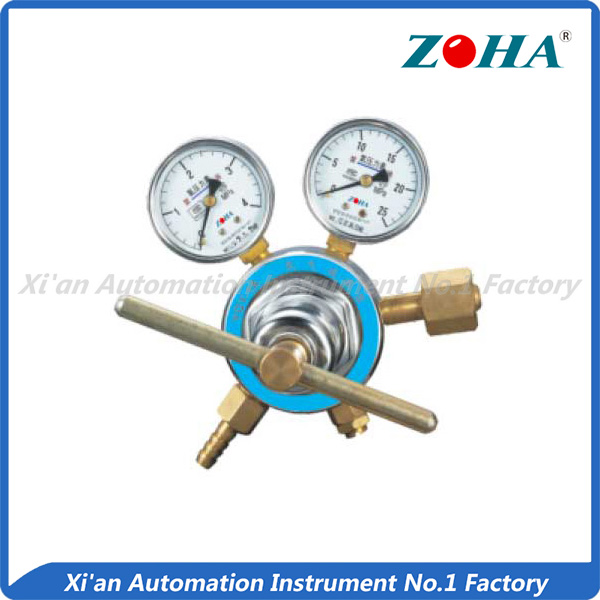

YQY-1A oxygen pressure reducer(Unit：mm)
|
|
|
Applicable media
|
Oxygen
|
|
Input pressure
|
15MPa
|
|
Adjusting range
|
0.1-2MPa
|
|
Nominal flow rate
|
250m3/h
|
|
Specification
|
(0-4,0-25)MPa
|
|
Weight
|
2.3kg
|
|
Outline size
|
177×170×163
|
|
Input port thread
|
G5/8"
|
|
Output port thread
|
M16×1.5
|
|
|
|

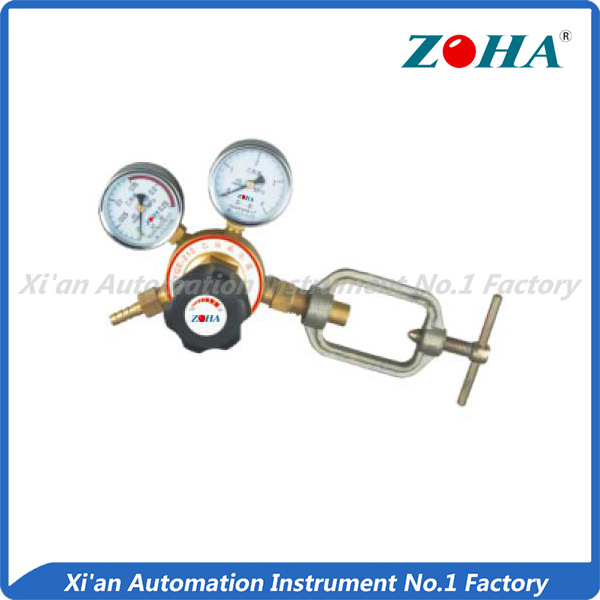

YQE-213 acetylene pressure reducer(Unit：mm)
|
|
|
Applicable media
|
Acetylene
|
|
Input pressure
|
3MPa
|
|
Adjusting range
|
0.01-0.15
|
|
Nominal flow rate
|
5m3/h
|
|
Specification
|
(0-0.25,0-4)MPa
|
|
Weight
|
1.4kg
|
|
Outline size
|
280×165×170
|
|
Input port thread
|
Frame
|
|
Output port thread
|
M16×1.5-left
|
|
|
|

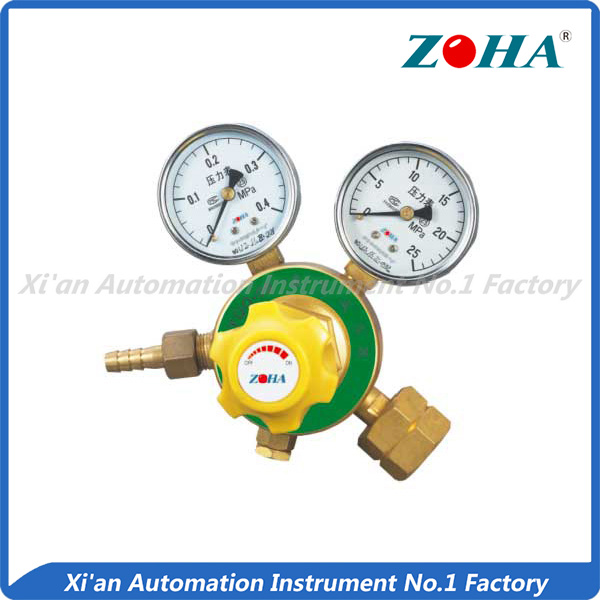

YQQ-09 hydrogen pressure reducer(Unit：mm)
|
|
|
Applicable media
|
Hydrogen
|
|
Input pressure
|
15或20MPa
|
|
Adjusting range
|
0-0.2MPa
|
|
Nominal flow rate
|
8m3/h
|
|
Specification
|
(0-0.4,0-25)MPa
|
|
Weight
|
1.4kg
|
|
Outline size
|
155×165×165
|
|
Input port thread
|
φ21.8×14/inch－left
|
|
Output port thread
|
M16×1.5－left
|
|
|
|

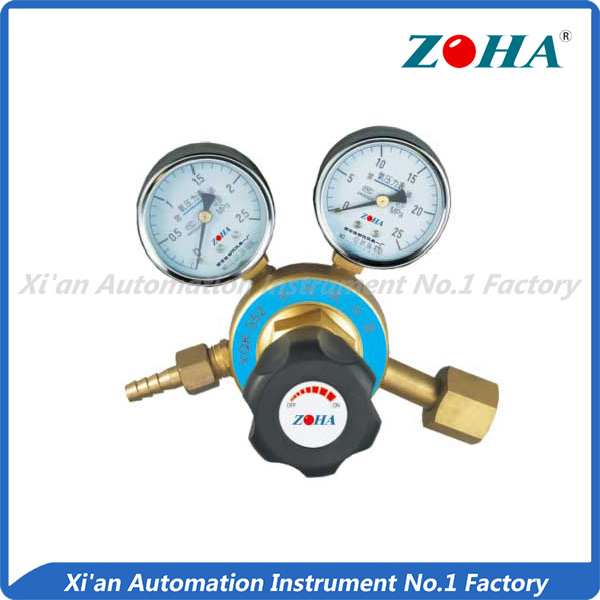

YQK-352 air pressure reducer(Unit：mm)
|
|
|
Applicable media
|
Air
|
|
Input pressure
|
15MPa
|
|
Adjusting range
|
0.1-1MPa
|
|
Nominal flow rate
|
30m3/h
|
|
Specification
|
(0-1.6,0-25)MPa
|
|
Weight
|
1.5kg
|
|
Outline size
|
155×165×165
|
|
Input port thread
|
G5/8"
|
|
Output port thread
|
M16×1.5
|
|
|
|

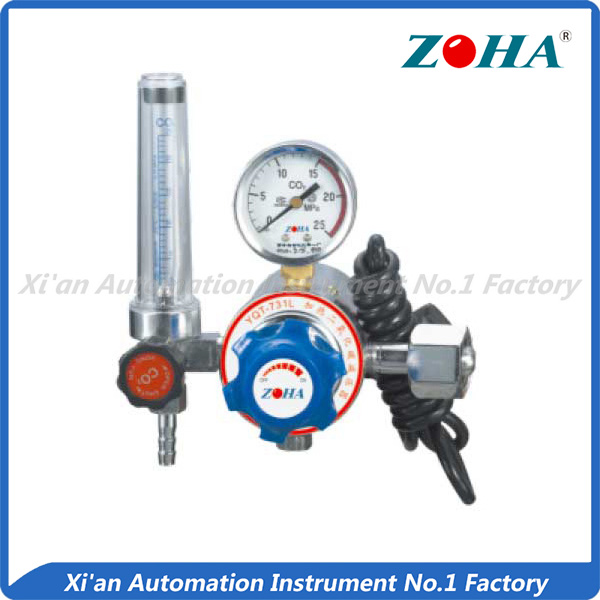

YQT-731L heating carbon dioxide pressure reducer(Unit：mm)
|
|
|
Applicable media
|
Carbon dioxide
|
|
Input pressure
|
15MPa
|
|
Adjusting range
|
0.15MPa(fixed)
|
|
Nominal flow rate
|
25L/min
|
|
Specification
|
0-25MPa
|
|
Weight
|
1kg
|
|
Outline size
|
140×175×180
|
|
Input port thread
|
G5/8"
|
|
Output port thread
|
M16×1.5
|
|
|
|

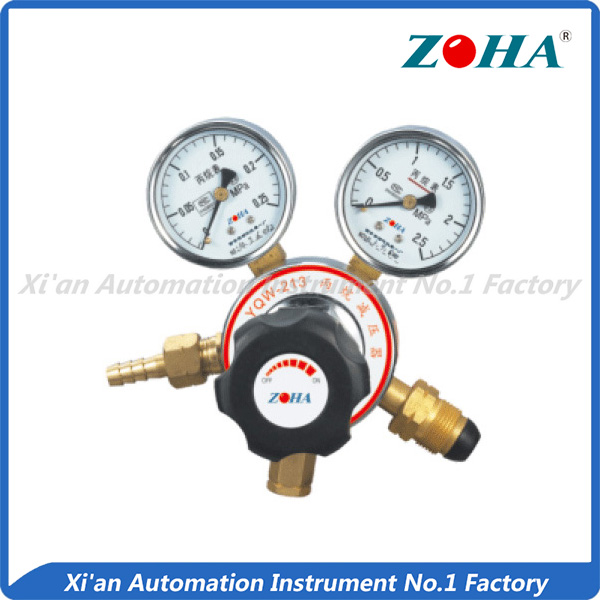

YQW-213 propane pressure reducer(Unit：mm)
|
|
|
Applicable media
|
Propane
|
|
Input pressure
|
1.6MPa
|
|
Adjusting range
|
0.02-0.06MPa
|
|
Nominal flow rate
|
1.5m3/h
|
|
Specification
|
(0-0.16,0-2.5)MPa
|
|
Weight
|
2kg
|
|
Outline size
|
190×175×165
|
|
Input port thread
|
M22×1.5-left
|
|
Output port thread
|
M16×1.5-left
|
|
