◎Application Description
This product is a reducer installed in pipe of various kinds of gas media. It can keep output
pressure stable when input pressure and outlet flow change. The product is especially suitable for
the condition where stable pressure accuracy is highly demanded or working keeps quiet a long
time. Executive standard: Q/JBMP6.
◎Main Technology Data
|
|

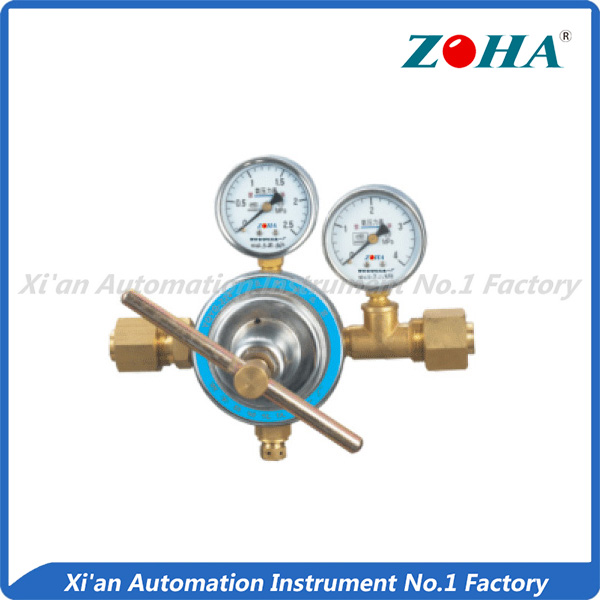

11 series pressure reducer(Unit：mm)
|
|
|
Product mode
|
YQY-11
|
YQQ-11
|
YQD-11
|
|
Applicable media
|
Oxygen
|
Hydrogen
|
Nitrogen
|
|
Input pressure
|
15MPa
|
15MPa
|
15MPa
|
|
Adjusting range
|
0.1-1.6MPa
|
0.1-1.6MPa
|
0.1-1.6MPa
|
|
Nominal flow rate
|
100m3/h
|
100m3/h
|
100m3/h
|
|
Specification
|
(0-2.5,0-25)MPa
|
(0-2.5,0-25)MPa
|
(0-2.5,0-25)MPa
|
|
Weight
|
5.8kg
|
5.8kg
|
5.8kg
|
|
Outline size
|
275×178×202
|
275×178×202
|
275×178×202
|
|
Input port thread
|
G5/8"
|
G5/8"
|
G5/8"
|
|
Output port thread
|
G5/8"
|
G5/8"
|
G5/8"
|
|
|
|

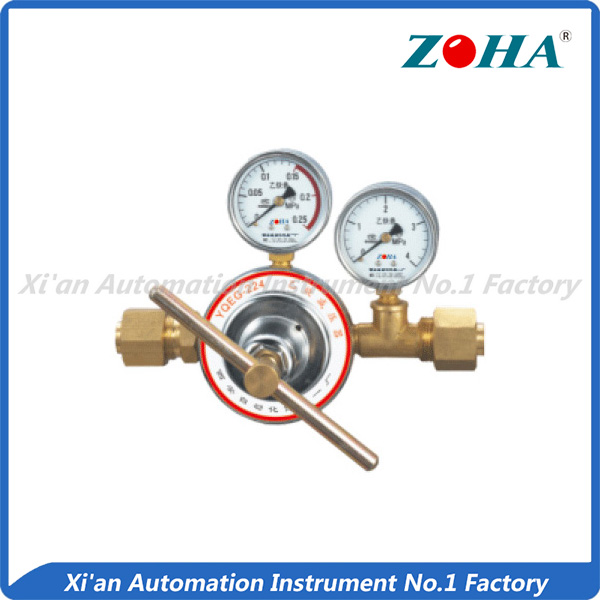

YQEG-224 acetylene pressure reducer(Unit：mm)
|
|
|
Applicable media
|
乙炔
|
|
Input pressure
|
3MPa
|
|
Adjusting range
|
0.01-0.15MPa
|
|
Nominal flow rate
|
40m3/h
|
|
Specification
|
(0-0.25,0-4)MPa
|
|
Weight
|
3kg
|
|
Outline size
|
210×175×220
|
|
Input port thread
|
M27×1.5(φ14 Welding hole)
|
|
Output port thread
|
M27×1.5(φ14 Welding hole)
|
|
|
|

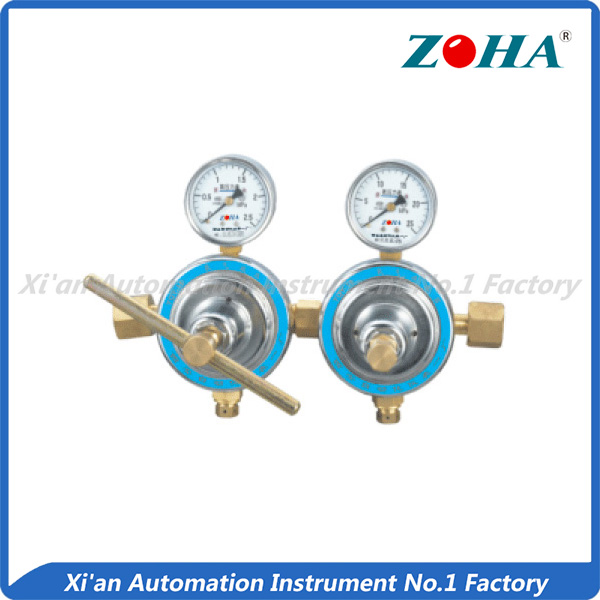

YQYG-224 oxygen pressure reducer(Unit：mm)
|
|
|
Applicable media
|
Oxygen
|
|
Input pressure
|
3MPa
|
|
Adjusting range
|
0.1-1.6MPa
|
|
Nominal flow rate
|
120m3/h
|
|
Specification
|
(0-2.5,0-4)MPa
|
|
Weight
|
3.5kg
|
|
Outline size
|
220×200×220
|
|
Input port thread
|
M27×1.5(φ14 Welding hole)
|
|
Output port thread
|
M27×1.5(φ14 Welding hole)
|
|
