stainless steel capsule pressure gauge

Product Center

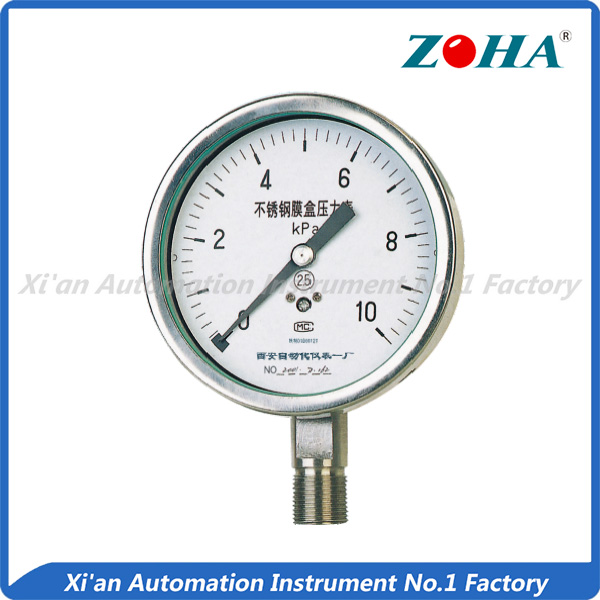

stainless steel capsule pressure gauge

stainless steel capsule pressure gauge

If you have any questions, please contact us!
Contact Us

◎Applications

This gauge is designed on the base of normal capsule pressure gauge, which has the anticorrosive character. The material of the measuring system and outer case are stainless steel. It is suited for measuring the micro-pressure or vacuum of all kinds of gases in technological process which has high requirement for the corrosion. And also can be used in boiler ventilation, gas tube and fuel setting and so on.

◎Structure

This gauge is made up of the measuring system (involve connector, capsule), gear setting, pointer setting, and outer case. Measuring system and outer case are both made of stainless steel, adopt the air-proof type structure to avoid being dirtied.
When the pressure of the medium act on the theca case, and make it move, with the help of the stick and magnified, the pointor point out on the dial.

◎Main Technology Data

Diameter&code

100mm (YE-100B) 150mm (YE-150B)

Measuring Range
(KPa)

0~4 -4~0 -2~2
0~6 -6~0 -3~3
0~10 -10~0 -5~5
0~16 -16~0 -8~8
0~25 -25~0 -12~12
0~40 -40~0 -20~20
0~60

Accuracy Class

cl.2.5

Mounting Type

Bottom

Thread

M20*1.5 G1/2 NPT1/2 (We can accept all kinds of thread from customers)

Material

All stainless steel

Shock resistance
grade

V.H.3

ENV Temp and
Relative Humidity

-25~55°C, ≤80%

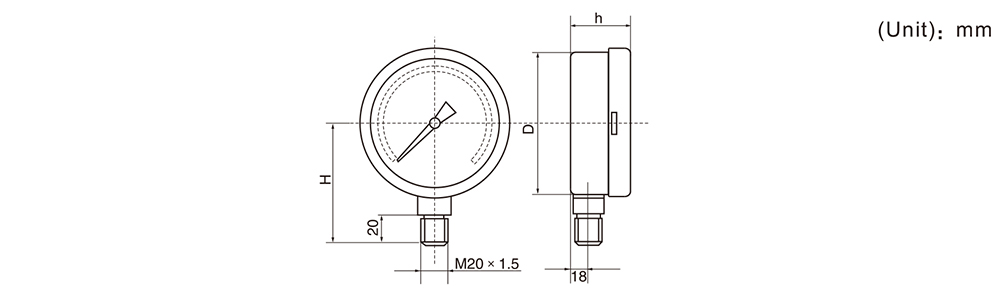

◎Overall Dimensions

Type
D H h
YE-100B
100 90 50
YE-150B
150 120 44
