◎Application description

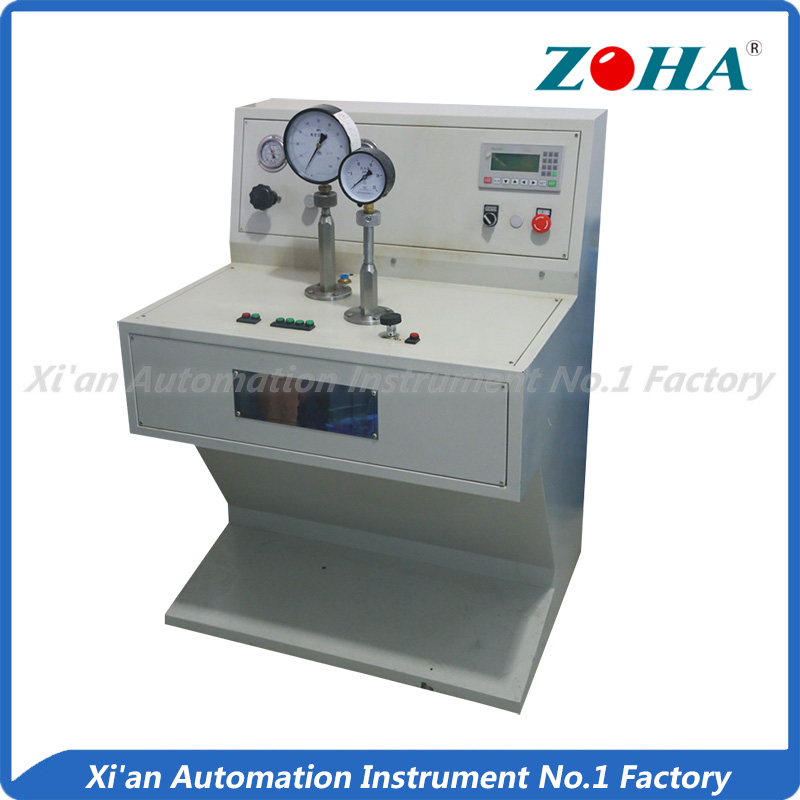

SJT-03 Mesohigh pressure calibration console is the latest research and development of high-end product. This equipment is widely used in adjusting, checking, debugging process. It has the character of easy operation, high accuracy of pressure control, high stability, low noise, no oil contamination and so on. It is the ideal product for pressure instruments produce enterprises, measurement institutions and pressure instruments using institutions.
◎Main technology data
Working medium: transformer oil or Clearwater
Pressure range:（0-60）MPa
The highest pressure: 65MPa
Design pressure: 70MPa
Working air supply: pure compressed air
Working voltage: AC220V/50Hz
◎Specification
|
Type |
Measuring range |
Drive air supply |
Using medium |
|
SJT-03A |
(0.1-0.6)MPa |
≥0.8MPa |
Air |
|
SJT-03B |
(0.1-2.5)MPa |
≥2.7MPa |
Air |
|
SJT-03C |
(1-2.5)MPa |
≥2.7MPa |
Air |
|
SJT-04A |
(0.4-2.5)MPa |
≥0.8MPa |
Transformer oil |
|
SJT-04B |
(1-2.5)MPa |
≥0.8MPa |
Transformer oil |
|
SJT-04C |
(4-16)MPa |
≥0.8MPa |
Transformer oil |
|
SJT-04D |
(25-60)MPa |
≥0.8MPa |
Transformer oil |
