◎Applications

The ammonia pressure gauge can be used in measuring the pressure of medium which has no corrosion function to all of the carbon steel, stainless steel and soldering tin.
Mainly used in measuring the pressure of the liquid or gas of the ammonia which will be concerned in fertilization manufacture and the refrigeration equipment.

◎Specifications

Type

YA-100 YA-150

Diameter

100mm 150mm

Measuring Range

- 0.1~0~60MPa (As customers requirements)

Pressure unit

Mpa psi bar kg/cm2 etc.

Accuracy class

cl.1.5

Structure

Connector, Bourdon tube, Movement, Indicating device, case

Thread

M20*1.5 G1/2 NPT1/2

 (We can accept all kinds of thread from customers)

ENV Temp and
Relative Humidity

- 40~70°C≤90%

Temp affect

ENV Temp deviate from 20±5°C,
additional error ≤0.4%/10°C

Mounting type

Bottom/Radial

Weight

YA-100: 0.6kg YA-150: 0.9kg

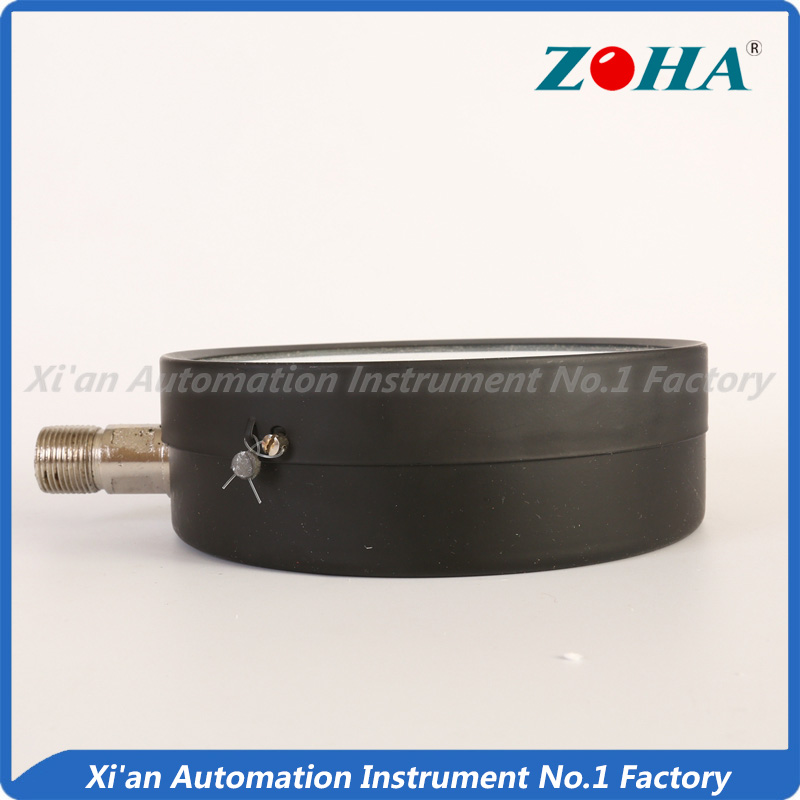

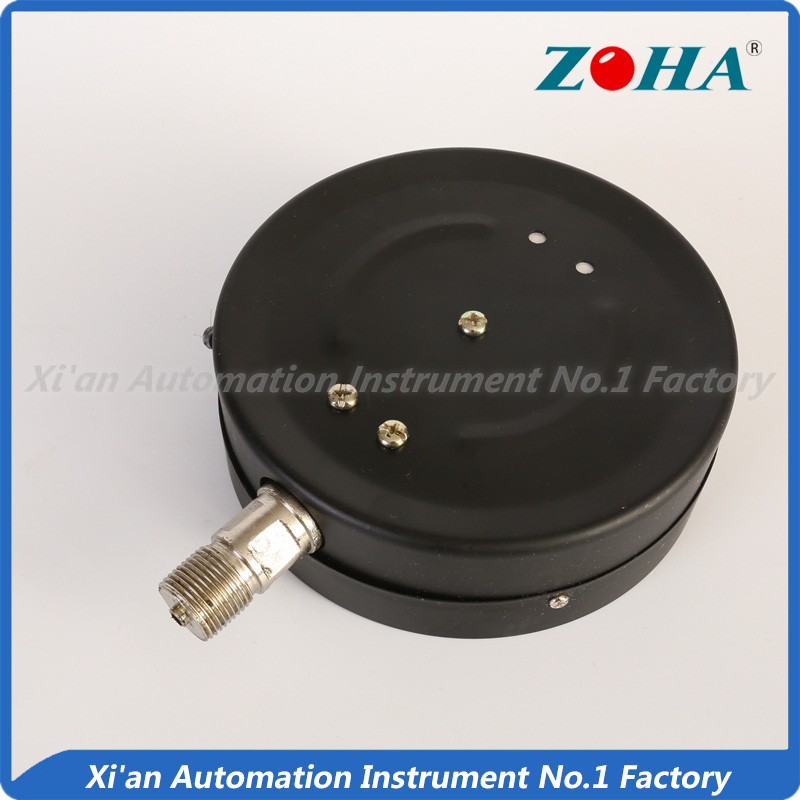

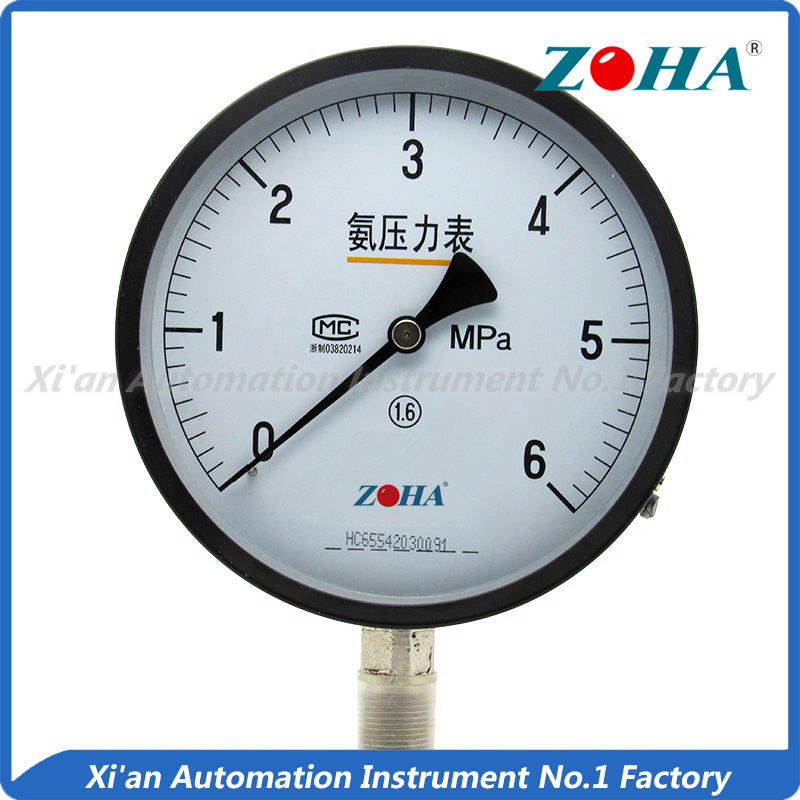

  • Product pictures
