◎Application description

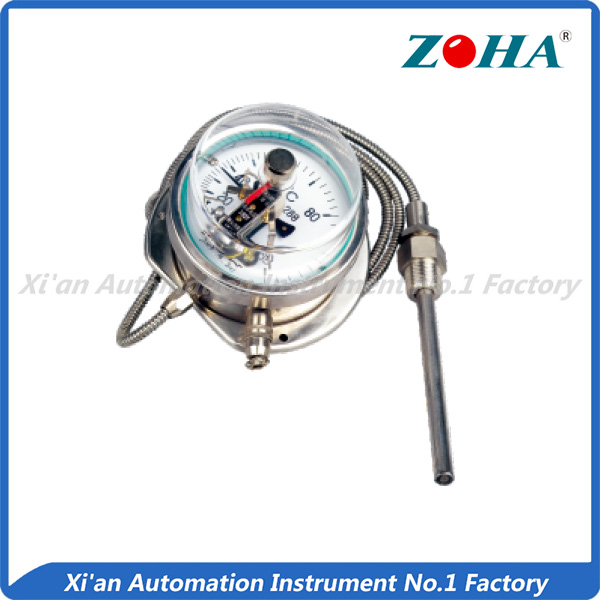

This gauge is suited for measuring the medium temperature which has no corrosion with copper or copper alloys, and send out electrical message when the temperature reach or over the fixed value. this gauge also used as circuit switch in temperature adjust system. Anti-corrosive type adopt the stainless steel material which is suited for the liquids or gases which has corrosion.
◎Main Technology Data

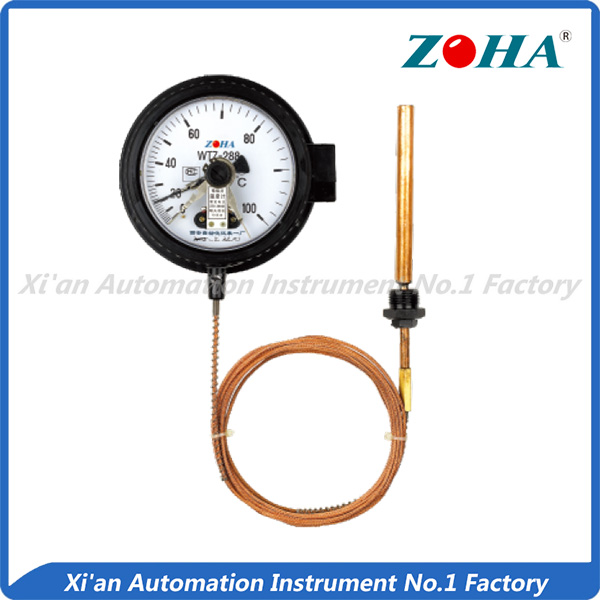

| Product Name | Electrical contact capillary pressure thermometer |

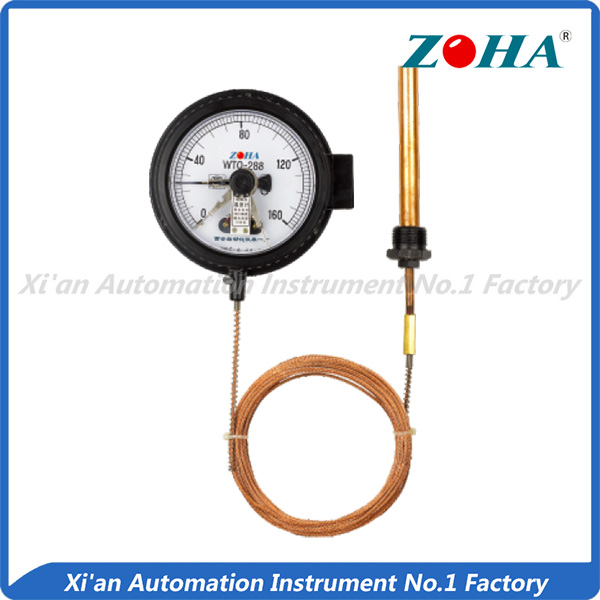

| Model | WTZ-288 WTQ-288 |
| Measuring range | WTZ-288:-20~+160°C WTQ-288:-20~+600°C |
| Accuracy | cl.1.5 cl.2.5 |
| Diameter | Φ150 Φ100 |
| Thread | WTZ-288:M27×2 WTQ-288:M33×2 |
| View angle | Radial |
| Case material | Bakelite or st.st. |
