◎Application description

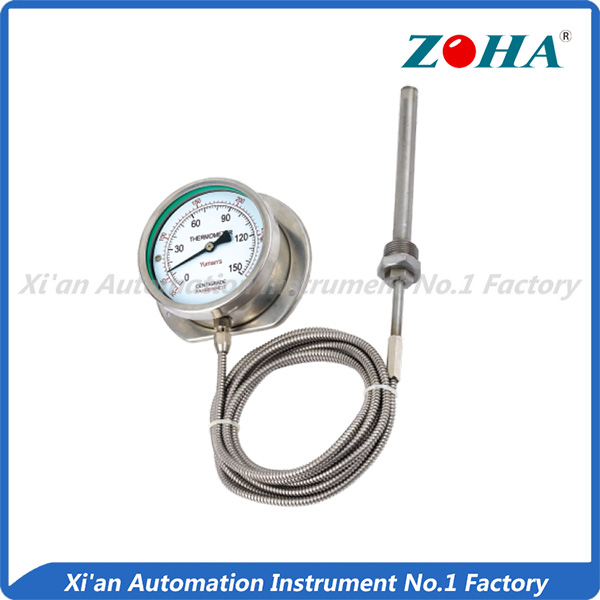

Capillary pressure thermometer is suited for measuring all media which has no corrosion for copper in industry area, if the media has corrosion, you should select anti-corrosion type, this gauge is widely used in machinery, textile, chemical, medicine, foodstuffs to temperature measuring and controlling. Anti-corrosive type adopt the stainless steel material which is suited for the liquids or gases which is corrosive.
◎Main Technology Data
| Type | Function |
Overall dia (mm) |
Sight | Case material | |

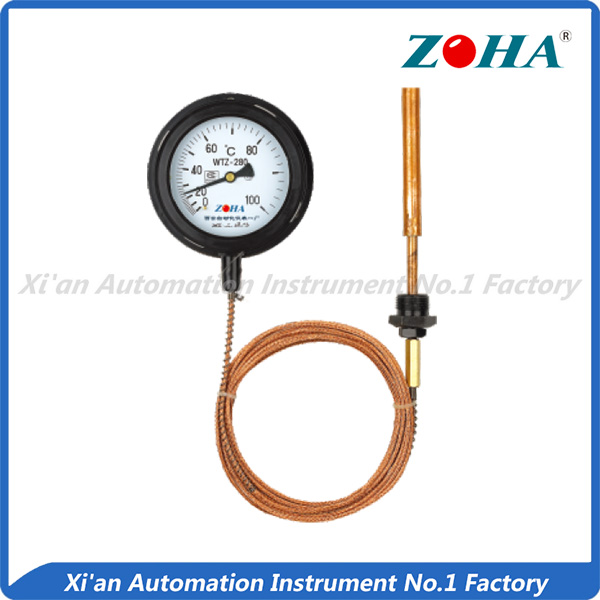

| WTZ-280 | Indicating | Φ100 | Φ150 | Radial | Bakelite St.st |

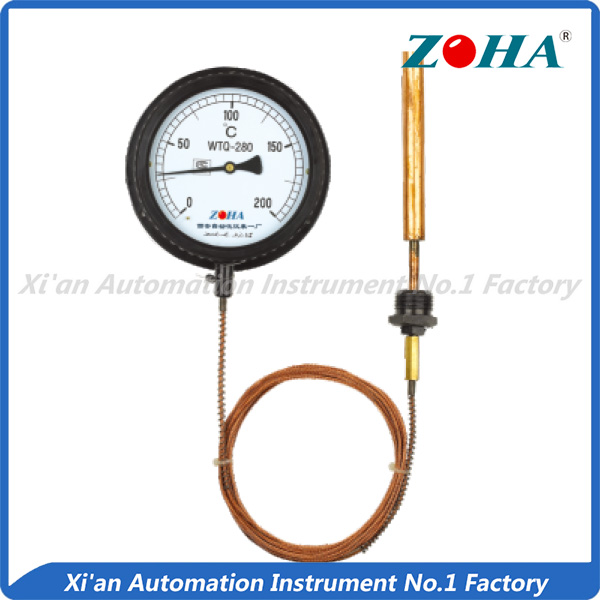

| WTQ-280 | |||||
◎Measuring Range
|
Measuring Range (℃) |
WTZ-280 | -20~60,0~100,20~120,60~160 | |
| WTQ-280 | -40~60,0~50,0~120,0~160,0~200,0~250,0~300,0~400,0~500,0~600 | ||
| Stick length (mm) | 150~280 ( Tail length≤12M)，200~330 (Tail length＞12M) | ||
| Stick material | Φ8, Φ10, Φ13, Φ14 copper pipe，Φ8, Φ10, Φ13, Φ14 st. st. pipe | ||
| Capillary material | copper capillary/PVC capillary/st.st.capillary | ||
| Installation | WTZ-280 | M27×2 Movable male thread | Material：copper,iron, st.st. |
| WTQ-280 | M33×2 Movable male thread | ||
| Tail length | 1M~20M ＞20M need special processing | ||
| Technology data | Accuracy: ±1.5%, ±2.5%, contacts capacity: 220V/1A ( Non-inductive load 10VA) | ||
| Installation size | 4"~Φ118mm 6"~Φ158mm | ||
◎Overall Dimensions
|
WTQ -280 |
A | B | C | D | E |
| Φ100 | 117 | 20 | 51 | 130 | 118 |
| Φ150 | 157 | 20 | 51 | 172 | 160 |
