YE-63 Capsule Pressure gauge

YE-63 Capsule Pressure gauge

If you have any questions, please contact us!
Contact Us

◎Applications

YE-63 Capsule Pressure gauge adopt capsule as the sensitivity part, can measure the micro-pressure or negative pressure of the gases which have no corrosion function to the copper alloys and have no explosion. And it is widely used in boiler ventilation, gas tube and fuel setting and so on.

◎Specifications

Dial Diameter

63mm

Measuring Range

Between -40~0~60KPa

Pressure Unit

kpa mbar mmHg mmH2O etc.

(single or double scale both available)

Accuracy Class

±2.5%

Case Material

Steel

Capsule

Brass

Connector

Brass

Mounting Type

Bottom

Pointer

Aluminum black

Thread

G1/4 NPT1/4 etc.
(We can accept all kinds of thread from customers)

Environment Temp
and Humidity

-40~70°C≤85%

Using Area

Boiler ventilation systems, gas pipes, incendiary devices and other similar equipment, OEM

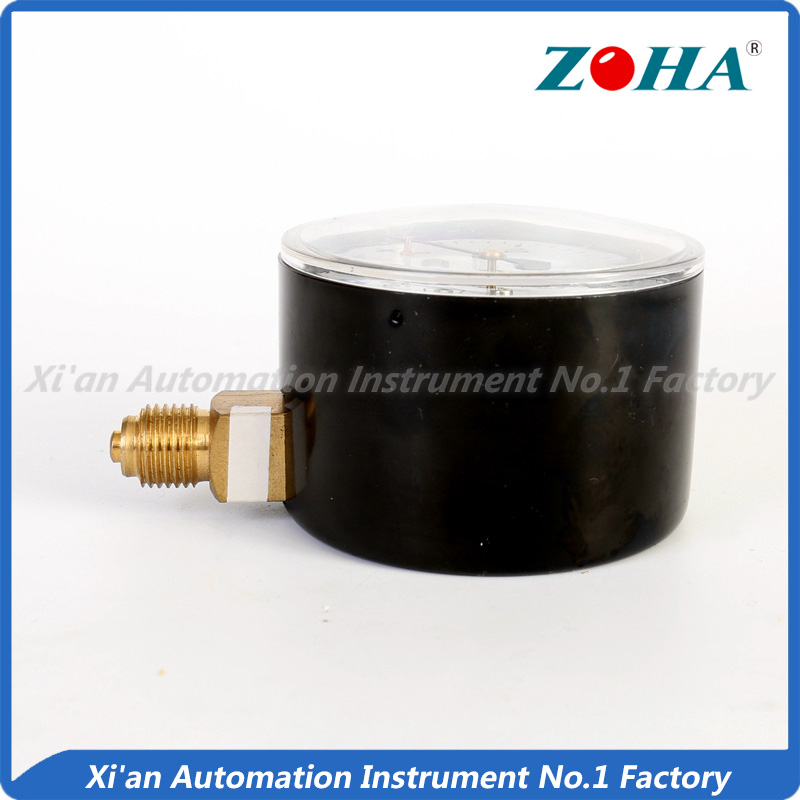

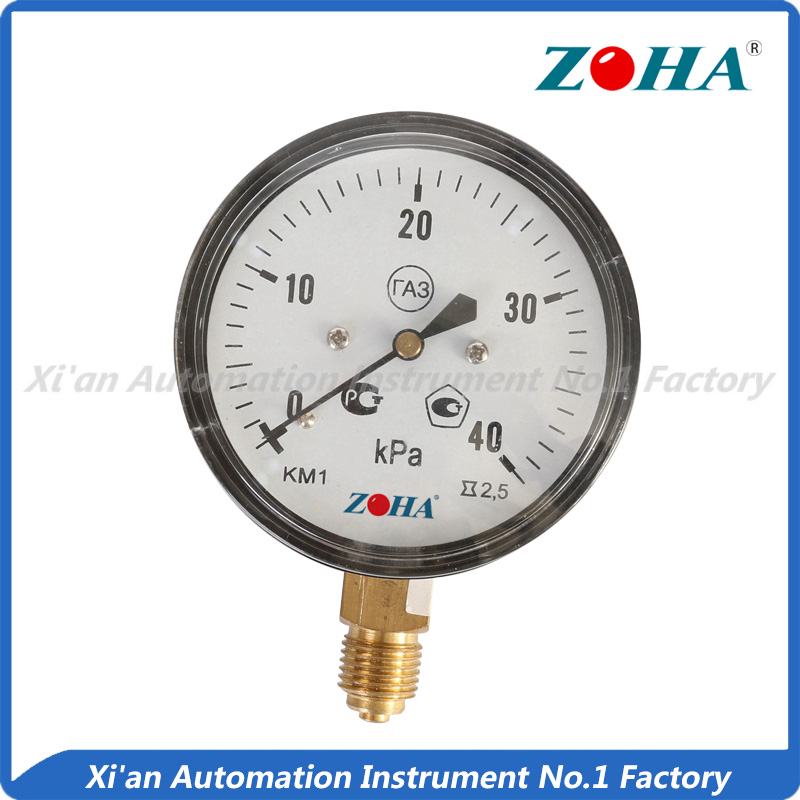

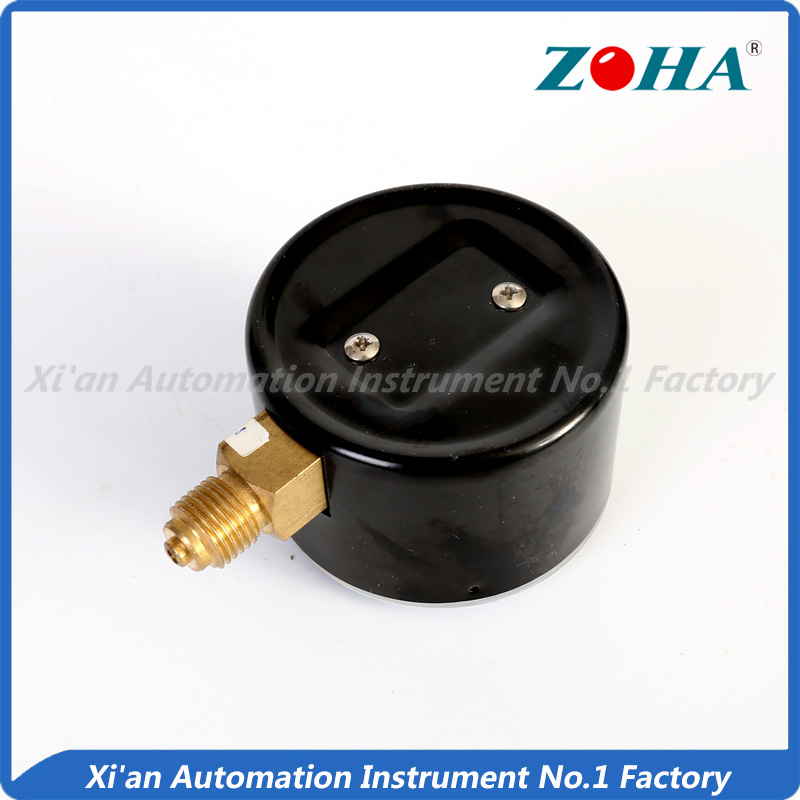

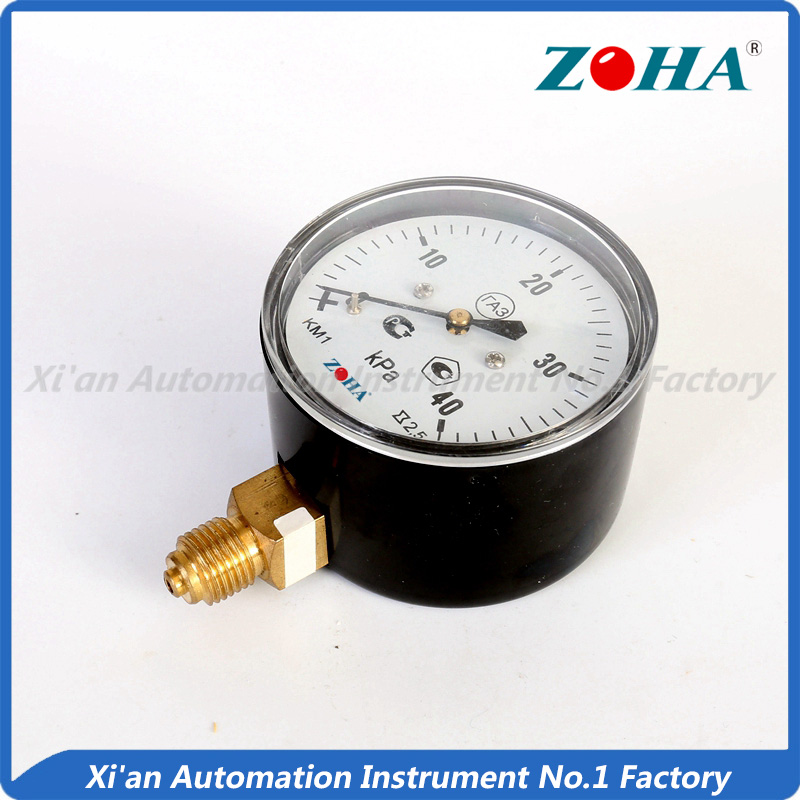

  • Product pictures
