Thermo-pressure gauge

Thermo-pressure gauge

If you have any questions, please contact us!
Contact Us

◎Application description

Combination pressure and temperature gauge can indicate pressure and temperature by the internally sensor tube. It has a wide market and multipurpose.

Diameter 80mm 100mm
Case Black steel
Ring Nickel plated steel or chrome plated steel
Measuring range 0-4Mpa&0-160°C (between this range, as customers requirements.)
Measuring system Brass-copper alloy
Connection thread Female-M18x1 Male-G1/2 (other thread is allowed)
Mounting type Bottom/ Back
Stem length 46mm 64mm 100mm
Lens Glass
Accuracy 2.5%

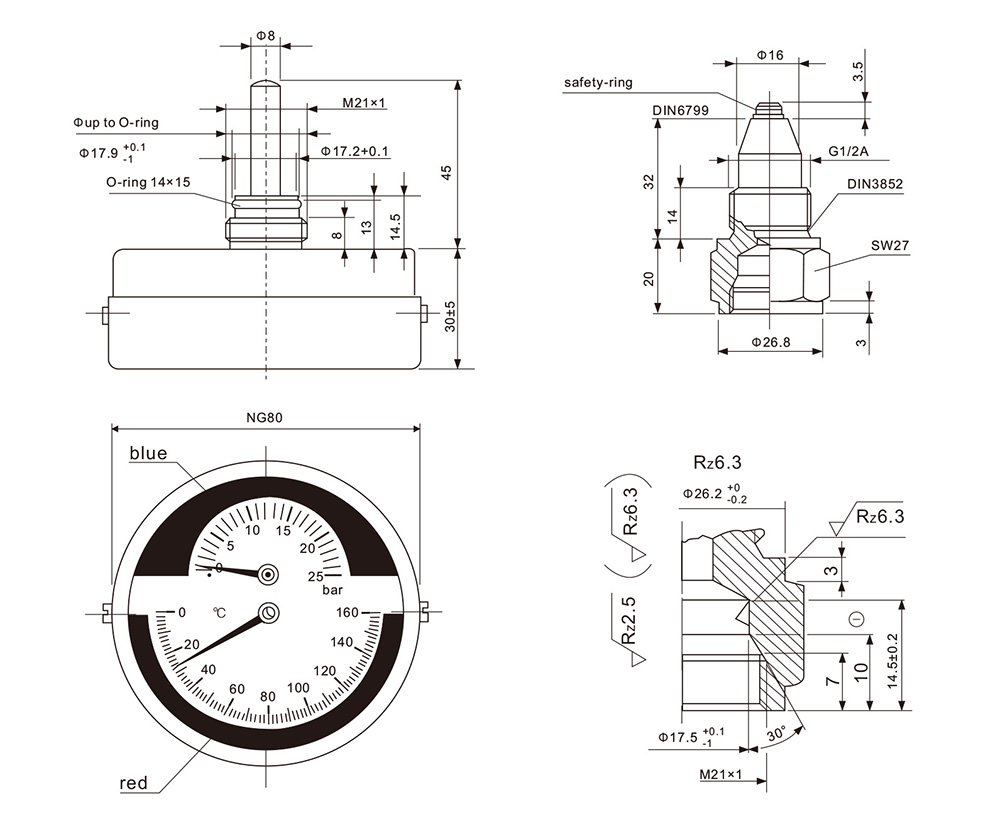

◎Overall Dimensions

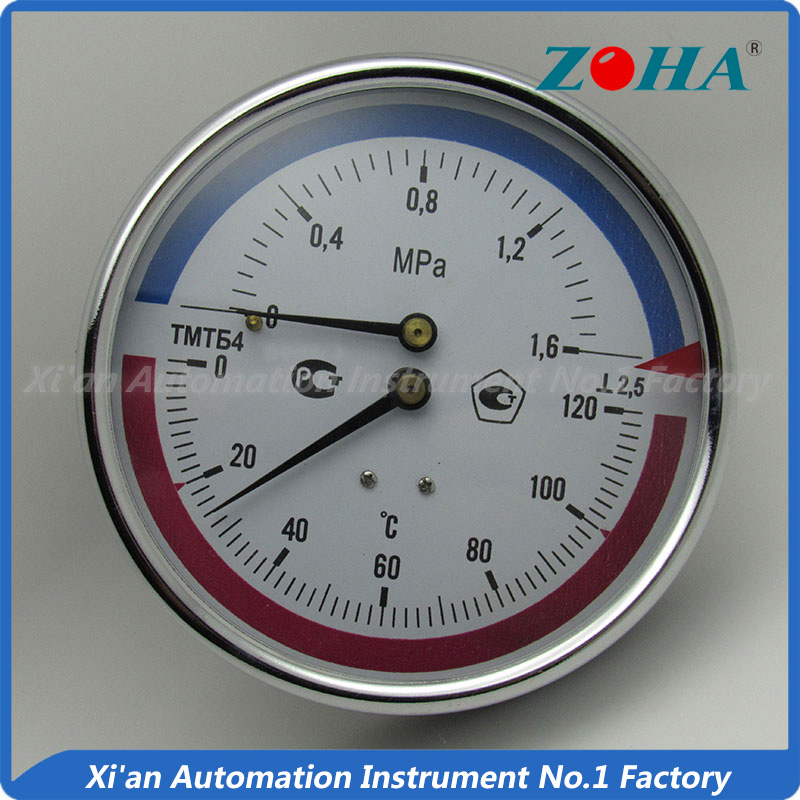

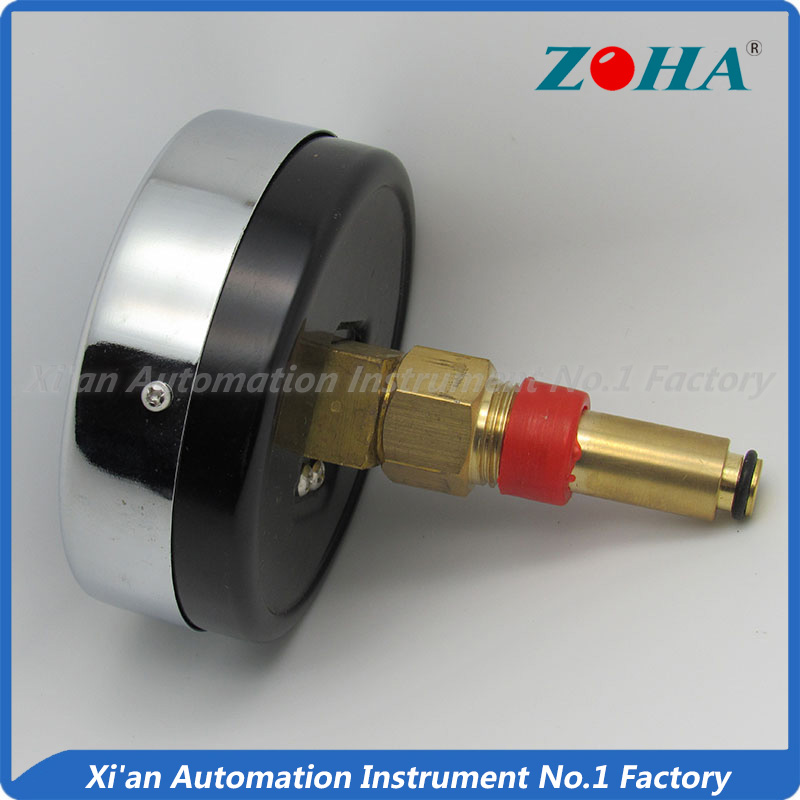

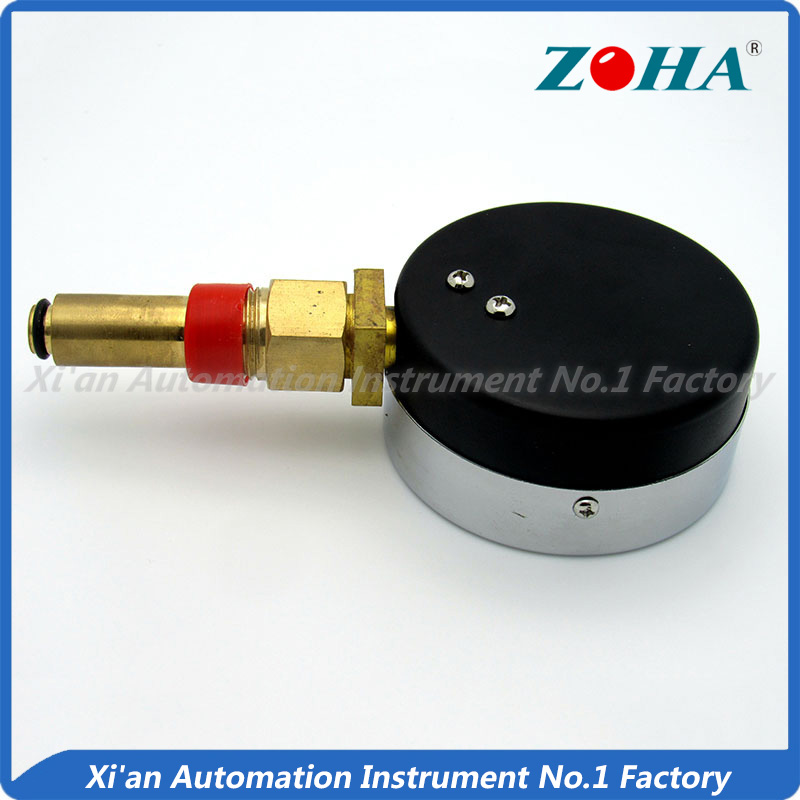

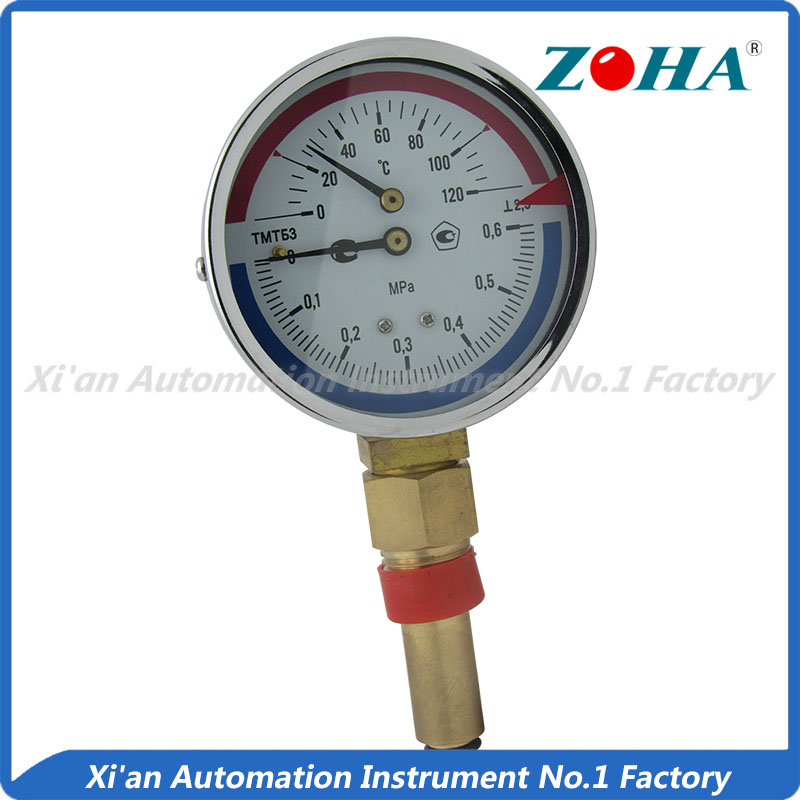

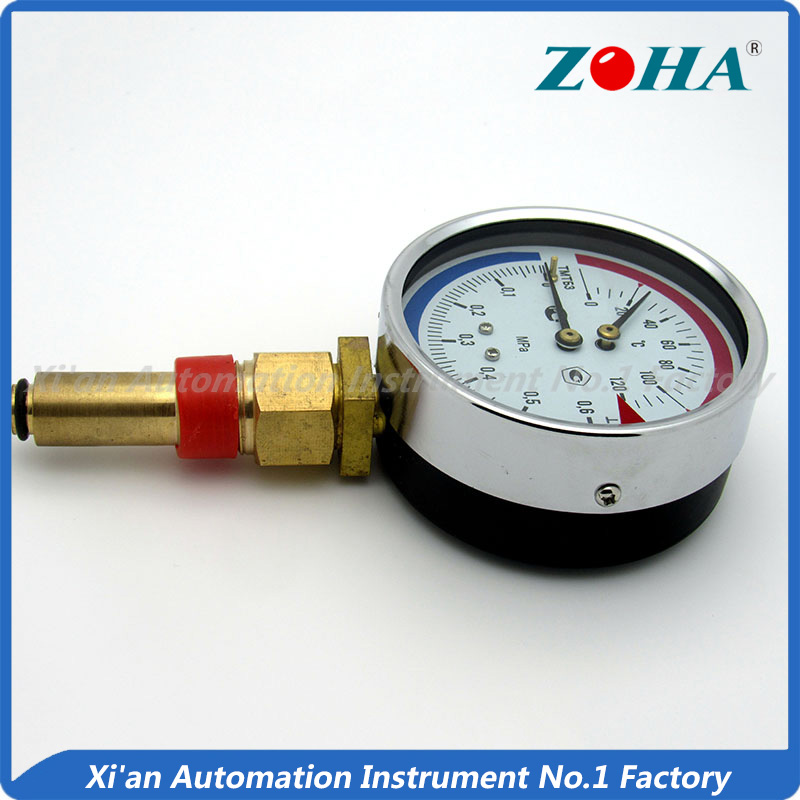

  • Product pictures
