◎Application Description

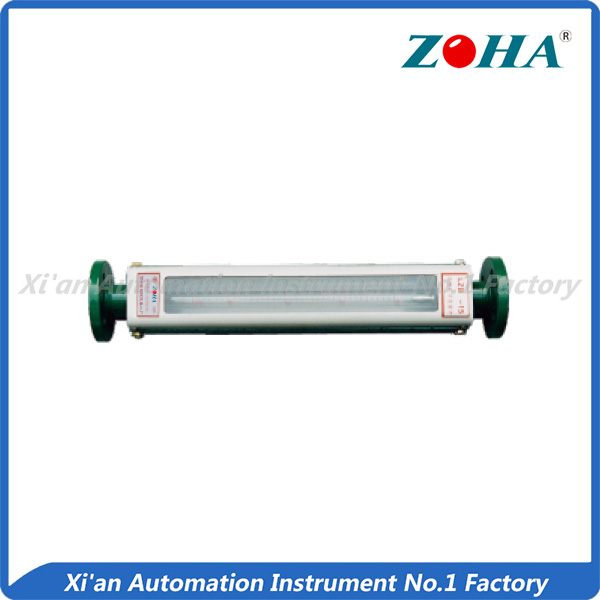

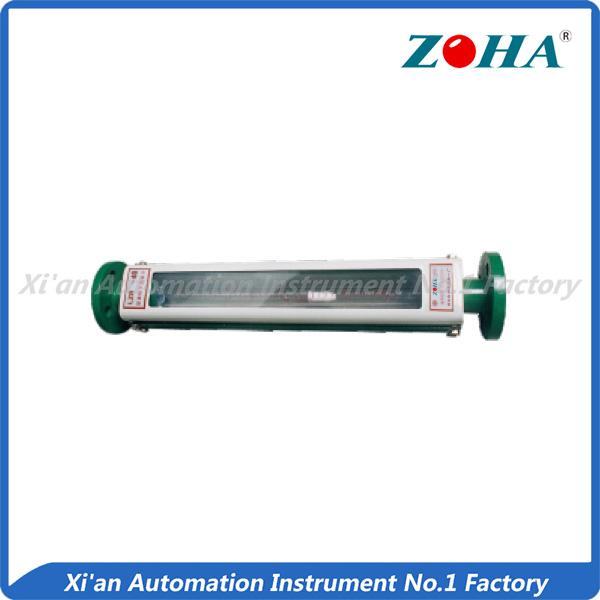

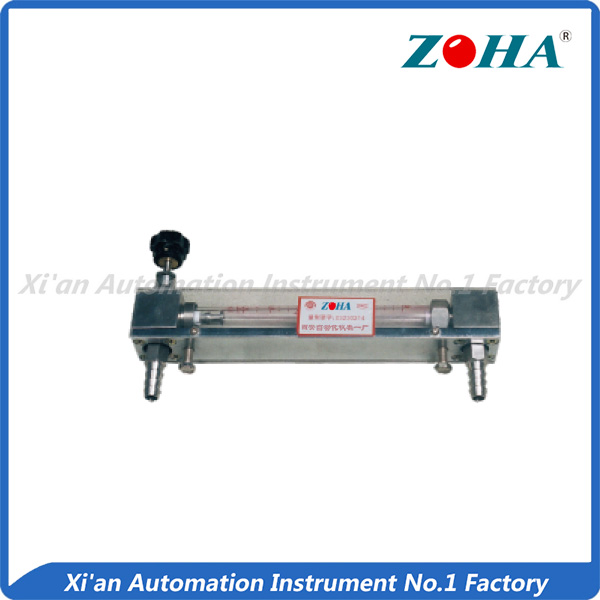

LZB glass rotor flowmeter with a clear wimble tube, can measure instant flow of the gas or liquid in the closing tube,re ad the media flowing directly,w idely used in chemical,o il light industry,m edical industry,fe rtilizer,fo odstuffs,p aper making,e nvironmental protection,fi ber and science.
For the chemical DPT requirement, not only to keep origin product character, but also to develop new type organic glass rotor flowmeter and metal rotor flowmeter used in high pressure conditions,a dded anti-corrosion material over the base,th e customers can select by requirement freely.If you have a special requirement,w e can supply all kinds of non-standard design,a nd make it out.
◎Main Technology Data
|
Diameter(mm) |
Mode |
Flow range |
Accuracy |
Pressure bearing |
Medium |
Remarks |
||
|
Liquid(L/h) |
Gas(L/h) |
Temperature |
Pressure |
|||||
|
4 |
LZB - 4 |
1-10 1.6-16 |
16-160 25-250 |
2.5 |
≤1.5 |
-20~120 |
≤1 |
|
|
6 |
LZB - 6 |
2.5-25 4-40 |
40-400 60-600 |
|||||
|
10 |
LZB - 10 |
6-60 10-100 |
100-1000 160-1600 |
|||||
|
15 |
LZB - 15 |
16-160 25-250 |
250-2500 400-4000 |
1.5 |
≤0.9 |
≤0.6 |
||
|
25 |
LZB - 25 |
40-400 60-600 |
1000-10000 1600-16000 |
With |
||||
|
40 |
LZB - 40 |
160-1600 250-2500 |
4000-40000 6000-60000 |
≤0.6 |
≤0.4 |
|||
|
50 |
LZB - 50 |
400-4000 600-6000 |
10000-100000 16000-160000 |
|||||
|
80 |
LZB - 80 |
1000-10000 1600-16000 |
50000-250000 80000-400000 |
|||||
|
100 |
LZB - 100 |
5000-25000 8000-40000 |
120000-600000 200000-1000000 |
|||||
