◎Application Description

It applies to shipping, freezing equipment, or other industrial equipment. If the product is combined with actuating mechanism, it can conduct the two-location type to control to the temperature of gas, steam or liquid.

Type YWK-50 product is the normal type with bakelite case. Type YWK-50-C product is the waterproof type with cast aluminum case. Both of them can stand for the mechanical vibration of GB5010-35.

◎Main Technology Data

No .

Control range
Mpa

Differential range
Mpa

Setting value error
Mpa

Iterative error
Mpa

Note

1

-0.1-0

0.0065-0.026

±0.004

0.002

Same as 6~11



2

0-0.1

0.006-0.028

±0.004

0002

Medium controlled has no
corrosive influence on
welding materials which
made up of brass or bronze
or lead-tin solder

3

0-0.2

0.01-0.08

±0.008

0..004

4

0-0.3

0.025-0.1

±0.012

0.006

5

0-0.5

0.03-0.1

±0.02

0.01

6

0-0.8

0.07-0.25

±0.032

0.016

Medium controlled has no
corrosive influence on
welding materials which
made up of brass or stainless
steel or lead-tin solder



7

0-1

0.07-0.25

±0.04

0.02

8

0-1.5

0.1-0.28

±0.06

0.03

9

0-2

0.12-0.3

±0.08

0.04

10

0-31

0.15-0.5

±0.12

0.06

11

0-4

0.25-0.6

±0.16

0.08

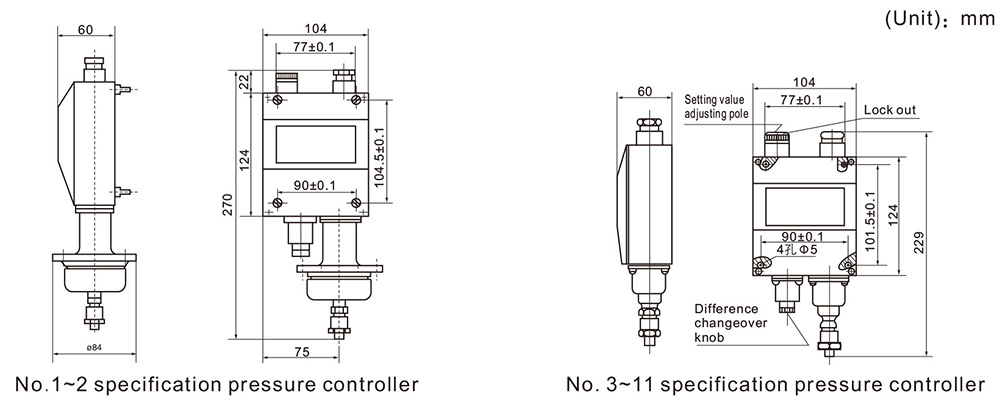

◎Overall Dimensions

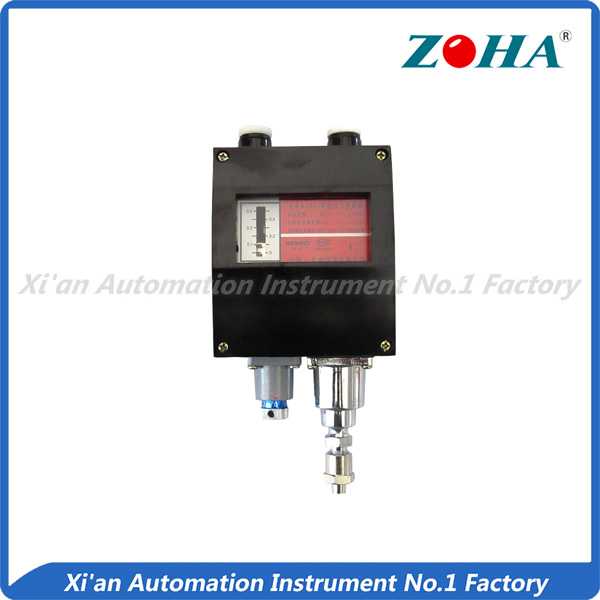

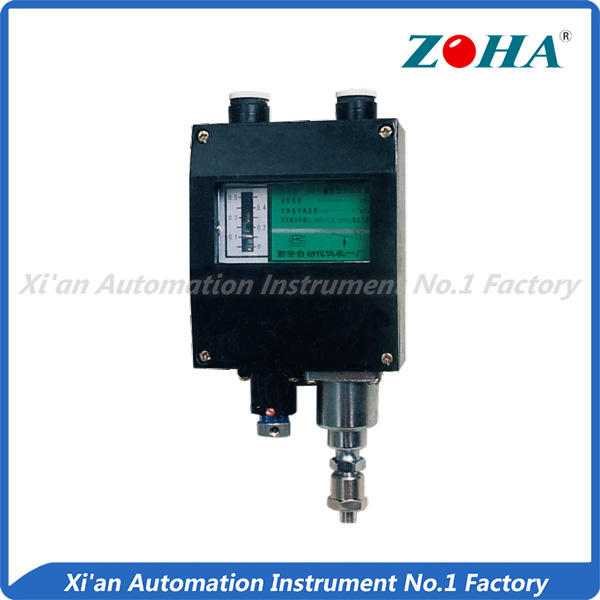

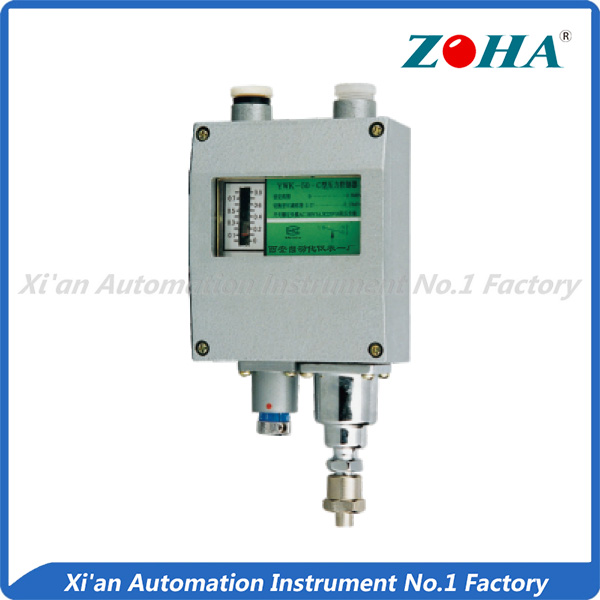

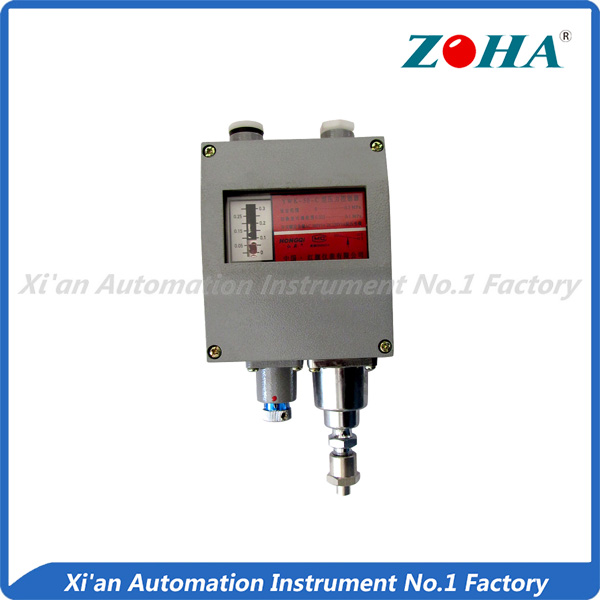

  • Product pictures
