◎Application description

Shock resistance precision pressure gauge is mainly applied to check industry-used common pressure gauge and also can accurately measure the pressure and vacuum pressure of media that is non-corrosive,noncrystalline and non-condensing to copper alloy and copper.It is widely used in industry production process, accurate measurement and scientific laboratory.

Assorted buffer device and damping liquid which is filled inside the shock resistance precision pressure gauge contributes to good shock proof.If the gauge doesn't return to zero slightly after using for a period of time, please adjust the zero-setting and make the indicator return to zero while accuracy won’t be affected.

Accuracy class: ±0.4 % ±0.6 %

Measuring range:0-0.1~0-60MPa, 0.-1-0~-0.1-2.4MPa

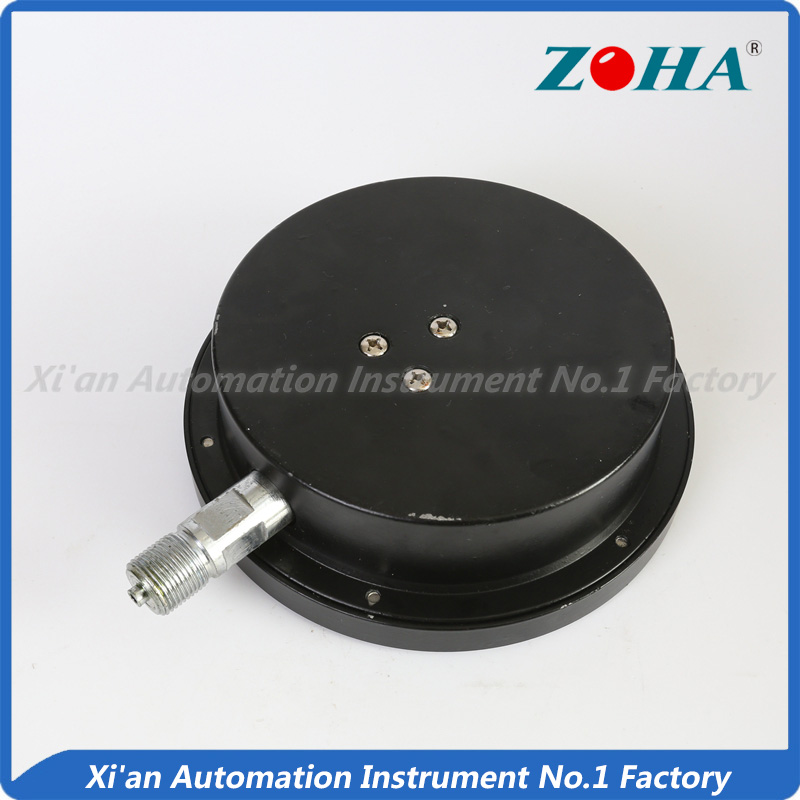

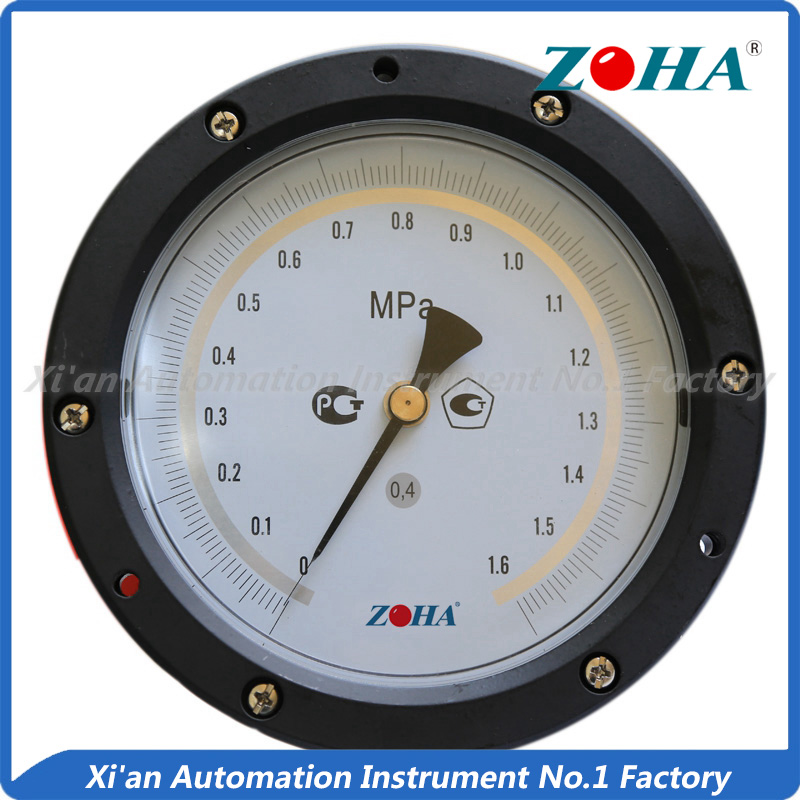

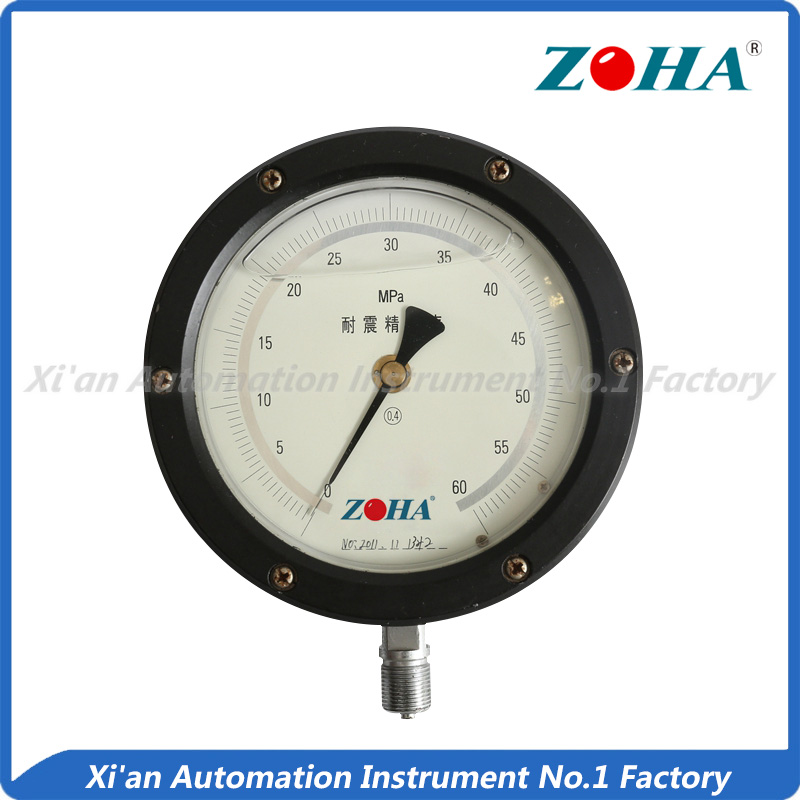

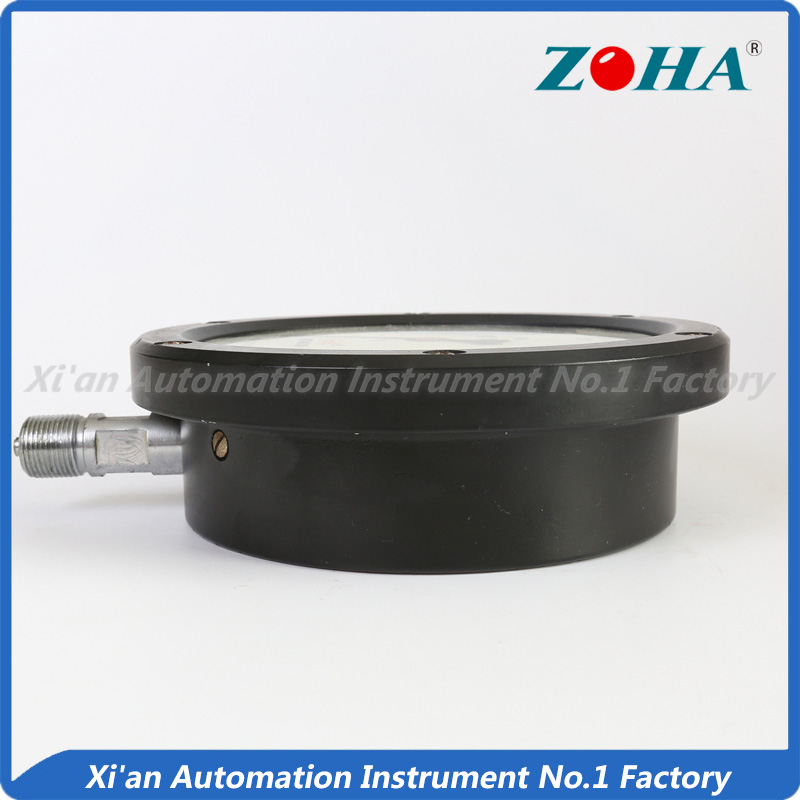

  • Product pictures
