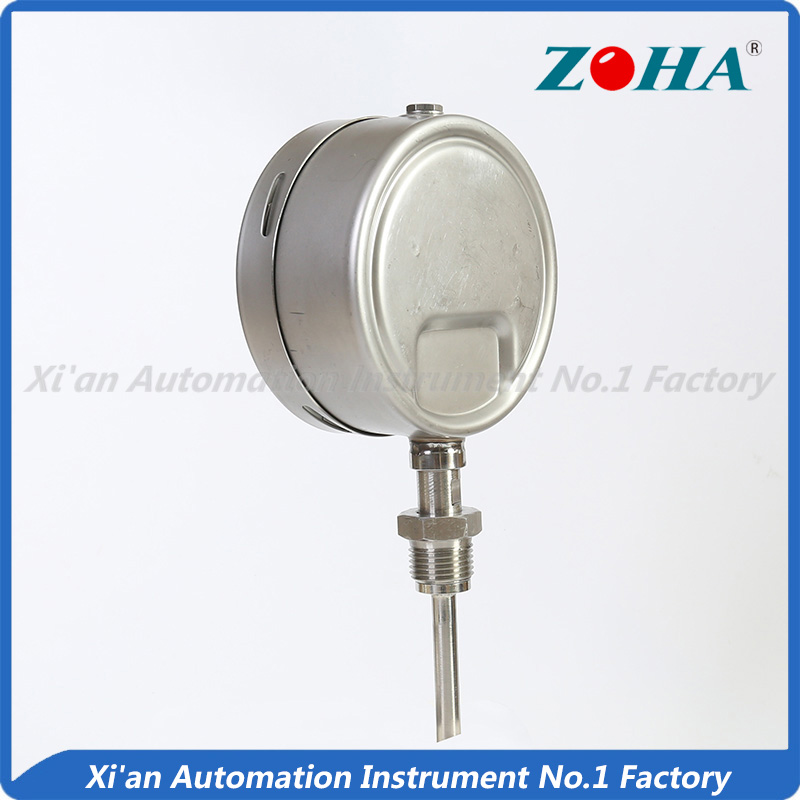

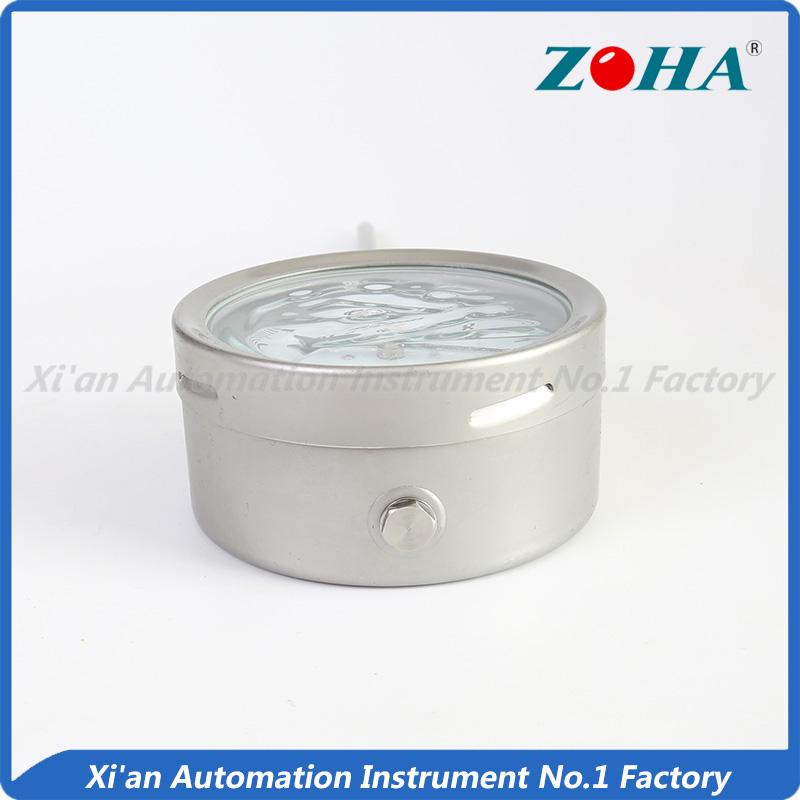

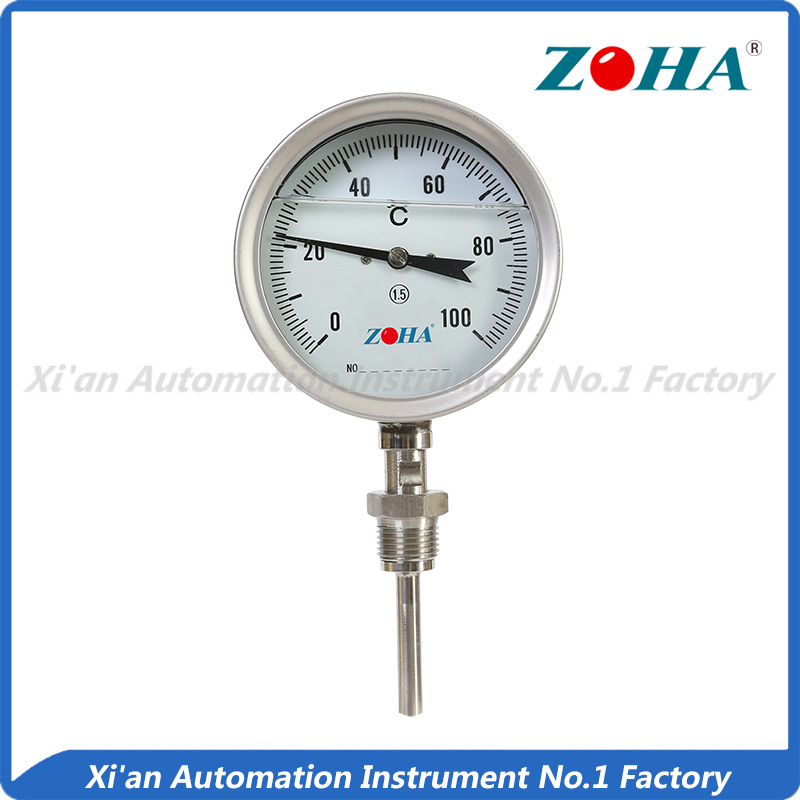

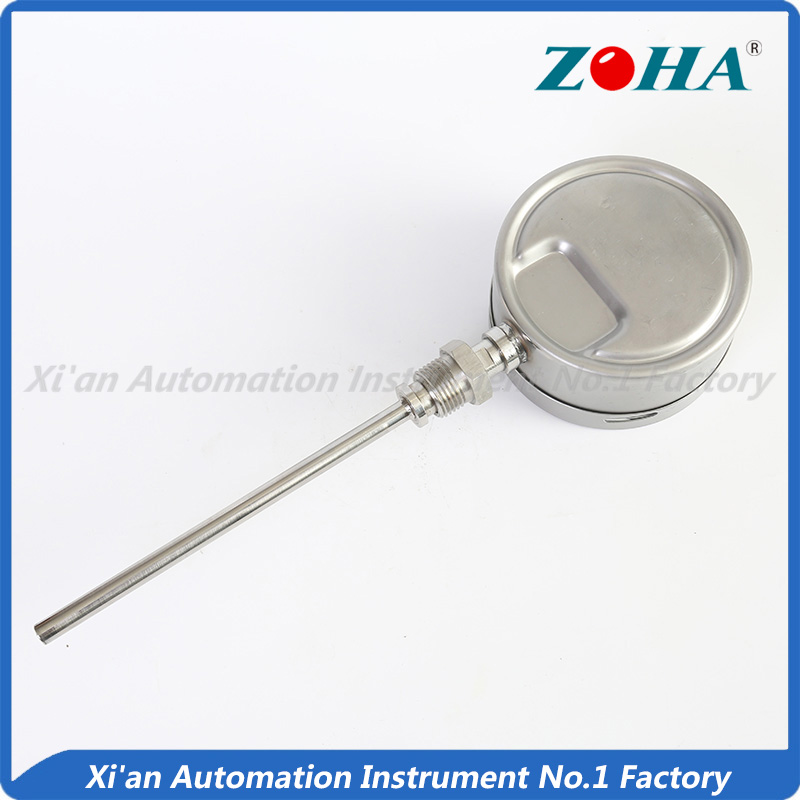

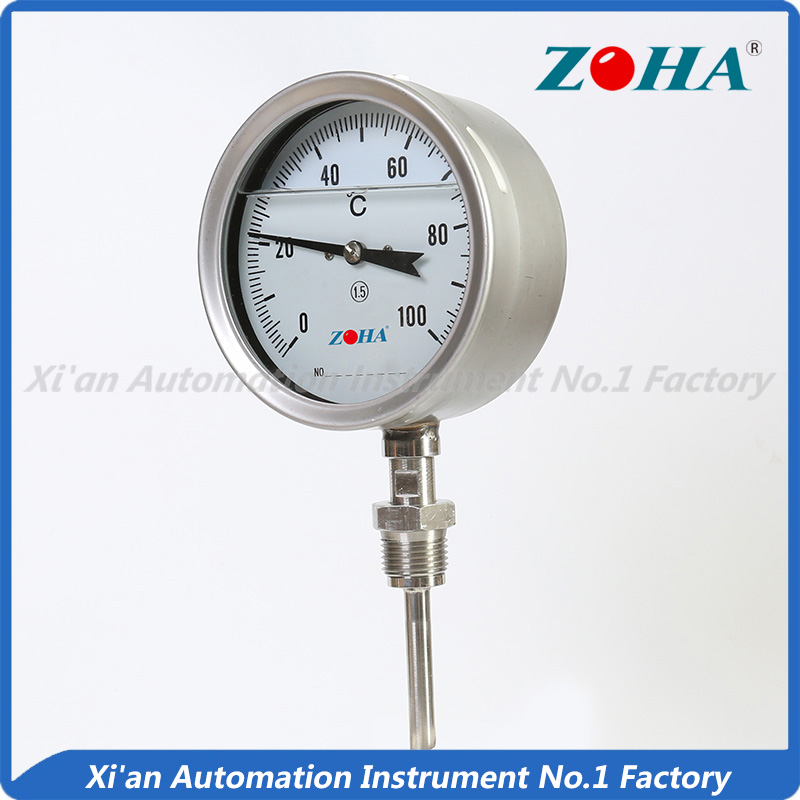

SS Shock resistance bi-metal thermometer---Bottom Mounting

  • Product Details

◎Application description

Shock resistance bi-metal thermometer is a kind of on-site measurement instrument, which could read the temperature of the measuring medium from the dial directly. It is widely used in oil industry, chemical industry , mine, war industry, pharmacy, food industry, etc. to measure and control the temperature of vibrated gas and liquid.

It has advantages of rapid-response, easy reading, shock resistance, mercury-free, stability, long life, high protection level of IP65.

◎Specifications

Type

WSSN63-BF WSSN100-BF WSSN150-BF

Measuring range

-20-80℃;-40-80℃;0-50℃;

0-100℃;0-150℃;0-160℃

Diameter

63mm 100mm 150mm

Stem length

64mm 80mm 100mm 150mm

Pressure unit

Fahrenheit or centigrade degree

Accuracy class

cl.1.5 cl.2.5

Case

stainless steel

Stem

stainless steel

Inner construction

stainless steel

Mounting type

Bottom (back,universal is available)

Thread

G1/2; M27*2 etc.
