◎Applications

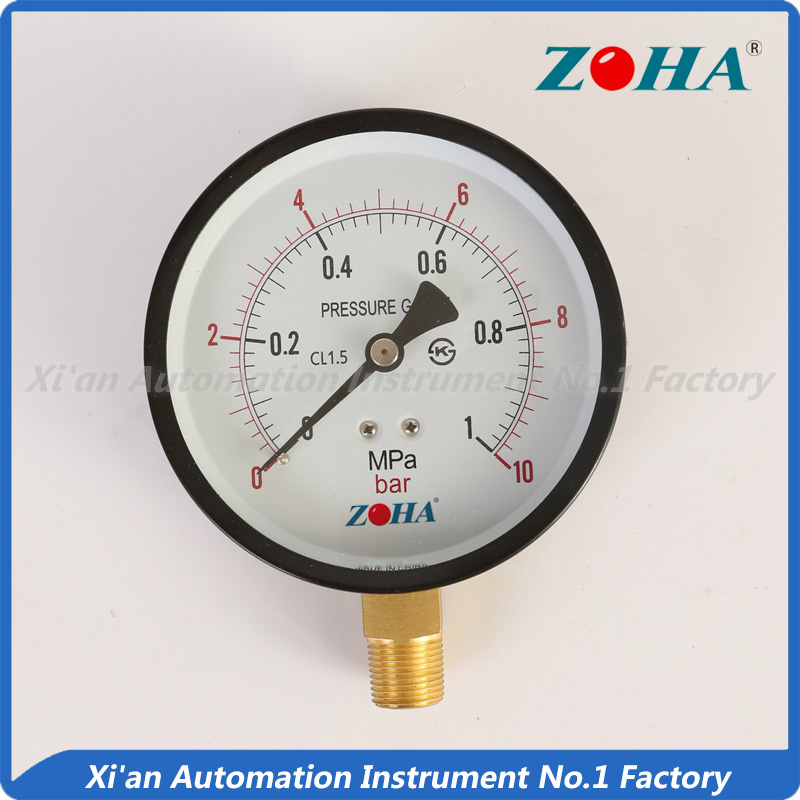

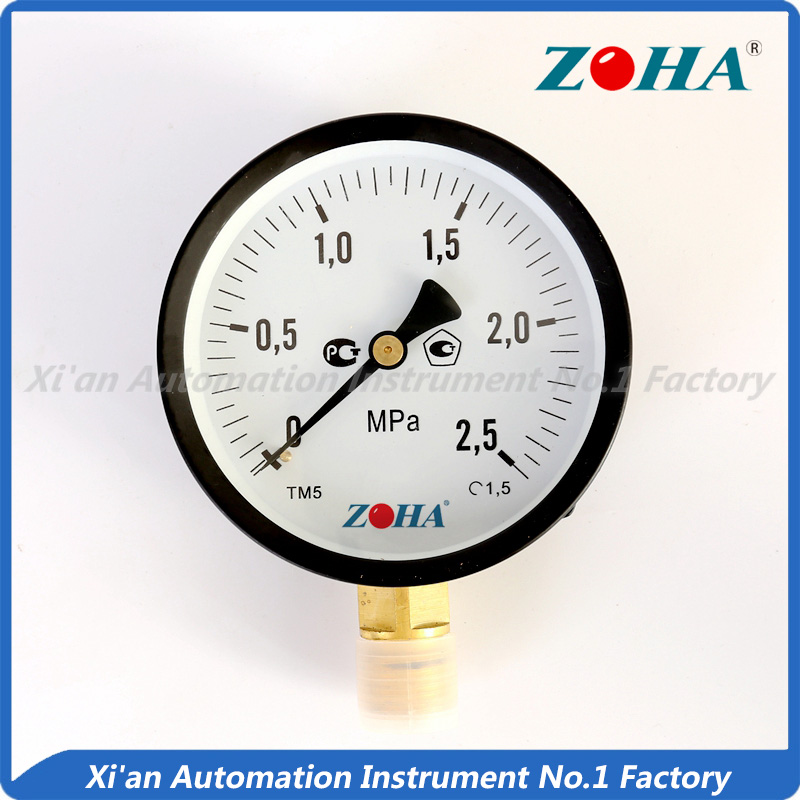

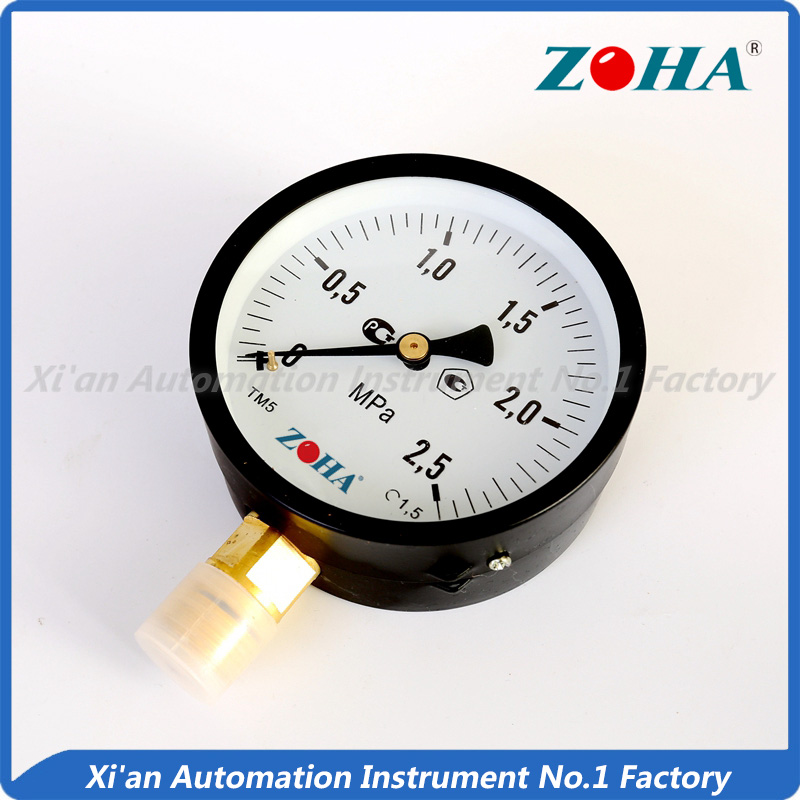

The economy pressure gauge is well suited for measuring gases or liquids which will neither
explode, nor crystallize, nor corrode copper or copper alloys. We have snap-in plastic lens type, screw lens type, chromed ring type, press-in lens type, wika bayonet type for your choice.It is directly bottom mounting.
◎Specifications
|
Dial Diameter |
40mm 50mm 60mm 63mm 100mm 150mm 200mm 250mm |
|
Measuring Range |
Between -0.1~0~100MPa |
|
Pressure Unit |
Mpa psi bar kg/cm2 etc. (single or double scale both available) |
|
Accuracy Class |
±2.5%±1.5% |
|
Case Material |
Steel or Plastic |
|
Movement |
Brass with steel |
|
Bourdon Tube |
Phosphor bronze |
|
Connector |
Brass |
|
Mounting Type |
Bottom |
|
Pointer |
Aluminum black |
|
Over-pressure |
30% |
|
Thread |
M20*1.5 G1/2 NPT1/2 G1/4 NPT1/4 G1/8 NPT1/8 etc. (We can accept all kinds of thread from customers) |
|
Environment Temp and Humidity |
-40~70°C≤85% |
|
Using Area |
Plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors,OEM |
